EBD 44 Ext Escape
Verified by manufacturer 4 months ago
Single door - Non Fire Rated
Single door - Non Fire Rated
Steel escape door.
Application
Suitable for interior applications.
Description
Escape doors are usually the designated safe exit, the means of escape from a room or area of a building. They can be easily opened via a panic bar or push pad in the event of an emergency.
General information
Color | Other Guidance for specification option: Available in the full RAL colour range. |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Carbon steel doorsets
Configuration | Single leaf, left hand hung.Single leaf, right hand hung. |
Doorset size | Guidance for specification option:
|
Performance | |
Fire resistance | |
Integrity | Not required. |
Smoke leakage | Not required.To EN 1634-3:2004, Sa. |
Acoustic performance | Not required.To BS EN ISO 10140-2:2010, sound reduction index up to Rw 35 dB. |
Frame | |
Material | 1.2 mm galvanized steel. |
Threshold | EBD standard threshold.Drop seal.Aluminum threshold.Without threshold.Raindrip threshold. |
Finish | |
Coating | Powder-coated. |
Texture | 30% gloss (matt). |
Colour | RAL colour range.Guidance for specification option: Insert requirements. |
Door leaf | |
Thickness | 44 mm. |
Core | Dufaylite corrugated cardboard (NFR).Guidance for specification option: Non rated applications only. |
Material | 1.2 mm galvanized steel. |
Glazing | |
Type | Not required.NR - 6 mm polycarbonate clear. |
Finish | |
Coating | Powder-coated. |
Texture | 30% gloss (matt). |
External colour | RAL colour range.Guidance for specification option: Insert requirements. |
Internal colour | RAL colour range.Guidance for specification option: Insert requirements. |
Film thickness (minimum) | 40 microns. |

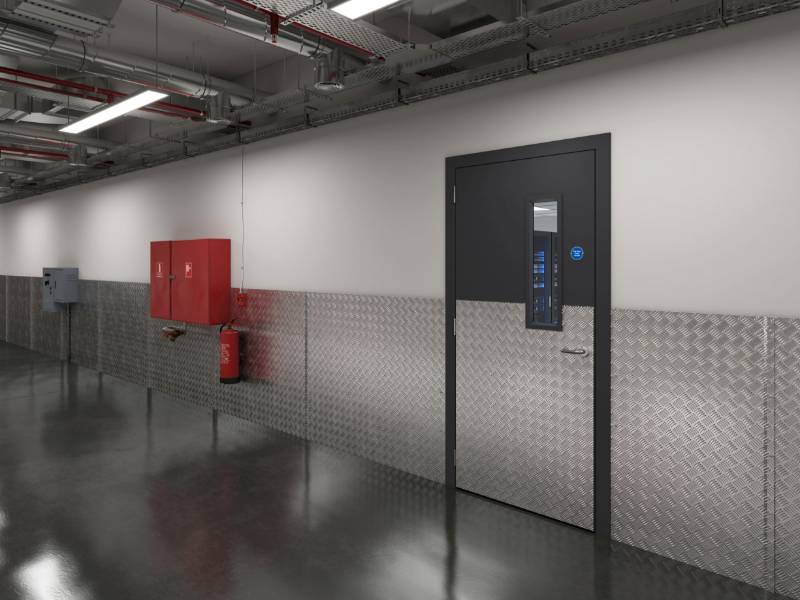

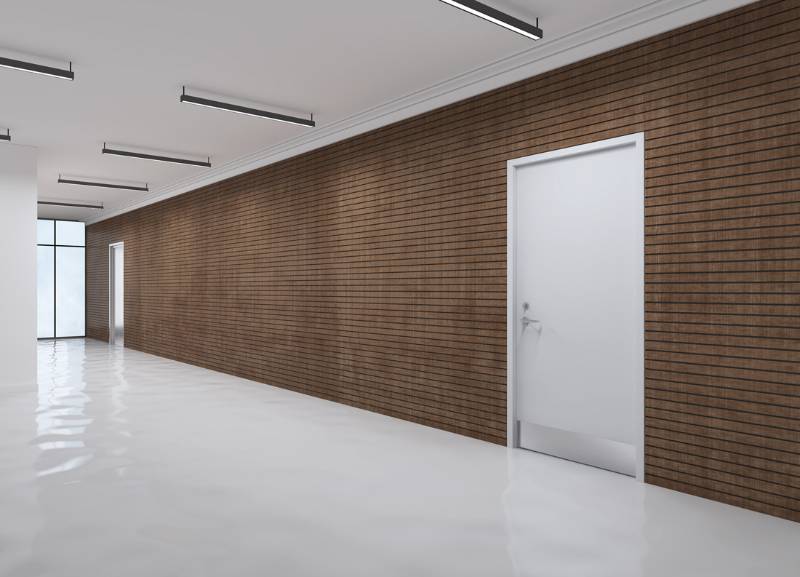

Door accessories | None.Kickplates - stainless steel brush finish.Guidance for specification option: Standard height 200 mm (up to 1250 mm from FFL, other heights available to order). Kickplates - aluminium chequer plate.Guidance for specification option: Standard height 1250 mm from FFL. |

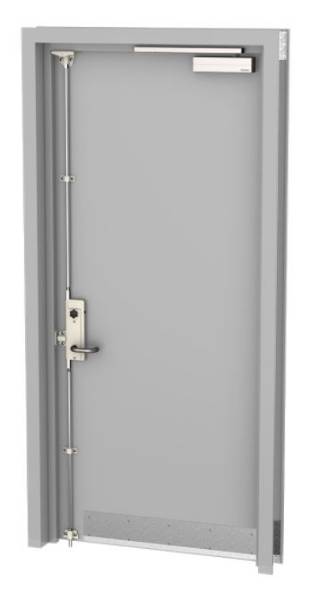

Hardware | Lever handle - Sashlock.Lever handle - Access Control from one side.Push pad/ optional OAD - emergency escape BS EN 179.Push bar/ optional OAD - panic escape BS EN 1125.Push bar access control - panic escape BS EN 1125. |
Door frame profile | Fixed rebate frame. Guidance for specification option: Frame width: 96 mm. Applications:
Architrave frame. Guidance for specification option: Frame width: Wall thickness + 30 mm. Applications:
|
Vision panel | Not required. Rectangular unit 152 x 711 mm. Rectangular unit 152 x 1340 mm. Rectangular units 152 x 711 mm + 152 x 475 mm. Rectangular unit 203 x 305 mm. |
Louvres | AFDL.44 Anemostat metal louvre - double 457 x 457 mm. AFDL.44 Anemostat metal louvre - lower 457 x 457 mm. AFDL.44 Anemostat metal louvre - upper 457 x 457 mm. AFDL.44 Anemostat metal louvre - large 457 x 1546 mm. |
Meeting stiles | Single astragal. Plain. |
Hinges | Grade 14 concealed bearing hinge - EN 1935:2002 and CE marked. Guidance for specification option: Satin stainless steel finish. |
Door closer | EN 1154, CE or UKCA marked. Guidance for specification option: Cam Motion or Rack and Pinion. |
Sustainability data
Country of product manufacture | United Kingdom |
Literature

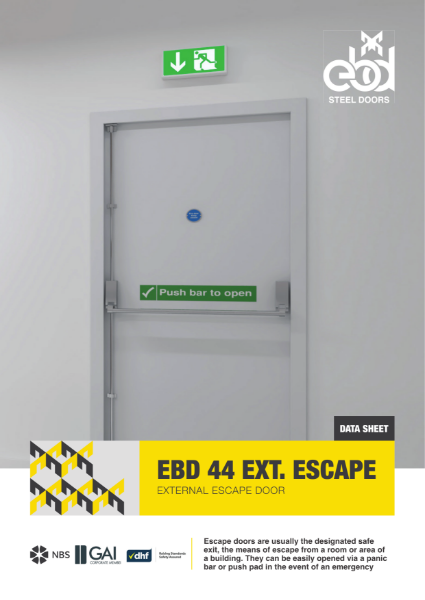

DATA SHEET - EBD - ZZ - XX - SP - Y - 1009_EBD 44 EXTERNAL ESCAPE
