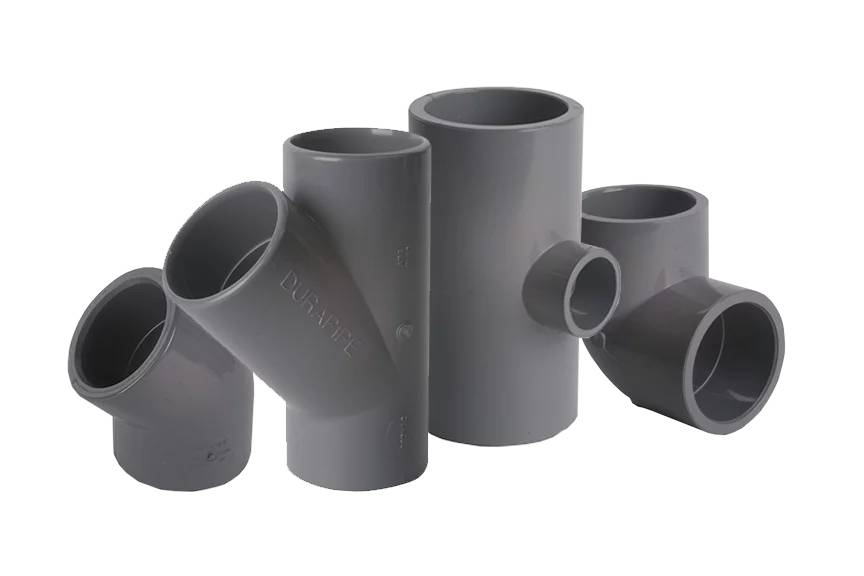

Durapipe Chilled Water SuperFlo ABS Imperial System - Pipes and Solvent Weld Fittings

Verified by manufacturer 5 months ago

Class C (9 bar)

Aliaxis Variant:

SuperFlo ABS is a fully matched, solvent-welded system including pipe, fittings and valves for chilled and cold water services and other environmental control systems.

Jump to:
+44 (0) 330 111 4233 Website

Application

Cold water systems, air conditioning and HVAC supply, chilled water, industrial cooling.

Description

SuperFlo ABS is a fully matched, solvent-welded system including pipe, fittings and valves for chilled and cold water services and other environmental control systems.

SuperFlo ABS has a smooth bore which greatly reduces the build-up of biofilms which can create potential for harmful bacteria such as legionella and pseudomonas, and is completely corrosion resistant meaning lower maintenance costs and optimum pump efficiencies.


Features and benefits:

  • Lightweight and easy to install.
  • Operating temperature -40°C to +20°C.
  • Up to 15 bar pressure rating.
  • 50-year design life.
  • Corrosion and impact resistant.
  • Low thermal conductivity helps to reduce temperature loss.
  • Fully matched range of pipe, fittings and valves.
  • Full WRAS approval.
  • Sizes ½–8" inch (imperial).
  • Also available in metric sizes, specified separately.

General information

Color

Grey

Guidance for specification option:

RAL 7001

Finish

Smooth

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Circle

Length

6000 mm

Width

15 mm

Guidance for specification option:

½".

20 mm

Guidance for specification option:

¾".

25 mm

Guidance for specification option:

1".

32 mm

Guidance for specification option:

1¼".

40 mm

Guidance for specification option:

1½".

Show more

Height

15 mm

Guidance for specification option:

½".

20 mm

Guidance for specification option:

¾".

25 mm

Guidance for specification option:

1".

32 mm

Guidance for specification option:

1¼".

40 mm

Guidance for specification option:

1½".

Show more

Warranty description

15 year

Guidance for specification option:

15-year full system warranty once the installation has been approved by Aliaxis; consult manufacturer for details.

Uniclass

Pr_65_52_63_03 Acrylonitrile butadiene styrene (ABS) pipePrimary
Ss_55_70_38_20 Direct hot water storage supply systems
Ss_55_70_38_42 Indirect hot water storage supply systems
Ss_55_70_38_65 Pumped cold water supply systems
Ss_55_70_38_45 Instantaneous hot water supply systems
Pr_65_52_63_04 Acrylonitrile butadiene styrene (ABS) fittings
Ss_55_70_38_15 Cold water supply systems

CAWS

S90/150 Indirect hot water storage supply

S90/130 Instantaneous hot water supply

S90/140 Direct hot water storage supply

S90/540 Thermoplastics pipework

S90/120 Storage cold water supply

S90/110 Mains cold water supply

Product range

Chilled Water (Chemical Content) Distribution System
Hot and Cold Water Distribution Systems

Specification data - Acrylonitrile butadiene styrene (ABS) pipe

Classification data

Standard

To BS EN ISO 15493 .

Third-party certification

WRAS-approved.

Pressure rating

Maximum 9 bar.

Guidance for specification option:

See pipe size guidance for details.

Pipe size

½”.

Guidance for specification option:

9 bar.

¾”.

Guidance for specification option:

9 bar.

1”.

Guidance for specification option:

9 bar.

1¼”.

Guidance for specification option:

9 bar.

1½”.

Guidance for specification option:

9 bar.

2”.

Guidance for specification option:

9 bar.

2½”.

Guidance for specification option:

10 bar.

3”.

Guidance for specification option:

9 bar.

4”.

Guidance for specification option:

9 bar.

5”.

Guidance for specification option:

10 bar.

6”.

Guidance for specification option:

9 bar.

8”.

Guidance for specification option:

9 bar.

Manufacturer guidance

Standard 6 m lengths.

Colour

Grey.

Jointing

Solvent weld.

Bends

Elbow, 45°, plain.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.

Elbow, 90°, plain.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.

Bend, 22.5° - long radius.

Guidance for specification option:

Made to order, consult manufacturer for details.


To match pipe size unless specified otherwise.

Available for pipe sizes 1–8".

Bend, 45° - long radius.

Guidance for specification option:

Made to order, consult manufacturer for details.


To match pipe size unless specified otherwise.

Available for pipe sizes 1–8".

Bend, 90° - long radius.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for pipe sizes 3–8".

Bend, 90° - short radius.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for pipe sizes ½–4".

Elbow, 90° - plain/ female BSP thread.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for pipe sizes ½–2".

Elbow, 90° - plain/ female BSP thread.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for pipe sizes ½–3".

Elbow, 90° - female BSP thread.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for pipe sizes ½–2".

Manufacturer guidance

Consult manufacturer's literature for further details.

Adaptors

Saddle, plain.

Guidance for specification option:

Insert requirements. Sizes available:

  • 2 x 1¼".
  • 3 x 1½".
  • 4 x 2".
  • 6 x 2".

End cap, plain.

Guidance for specification option:

To suit pipe size specified.

Available for pipe sizes ½–4".

Imperial/ metric socket adaptor - plain.

Guidance for specification option:

Insert requirements, Sizes available:

  • ½" x 20 mm.
  • ¾" x 25 mm.
  • 1" x 32 mm.
  • 1¼" x 40 mm.
  • 1½" x 50 mm.
  • 2" x 63 mm.
  • 2½" x 75 mm.
  • 3" x 90 mm.
  • 4" x 110 mm.
  • 6" x 160 mm.

Socket - plain/ female BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–3".

Male threaded adaptor - plain/ female BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Female threaded adaptor - plain spigot end/ female BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Hexagon nipple - plain spigot/ male BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Barrel nipple - plain spigot/ male BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–4".

Hose adaptor - male BSP thread/ hose tail.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½", ¾" and 1".

Tank connector - plain spigot/ male BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–4".

Composite union - plain/ brass female parallel BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Composite union - plain/ brass taper male BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

SS female composite union - ABS/ stainless steel 316L, BSP parallel female.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

SS male composite union - ABS/ stainless steel 316L, BSP taper male.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Socket - female BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–3".

Saddle, plain.

Guidance for specification option:

Insert requirements. Sizes available:

  • 2 x 1¼".
  • 3 x 1½".
  • 4 x 2".
  • 6 x 2".

Adaptors and reducers

Reducing socket, plain.

Guidance for specification option:

Insert requirements. Sizes available:

  • ¾ x ½".
  • 1 x ¾.
  • 1¾ x 1".
  • 2 x 1½".
  • 3 x 2".
  • 4 x 3".
  • 6 x 4".
  • 8 x 6".

Reducing bush, plain.

Guidance for specification option:

Insert requirements. Sizes available:

  • ¾ x ½".
  • 1 x ½.
  • 1 x ¾.
  • 1¼ x ½".
  • 1¼ x ¾".
  • 1¼ x 1".
  • 1½ x ½".
  • 1½ x ¾".
  • 1½ x 1".
  • 1½ x 1¼".
  • 2 x ¾".
  • 2 x 1".
  • 2 x 1¼".
  • 2 x 1½".
  • 2½ x 2".
  • 3 x 1½".
  • 3 x 2".
  • 3 x 2½".
  • 4 x 3".
  • 5 x 4".
  • 6 x 4".
  • 6 x 5".
  • 8 x 6".

Tee 90° - reducing.

Guidance for specification option:

Insert requirements. Sizes available:

  • ¾ x ½".
  • 1 x ½.
  • 1 x ¾.

Reducing bush - plain/ female BSP thread.

Guidance for specification option:

Insert requirements. Sizes available:

  • ¾ x ½".
  • 1 x ½.
  • 1 x ¾.

Reducing bush - male/ female BSP thread.

Guidance for specification option:

Insert requirements. Sizes available:

  • ¾ x ½".
  • 1 x ½.
  • 1 x ¾.

Manufacturer guidance

Consult manufacturer's literature for further details.

Pipe couplings

Socket, plain.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.

Tee 45° - plain.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Tee 90° - equal.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.

Tee 90° - swept, plain.

Guidance for specification option:

Insert requirements. Available for pipe sizes 1–4".

Socket union, plain EPDM.

Guidance for specification option:

Insert requirements,

Available for pipe sizes ½–4".

Socket union, plain FKM.

Guidance for specification option:

Insert requirements,

  • Available for pipe sizes ½–4".
  • 3” and 4” are class C rated.
  • 2½” is PN10 rated.
  • EPDM seal as standard

Manufacturer guidance

Consult manufacturer's literature for further details.

Pipe clips

Saddle clip – polypropylene.

Guidance for specification option:

Consult manufacturer's literature and insert requirements.

Cobra pipe clip.

Guidance for specification option:

Consult manufacturer's literature and insert requirements.

Valve

VKD double union ball valve manual BS plain female end - EPDM seal.

Guidance for specification option:

Insert requirements.

  • Available for pipe sizes ½–2". FKM seals available on request.
  • Available for pipe sizes 2½–4". Consult manufacturer for details and options.

Lockable VKD double union ball valve manual locking handle BS plain female end - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

FKM seals available on request.

TKD three-way ball valve T-port BS series; plain female end - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Lockable handle option available on request.

TKD three-way ball valve L-port BS series; plain female end - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Lockable handle option available on request.

VXE Easyfit double union ball valves BS plain female end - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

FKM seals available on request.

VKR metering ball valve BS plain female end - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

FKM seals available on request.

SX Easyfit ball check valve BS plain female end - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

FKM seals available on request.

SX Easyfit air release valve BS plain female end - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

FKM seals available on request.

UV Y-type strainers plain female end - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

FKM seals available on request.

DIALOCK® diaphragm valve manual - plain female ends - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

  • FKM or PFTE seals available on request.
  • Larger sizes also available subject to minimum order quantity; consult manufacturer for details.

LR pressure loading/relief valves plain female end - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

  • FKM or PFTE seals available on request.
  • Larger sizes also available subject to minimum order quantity; consult manufacturer for details.

FK butterfly valve - with lever handle - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes 1½–8".

FKM seals available on request.

FK butterfly valve – with gear box - EPDM seal.

Guidance for specification option:

Insert requirements. Available for pipe sizes 2½–8". 10" and 12" also available.

FKM seals available on request.

Accessories

End cap, plain.

Guidance for specification option:

To suit pipe size specified.

Available for pipe sizes ½–4".

End cap, female BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–3".

Plug - male BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Hexagon nipple - male BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–2".

Flange stub - plain/ serrated.

Guidance for specification option:

Insert requirements. Available for pipe sizes 2–8".

Back nut - female BSP thread.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–4".

Full face flange - undrilled.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–6".


Note: It is essential that backing rings are used with all types of stub, full face and blanking flanges.

Full face flange - drilled.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–6", drilled to either:

  1. BS 10:1962 Table D/E.
  2. BS EN 1092-1, PN16 (formerly BS 4504). Also matches PN10 drillings.
  3. ANSI Class 150.

Full face gasket - drilled EPDM.

Guidance for specification option:

Insert requirements. Available for pipe sizes ½–6", drilled to either:

  1. BS 10:1962 Table D/E.
  2. BS EN 1092-1, PN16 (formerly BS 4504). Also matches PN10 drillings.
  3. ANSI Class 150.

Backing ring - galvanized mild steel.

Guidance for specification option:

Insert requirements. Available for all pipe sizes (½–8") unless specified otherwise, drilled to either:

  1. BS 10:1962 Table D/E.
  2. BS EN 1092-1, PN16 (formerly BS 4504) Section 3:1:1989 Tables 10 & 11. ½–6" also matches PN10 drillings.
  3. BS EN 1092-1, PN16. 8” only; drilling has 8 holes and therefore is compatible with the FK 8” butterfly valve.
  4. ANSI Class 150.

Blanking flange - undrilled.

Guidance for specification option:

Insert requirements. Available for pipe sizes 1–8".

Blanking flange - drilled.

Guidance for specification option:

Insert requirements. Available for pipe sizes 2–8", drilled to either:

  1. BS 10:1962 Table D/E.
  2. BS EN 1092-1, PN16 (formerly BS 4504). Also matches PN10 drillings.
  3. ANSI Class 150.

Flat gasket - EPDM.

Guidance for specification option:

For use with stub flanges 135/ 139.

Insert requirements. Available for pipe sizes 2–8".

Valve support plate - galvanized mild steel, drilled.

Guidance for specification option:

Insert requirements. Available for all pipe sizes.

Drilled to BS EN 1029-1, PN10/PN16 (formerly BS 4504).

O-ring seal, EPDM.

Guidance for specification option:

For use with 205 series socket unions.

Insert requirements. Available for pipe sizes ½–4".

O-ring seal, FKM.

Guidance for specification option:

For use with 204 series socket unions.

Insert requirements. Available for pipe sizes ½–4".

Set of transparent service plug and white PVC tag holder.

Guidance for specification option:

For insertion in handle for VXE Easyfit valve customization.

Sizes available:

  • 16–20 mm / ½".
  • 25 mm / ¾".
  • 32 mm / 1".
  • 40 mm / 1¼".
  • 50 mm / 1½".
  • 63 mm / 2".

Die cut labels plus software.

Guidance for specification option:

White waterproof A4 sheets and freeware editing software to be used with inkjet printers for VXE Easyfit valve customization.

Sizes available:

  • 16–20 mm / ½".
  • 25 mm / ¾".
  • 32 mm / 1".
  • 40 mm / 1¼".
  • 50 mm / 1½".
  • 63 mm / 2".

Manufacturer guidance

Consult manufacturer's literature for further details.


Installation tools such as chamfering and de-burring tools or pipe cutters are also available; consult manufacturer for details.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Acrylonitrile butadiene styrene (ABS)

Manufacturing plant location

Recyclability

-

Manufacturer guidance

Once the system reaches its end of life, it can be recycled via any plastic recycling company. The repurposed material can be reused in other industries in non-pressurised areas. We would not recommend that the recycled content is used in pressurised systems as this would exceed the lifetime of the material.

Expected Life

50 year

Literature

SuperFlo ABS Specification guide

SuperFlo ABS Specification guide

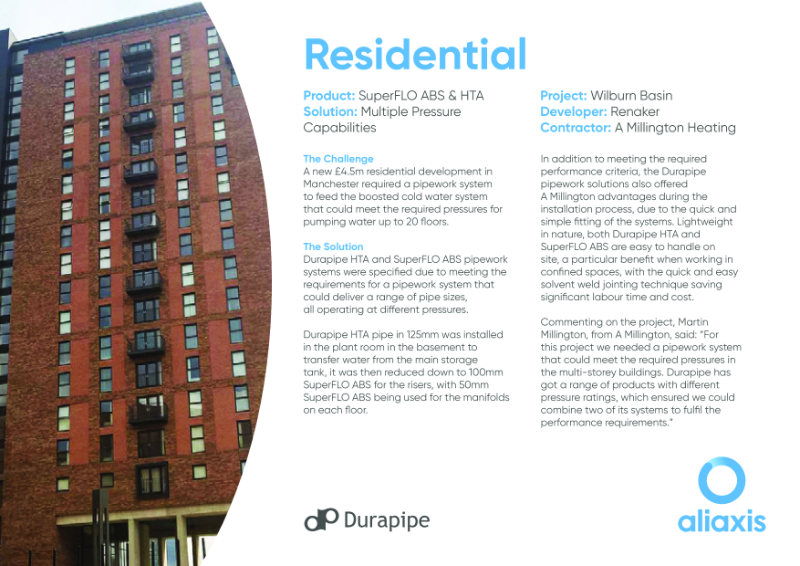

Residential Case Study - SuperFlo ABS metric

Residential Case Study - SuperFlo ABS metric

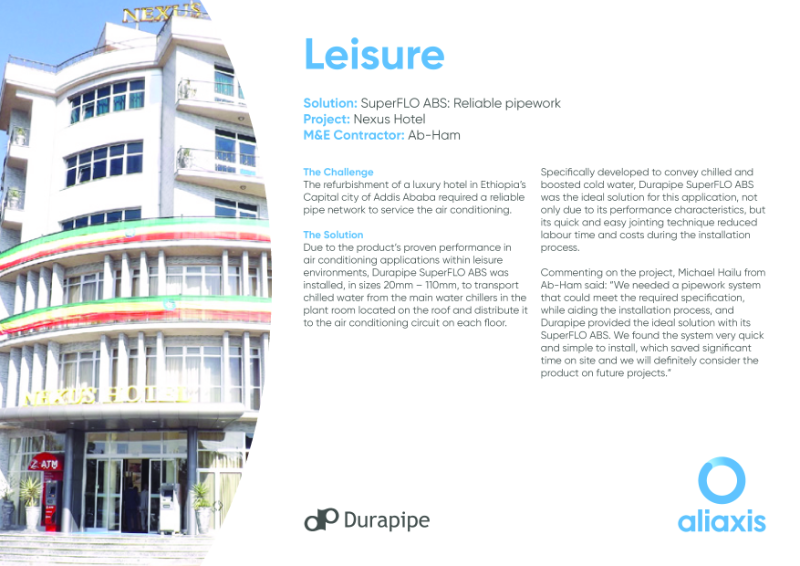

SuperFlo ABS Hotel Case Study

SuperFlo ABS Hotel Case Study

Similar products from Aliaxis

Durapipe Chilled Water SuperFlo ABS Metric System - Pipes and Solvent Weld Fittings

Durapipe Chilled Water SuperFlo ABS Metric System - Pipes and Solvent Weld Fittings

© 2025 Hubexo North UK Ltd. All rights reserved.
