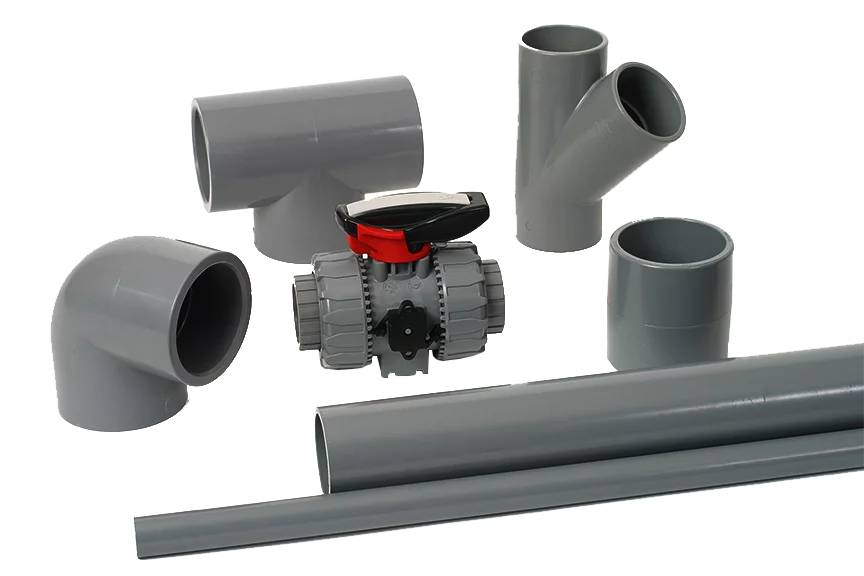

Durapipe Chilled Water SuperFlo ABS Metric System - Pipes and Solvent Weld Fittings

Verified by manufacturer 5 months ago

Aliaxis Product certifications:

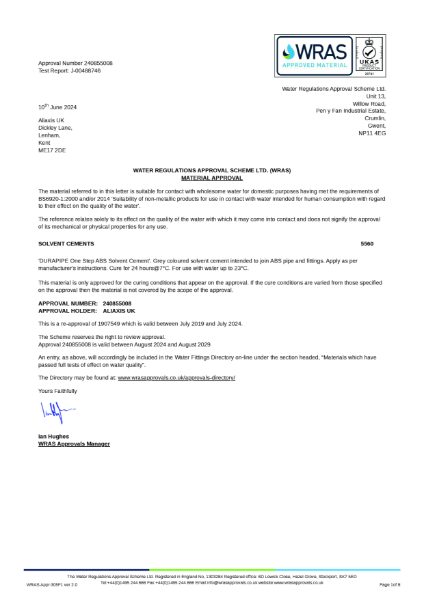

  • WRAS

    WRAS

    Certificate type

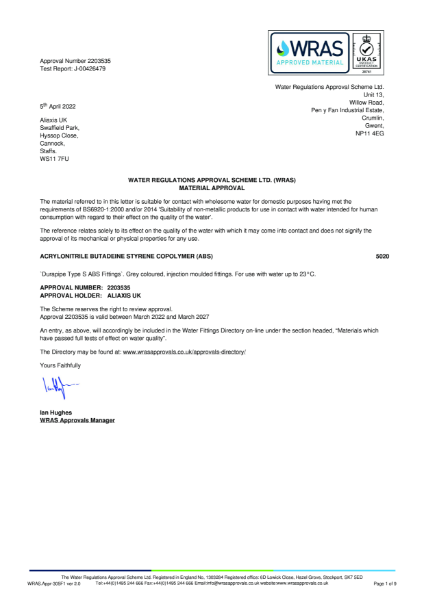

  • WRAS

    WRAS

    Certificate type

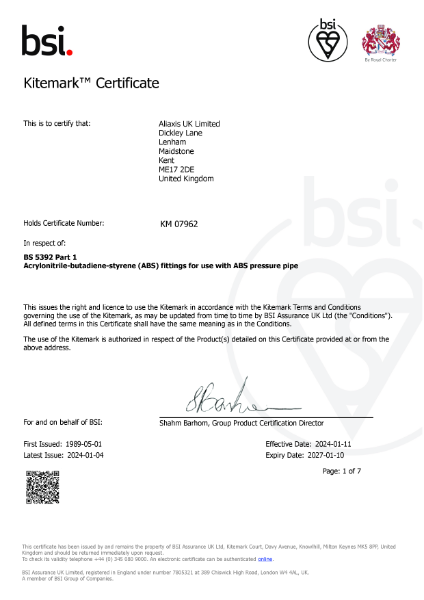

  • BSI Kitemark

    BSI Kitemark

    Certificate type

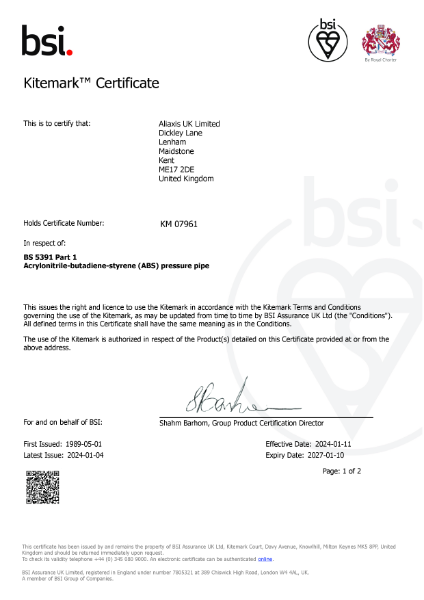

  • BSI Kitemark

    BSI Kitemark

    Certificate type

SuperFlo ABS is a fully matched, solvent-welded system including pipe, fittings and valves for chilled and cold water services and other environmental control systems.

Jump to:
+44 (0) 330 111 4233 Website

Application

Hot and cold water systems.

Description

SuperFlo ABS is a fully matched, solvent-welded system including pipe, fittings and valves for chilled and cold water services and other environmental control systems.

SuperFlo ABS has a smooth bore which greatly reduces the build-up of biofilms which can create potential for harmful bacteria such as legionella and pseudomonas, and is completely corrosion resistant meaning lower maintenance costs and optimum pump efficiencies.


Features and benefits:

  • Lightweight and easy to install.
  • Wide operating temperature -40°C to +60°C.
  • Up to 10 bar pressure rating.
  • 50-year design life.
  • Corrosion and impact resistant.
  • Low thermal conductivity helps to reduce temperature loss.
  • Fully matched range of pipe, fittings and valves.
  • Full WRAS approval.
  • Sizes 16–315 mm (metric).
  • Also available in imperial sizes, specified separately.

General information

Color

Grey

Finish

Smooth

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Circle

Length

5000 mm

6000 mm

Width

16 mm

20 mm

25 mm

32 mm

40 mm

Show more

Height

16 mm

20 mm

25 mm

32 mm

40 mm

Show more

Warranty description

15 year

Guidance for specification option:

15-year full system warranty once the installation has been approved by Aliaxis; consult manufacturer for details.

Uniclass

Pr_65_52_63_03 Acrylonitrile butadiene styrene (ABS) pipePrimary
Ss_55_70_38_20 Direct hot water storage supply systems
Ss_55_70_38_42 Indirect hot water storage supply systems
Ss_55_70_38_65 Pumped cold water supply systems
Ss_55_70_38_45 Instantaneous hot water supply systems
Pr_65_52_63_04 Acrylonitrile butadiene styrene (ABS) fittings
Ss_55_70_38_15 Cold water supply systems

CAWS

S90/150 Indirect hot water storage supply

S90/130 Instantaneous hot water supply

S90/140 Direct hot water storage supply

S90/540 Thermoplastics pipework

S90/120 Storage cold water supply

S90/110 Mains cold water supply

Product range

Chilled Water (Chemical Content) Distribution System
Hot and Cold Water Distribution Systems

Specification data - Acrylonitrile butadiene styrene (ABS) pipe

Classification data

Standard

To BS EN ISO 15493 .

Third-party certification

WRAS-approved.

Pressure rating

Up to 10 bar.

Guidance for specification option:

Consult manufacturer for details. 315 mm pipes are PN8.

Pipe size

16 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

20 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

25 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

32 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

40 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

50 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

63 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

75 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

90 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

110 mm.

Guidance for specification option:

Available in 5 or 6 m lengths.

125 mm.

Guidance for specification option:

Available in 5 m lengths as standard. 6 m lengths are available made to order.

140 mm.

Guidance for specification option:

Available in 5 m lengths as standard. 6 m lengths are available made to order.

160 mm.

Guidance for specification option:

Available in 5 m lengths as standard. 6 m lengths are available made to order.

200 mm.

Guidance for specification option:

Available in 5 m lengths as standard. 6 m lengths are available made to order.

225 mm.

Guidance for specification option:

Available in 5 m lengths as standard. 6 m lengths are available made to order.

250 mm.

Guidance for specification option:

Available in 5 m lengths as standard. 6 m lengths are available made to order.

315 mm.

Guidance for specification option:

PN8 rated.

Available in 5 m lengths as standard. 6 m lengths are available made to order.

Colour

Grey.

Jointing

Solvent weld.

Bends

Elbow, 45°.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.

Elbow, 90°.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.

Bend, 90°.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available 20–110 mm only.

Fabricated bend, 90° - plain.

Guidance for specification option:

Insert requirements.

Available for pipe sizes 75–225 mm.

Manufacturer guidance

Consult manufacturer's literature for further details.

Adaptors

Cap, plain.

Guidance for specification option:

Insert requirements.

Available for pipe sizes 16–110 mm.

Imperial/ metric socket adaptor - plain.

Guidance for specification option:

Insert requirements, Sizes available:

  • ½" x 20 mm.
  • ¾" x 25 mm.
  • 1" x 32 mm.
  • 1¼" x 40 mm.
  • 1½" x 50 mm.
  • 2" x 63 mm.
  • 2½" x 75 mm.
  • 3" x 90 mm.
  • 4" x 110 mm.
  • 6" x 160 mm.

Male threaded adaptor - BSP taper male thread.

Guidance for specification option:

Insert requirements, Sizes available:

  • 16 x 12 mm x 3/8".
  • 20 x 16 mm x 3/8".
  • 20 x 16 mm x ½".
  • 20 x 16 mm x ¾".
  • 25 x 20 mm x ½".
  • 25 x 20 mm x ¾".
  • 32 x 25 mm x ½".
  • 32 x 25 mm x ¾".
  • 32 x 25 mm x 1".
  • 40 x 32 mm x 1".
  • 40 x 32 mm x 1¼".
  • 50 x 40 mm x 1¼".
  • 50 x 40 mm x 1½".
  • 63 x 50 mm x 1½".
  • 63 x 50 mm x 2".
  • 75 x 63 mm x 2".

Female threaded adaptor - BSP taper female thread reinforced.

Guidance for specification option:

Insert requirements, Sizes available:

  • 16 x 12 mm x 3/8".
  • 20 x 16 mm x 3/8".
  • 25 x 20 mm x ¾".
  • 32 x 25 mm x 1".
  • 40 x 32 mm x 1¼".
  • 50 x 40 mm x 1½".
  • 63 x 50 mm x 2".

Hose adaptor - spigot end.

Guidance for specification option:

Insert requirements,

Available for pipe sizes 16–32 mm.

Female composite union - ABS/brass, BSP parallel female.

Guidance for specification option:

Insert requirements, Sizes available:

  • 16 mm x 3/8".
  • 20 mm x ½".
  • 25 mm x ¾".
  • 32 mm x 1".
  • 40 mm x 1¼".
  • 50 mm x 1½".
  • 63 mm x 2".

Male composite union - ABS/brass, BSP taper male thread.

Guidance for specification option:

Insert requirements, Sizes available:

  • 16 mm x 3/8".
  • 20 mm x ½".
  • 25 mm x ¾".
  • 32 mm x 1".
  • 40 mm x 1¼".
  • 50 mm x 1½".
  • 63 mm x 2".

SS female composite union - ABS/stainless steel 316L, BSP parallel female.

Guidance for specification option:

Insert requirements, Sizes available:

  • 20 mm x ½".
  • 25 mm x ¾".
  • 32 mm x 1".
  • 40 mm x 1¼".
  • 50 mm x 1½".
  • 63 mm x 2".

ABS flexible braided hose - plain spigot x BSP.

Guidance for specification option:

Made to order.

Insert requirements, Sizes available:

  • 20 mm, ½" x 300 mm.
  • 20 mm, ½" x 600 mm.
  • 25 mm x ¾" x 300 mm.
  • 25 mm x ¾" x 600 mm.
  • 32 mm, 1" x 300 mm.
  • 32 mm, 1" x 600 mm.

SS male composite union - ABS/stainless steel 316L, BSP taper male.

Guidance for specification option:

Insert requirements, Sizes available:

  • 20 mm x ½".
  • 25 mm x ¾".
  • 32 mm x 1".
  • 40 mm x 1¼".
  • 50 mm x 1½".
  • 63 mm x 2".

Stub flange, serrated face.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.


The 200 mm (NW175) stub flange when used in conjunction with backing ring Part no. number  421 318 and 420 318 has a bolt circle diameter which matches 225mm (NW200) valves and fittings (295 mm).

Blank flange.

Guidance for specification option:

Drilled to EN 1029 PN16 (formerly BS 4504).

Insert requirements,

Available for pipe sizes 32–160 mm.

Socket union plain adaptor.

Guidance for specification option:

Insert requirements,

Available for pipe sizes 16–63 mm.

Socket union threaded adaptor.

Guidance for specification option:

Insert requirements,

Available for pipe sizes 25–63 mm.

Socket union nut.

Guidance for specification option:

Insert requirements,

Available for pipe sizes 16–63 mm.

Socket end, plain.

Guidance for specification option:

Insert requirements,

Available for pipe sizes 20–63 mm.

Adaptors and reducers

Reducing bush.

Guidance for specification option:

Insert requirements. Sizes available:

  • 20 x 16 mm.
  • 25 x 20 mm.
  • 32 x 16 mm.
  • 32 x 25 mm.
  • 40 x 32 mm.
  • 50 x 20 mm.
  • 50 x 25 mm.
  • 50 x 32 mm.
  • 50 x 40 mm.
  • 63 x 25 mm.
  • 63 x 32 mm.
  • 63 x 50 mm.
  • 75 x 63 mm.
  • 90 x 50 mm.
  • 90 x 63 mm.
  • 90 x 75 mm.
  • 110 x 63 mm.
  • 110 x 90 mm.
  • 125 x 110 mm.
  • 140 x 125 mm.
  • 160 x 90 mm.
  • 160 x 110 mm.
  • 160 x 140 mm.
  • 200 x 160 mm.
  • 225 x 160 mm.
  • 225 x 200 mm.
  • 250 x 225 mm.
  • 315 x 250 mm.

Reducer - plain/spigot x plain.

Guidance for specification option:

Insert requirements. Sizes available:

  • (25 or 20) x 16 mm.
  • (32 or 25) x 20 mm.
  • (40 or 32) x 25 mm.
  • (50 or 40) x 32 mm.
  • (63 or 50) x 40 mm.
  • (75 or 63) x 50 mm.
  • (90 or 75) x 63 mm.
  • (110 or 90) x 75 mm.
  • (125 or 110) x 90 mm.
  • (140 or 125) x 110 mm.
  • (160 or 140) x 125 mm.
  • (200 or 160) x 140 mm.
  • (225 or 200) x 160 mm.

Tee 90° - reducing.

Guidance for specification option:

Insert requirements. Sizes available:

  • 25 x 20 mm.
  • 32 x 20 mm.
  • 32 x 25 mm.
  • 40 x 20 mm.
  • 40 x 25 mm.
  • 50 x 20 mm.
  • 50 x 25 mm.
  • 50 x 32 mm.
  • 63 x 25 mm.
  • 63 x 32 mm.
  • 75 x 32 mm.
  • 75 x 40 mm.
  • 75 x 50 mm.
  • 75 x 63 mm.
  • 90 x 40 mm.
  • 90 x 50 mm.
  • 90 x 63 mm.
  • 110 x 63 mm.
  • 110 x 75 mm.

Manufacturer guidance

Consult manufacturer's literature for further details.

Pipe couplings

Socket.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.

Tee 45° - plain.

Guidance for specification option:

Insert requirements. Sizes available:

  • 20 mm.
  • 25 mm.
  • 32 mm.
  • 40 mm.
  • 50 mm.
  • 63 mm.

Tee 90° - equal.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.

Tee 90° - swept.

Guidance for specification option:

Insert requirements. Sizes available:

  • 32 mm.
  • 40 mm.
  • 50 mm.
  • 63 mm.
  • 75 mm.
  • 110 mm.

Manufacturer guidance

Consult manufacturer's literature for further details.

Valve

VKD double union ball valve manual - EPDM seal.

Guidance for specification option:

Available for sizes 16–63 mm.


FKM seals available on request.

Lockable VKD double union ball valve manual - EPDM seal.

Guidance for specification option:

Available for sizes 16–63 mm.


FKM seals available on request.

VKD double union ball valves manual - EPDM seals.

Guidance for specification option:

Available for sizes 75, 90 or 110 mm.


VKD ball valves are available with flanged ends (ISO-DIN) on request, consult manufacturer for details.

TKD three-way ball valves t-port plain female ends - EPDM seals.

Guidance for specification option:

Available for sizes 20–63 mm.


Lockable handle option available on request, consult manufacturer for details.

VXE Easyfit double union ball valves manual - EPDM seals.

Guidance for specification option:

Available for sizes 20–63 mm.

VKR metering ball valve plain female end - EPDM seal.

Guidance for specification option:

Available for sizes 16–63 mm.

SX Easyfit ball check valve plain female end - EPDM seal.

Guidance for specification option:

Available for sizes 20–63 mm.


FKM seals available on request.

SX Easyfit air release valves plain female end - EPDM seal.

Guidance for specification option:

Available for sizes 20–63 mm.


FKM seals available on request.

UV Y-type strainer – plain end - EPDM seal.

Guidance for specification option:

Available for sizes 20–63 mm.


FKM seals available on request.

DIALOCK® diaphragm valve manual - plain female end – EPDM.

Guidance for specification option:

Available for sizes 20–63 mm.

  • FKM or PFTE seal options available on request.
  • Larger sizes also available on request, subject to minimum order quantity.

LR pressure loading/relief valve – plain union end - EPDM seal.

Guidance for specification option:

Available for sizes 16–63 mm.


FKM or PFTE seal options available on request.

FK butterfly valve – glass reinforced polypropylene with ABS disc; EPDM liner.

Guidance for specification option:

Available for sizes 50–225 mm.


FKM liners available on request.

FK butterfly valve – with gear box.

Guidance for specification option:

Available for sizes 75–315 mm.


FKM liners available on request.

Accessories

Backing ring, galvanized mild steel.

Guidance for specification option:

Insert requirements. Sizes available:

  • Drilled to EN 1029 PN10/PN16 (formerly BS 4504): 16–160 mm.
  • Drilled to EN 1029 PN10 (formerly BS 4504): 200–315 mm.
  • Drilled to EN 1029 PN16 (formerly BS 4504): 200–315 mm.
  • Drilled to ANSI class 150: 20–110 mm.

Flat gasket/ stub flange.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for all pipe sizes.

Valve support plate,galvanized mild steel.

Guidance for specification option:

To match pipe size unless specified otherwise.

Available for pipe sizes 16–110 mm.

Rubber lined pipe clip.

Guidance for specification option:

Available for pipe sizes 16–160 mm.

Set of transparent service plug and white PVC tag holder.

Guidance for specification option:

For insertion in handle for VXE Easyfit valve customization.

Sizes available:

  • 16–20 mm / ½".
  • 25 mm / ¾".
  • 32 mm / 1".
  • 40 mm / 1¼".
  • 50 mm / 1½".
  • 63 mm / 2".

Die cut labels plus software.

Guidance for specification option:

White waterproof A4 sheets and freeware editing software to be used with inkjet printers for VXE Easyfit valve customization.

Sizes available:

  • 16–20 mm / ½".
  • 25 mm / ¾".
  • 32 mm / 1".
  • 40 mm / 1¼".
  • 50 mm / 1½".
  • 63 mm / 2".

Manufacturer guidance

Consult manufacturer's literature for further details.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Acrylonitrile butadiene styrene (ABS)

Manufacturing plant location

Recyclability

-

Manufacturer guidance

Once the system reaches its end of life, it can be recycled via any plastic recycling company. The repurposed material can be reused in other industries in non-pressurised areas. We would not recommend that the recycled content is used in pressurised systems as this would exceed the lifetime of the material.

Expected Life

50 year

Product certifications

WRAS

WRAS

WRAS - SuperFlo ABS Fittings

WRAS

WRAS

WRAS SuperFlo ABS Solvent Cement

BSI Kitemark

BSI Kitemark

BSI Kitemark - ABS Pipes

BSI Kitemark

BSI Kitemark

BSI Kitemark ABS Fittings

Literature

Residential Case Study - SuperFlo ABS metric

Residential Case Study - SuperFlo ABS metric

SuperFlo ABS Hotel Case Study

SuperFlo ABS Hotel Case Study

SuperFlo ABS Specification guide

SuperFlo ABS Specification guide

Similar products from Aliaxis

Durapipe Chilled Water SuperFlo ABS Imperial System - Pipes and Solvent Weld Fittings

Durapipe Chilled Water SuperFlo ABS Imperial System - Pipes and Solvent Weld Fittings

© 2025 Hubexo North UK Ltd. All rights reserved.
