Duoflex - Single Pour Hot Melt Inverted Roof System (Concrete Deck)

Verified by manufacturer 4 days ago

Soprema UK Product certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Hot-applied modified bitumen-based roofing system.

Jump to:
+44 (0)330 058 0668 Website

Application

Suitable for use in ballasted, blue roof, green roof and landscaped designs with an SBS modified bitumen protection membrane, XPS insulation and water flow reduction layer.

Description

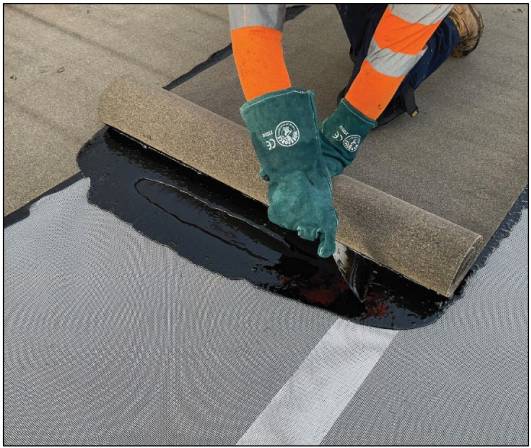

Single pour hot melt inverted waterproofing system on concrete substrate. This system uses the Duoflex Hot Melt system with a cold applied high bond, styrene-butadiene-styrene (SBS) bituminous primer, a woven fiberglass mesh, SBS modified bitumen with a polyester reinforcement, extruded polystyrene (XPS) insulation and a lightweight waterflow reduction layer (WRFL) geotextile loose laid over the XPS insulation.

Features include:

  • Insulation has great compressive strength and energy efficiency.
  • The insulation is also 100% recyclable.
  • Water flow reduction layer contributes to the thermal performance of the roof by retaining the water so it does not penetrate the insulation to the waterproofing layer.
  • Easy to install.
  • BROOF(t4) (Subject to system build up).
  • 30 year system warranty.

General information

Color

Black

Material

Bitumen

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

30 year

Uniclass

Ss_30_40_30_42 Liquid-applied inverted roof covering systemsPrimary

CAWS

J41/125 Single-layer reinforced bitumen membrane inverted roof covering

J41/14 Reinforced bitumen membrane inverted roof covering

J31/12 Inverted roof coating

J42/12 Inverted roof covering

J31/130 Inverted roof coating

J42/120 Inverted roof covering

Specification data - Liquid-applied inverted roof covering systems

Classification data

System manufacturer

Soprema UK.

Preparation

-

Horizontal work

Elastocol 500 primer.

Guidance for specification option:

High bond, high penetration primer blended with elastomeric, polymer modified SBS compound.

Spray or roller applied.

Skirtings and vertical work

Elastocol 500 primer.

Guidance for specification option:

High bond, high penetration primer blended with elastomeric, polymer modified SBS compound.

Spray or roller applied.

Liquid-applied waterproofing

-

Type

Duoflex.

Guidance for specification option:

Hot melt, rubberized monolithic bitumen polymer, modified with SBS thermoplastic resin.

Reinforcement

Duoflex SP grid reinforcement.

Guidance for specification option:

  • 60–70 g/m². woven glass fibre mesh.
  • Roll width, 1 m.
  • Roll length, 50 m.
  • Roll weight, 3 kg.

Surface treatment

Sopralene Flam 180 TF.

Guidance for specification option:

SBS-modified bitumen membrane with polyester reinforcement.

  • Upper surface, sand finish.
  • Lower surface, thermofusible film.
  • Roll width, 1 m.
  • Roll length, 8 m.
  • Roll weight, 40 kg.

Sopralene Flam 180 AF.

Guidance for specification option:

SBS-modified bitumen membrane with polyester reinforcement.

  • Upper surface, slate finish.
  • Selvedge is protected by a polypropylene film.
  • Lower surface, thermofusible film.
  • Roll width, 1 m.
  • Roll length, 8 m.
  • Roll weight, 46 kg.

Sopralene Flam 250 AF.

Guidance for specification option:

SBS-modified bitumen membrane with polyester reinforcement.

  • Upper surface, slate finish.
  • Selvedge is protected by a polypropylene film.
  • Lower surface, thermofusible film.
  • Roll width, 1 m.
  • Roll length, 8 m.
  • Roll weight, 46 kg.

Elastophene 180-25.

Guidance for specification option:

SBS elastomeric bitumen membrane with a non-woven polyester reinforcement.

  • Upper surface, fine sand finish.
  • Lower surface, fine sand film.
  • Roll width, 1 m.
  • Roll length, 8 m.
  • Roll weight, 46 kg.

Insulation

-

Type

SOPRAXPS SL.

Guidance for specification option:

XPS foam rigid thermal insulation board.

Water control layer

Roof 115.
Stratec 11 F.
Stratec 11 S.

Consumption (per layer applied)

±3 kg/m².

Third-party certification

BBA Certificate 10/4745.

Modifier

Styrene butadiene styrene (SBS).

Temperature

Breaking point temperature: To EN 12593, -36°C.
Softening temperature: To EN 1427, ±105°C.

Elastic recovery

To EN 13398, ≥100%.

Rigidity

6–532 kPa.

Guidance for specification option:

From 80°C to 20°C. Consult manufacturers literature for specific values at other temperatures.

Manufacturer guidance

Dynamic Shear Rheometer.

Sustainability data

Material

Bitumen

Expected Life

Lifetime

Product certifications

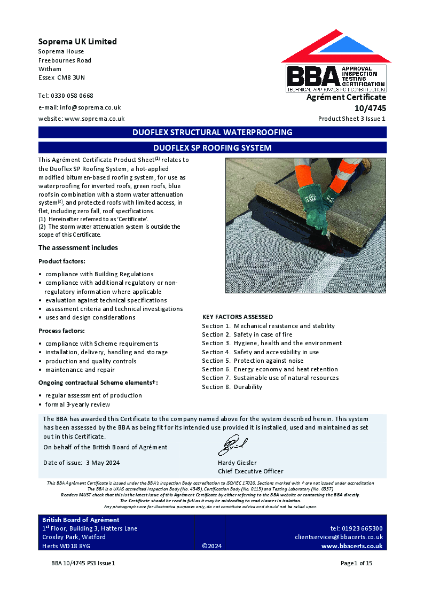

BBA Agrément Certificate

BBA Agrément Certificate

Duoflex - Single Pour Hot Melt Inverted Roof System - BBA Certificate

Literature

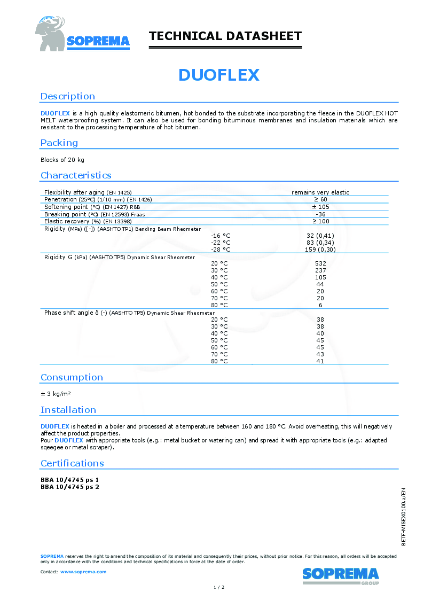

Duoflex - Single Pour Hot Melt Inverted Roof System - Product Data Sheet

Duoflex - Single Pour Hot Melt Inverted Roof System - Product Data Sheet
