Robust fence system.
Zaun’s Duo8 ZaunFix twin wire perimeter fencing is the strongest in the Duo range, combining a perfectly engineered robust design with a low visual impact that will blend into any situation. It is manufactured from dual horizontal 8 mm wires sandwiching a single 6 mm vertical wire, producing a 50 x 200 mm mesh pattern that is not only strong and vandal resistant but also offers the best value.
Each panel is fixed with either a full length clamp bar or bracket system.
Features and benefits:
Galvanized and polyester powder coated
|Uniclass 2015||Metal mesh panel fencing systems (Ss_25_14_67_51)|
0.630–6.0 m, insert requirements.
Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.
Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.
|Standard product features|
Galvanized and polyester powder coated.
Duo8 mesh comprising 50 x 200 mm mesh with dual 8 mm horizontal wires at 200 mm centres and single 5 mm vertical wires at 50 mm centres.
Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 3025 mm centres.
Post to panel fixing:

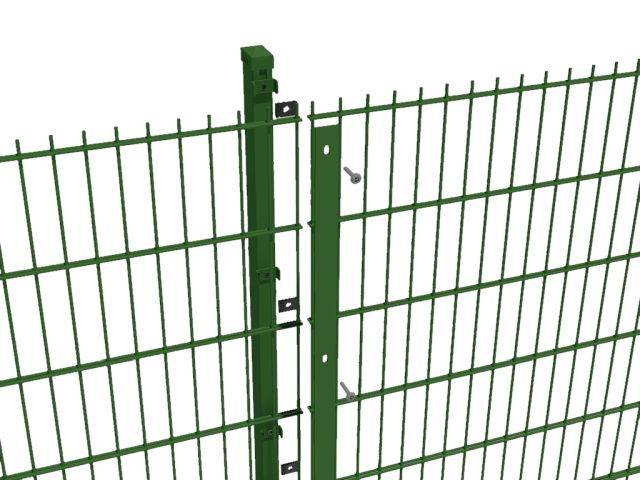

Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.
Panels fixed to posts with ZaunFix clip and bolt fixings at 400 mm centres.
Framed in a 50 x 50 mm RHS with Zaun Duo8 mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
