Application

  • Civic and public sector.
  • Health and emergency services.
  • High security.
  • Industrial.
  • Residential and commercial.
  • Schools and education.
  • Transport and infrastructure.
  • Utilities.

Description

Zaun’s Duo6L Clamp twin wire perimeter fencing is a more economical version our standard Duo6 fencing system, designed at 3 m centres. It combines a perfectly engineered robust design with a low visual impact that will blend into any situation.

Manufactured from dual horizontal 6 mm wires sandwiching a single 5 mm vertical wire, producing a 50 x 200 mm mesh pattern that is not only strong and vandal resistance but also offers the best value.

Each panel is fixed with either a full length clamp bar or bracket system.

Features and benefits:

  • Designed with twin 6 mm horizontal wires.
  • Manufactured at 3 m wide for a more economical solution.
  • Open mesh pattern provides high visibility to monitor sites without restriction.
  • High level of vandal resistance.
  • Available with optional V-Beam to further increase strength.
  • Supplied with standard or minimal projections at the top of the panel.
  • Available either bolt down, in ground or on wall.
  • For low level fences a safety capping is available.

Applications:

  • Civic and public sector.
  • Health and emergency services.
  • High security.
  • Industrial.
  • Residential and commercial.
  • Schools and education.
  • Transport and infrastructure.
  • Utilities.

General information
Finish

Galvanized and polyester powder coated

Uniclass 2015
Metal mesh panel fencing systems (Ss_25_14_67_51)Primary
Specification data - Metal mesh panel fencing systems
Product Reference

Duo6L Clamp

Duo6L Zaunfix

Height

0.630–6.0 m, insert requirements.

Fixing

Bolt down

In ground

Wall

Gates -
Pedestrian

Not required

Required

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Vehicular

Not required

Required

Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Safety capping

Not required

Required

Projection

Minimal

Standard

Standard product features

Finish:

Galvanized and polyester powder coated.

Mesh:

Duo6 mesh comprising 50 x 200 mm mesh with dual 6 mm horizontal wires at 200 mm centres and single 5 mm vertical wires at 50 mm centres.

Posts:

Various rectangular hollow section post (RHS) sizes dependent on height, spaced at 3025 mm centres.

Post to panel fixing:

- Clamp:

Panels fixed to posts with full height 40 x 5 mm clamp bar with bolt fixings at 400 mm centres. The full height clamp bars create a flush safe finish with the mesh ends behind the clamp bar.

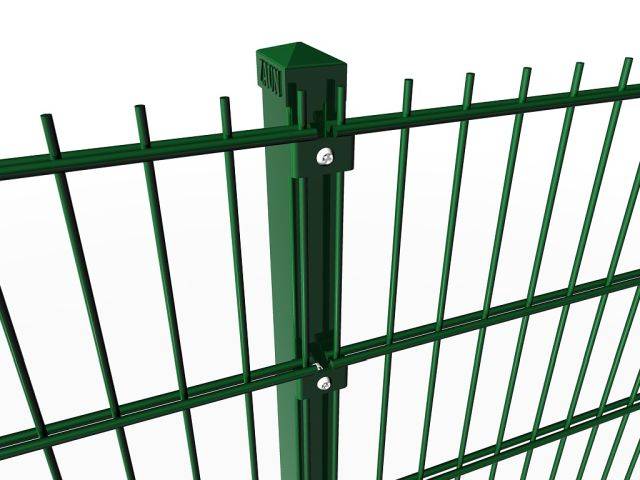

- Zaunfix:

Panels fixed to posts with ZaunFix clip and bolt fixings at 400 mm centres.

Gates:

Framed in a 50 x 50 mm RHS with Zaun Duo8 mesh welded inside the frame, with slide latch. Gate supplied with rubber bump stop and two suitable gate posts. Vehicular access also supplied with drop bolts.
