DucoWall Screening 35: 112 mm Pitch - Louvre Wall Screen

Verified by manufacturer 17 days ago

DucoWall Screening 35-112

Duco Ventilation & Sun Control NV Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

DucoWall Screening 35 is a louvre wall system that can be clicked directly onto the support section. This results in quick and smooth assembly.

Jump to:
BOS
+32 58 33 00 66 Website

Application

Suitable for projects where the louvre wall acts primarily as screening.

Description

A louvre wall system that can be clicked directly onto the support section.


Features and benefits:

  • The Z-shaped louvre blades are clicked directly onto the support section, ensuring super-quick assembly.
  • The system is eminently suitable for projects where the louvre wall acts primarily as screening.
  • Visual free area: 68%.
  • Physical free area: 27%.
  • Louvre blade depth: 44 mm.
  • Slat pitch: 112 mm.

General information

Color

-

Manufacturer guidance

Range of colours available either RAL or anodized.

Finish

Anodized

Guidance for specification option:

Coating thickness 15-20 µm, standard natural colour (clear anodizing).

Powder-coated

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60 µm, standard RAL colours 70% gloss.

Material

Aluminium

Shape

Rectangle

Warranty description

Ten year

Guidance for specification option:

Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
Pr_30_59_48_02 Aluminium louvre blades

CAWS

H11/140 Louvres

H11/437 Louvres

L10/54 Louvres

L10/650 Metal louvres

Specification data - Aluminium louvre panel units

Material

Aluminium.

Finish

Anodized.

Guidance for specification option:

Coating thickness 15-20 µm, standard natural colour (clear anodizing).

Powder coated.

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60-80 µm, standard RAL colours 70% gloss.

Colour

Anodized.

Powder coated.

Guidance for specification option:

Standard RAL colours 70% gloss.

Construction

Flanged frame.

Weather performance

-

Water penetration class (minimum)

To BS EN 13030.

Guidance for specification option:

  • v = 0 m/s: B.
  • v = 0.5 m/s: C.
  • v = 1 m/s: C.
  • v = 1.5 m/s: D.
  • v = 2 m/s: D.
  • v = 2.5 m/s: D.
  • v = 3 m/s: D.
  • v = 3.5 m/s: D.

Fire performance

-

Reaction to fire

To EN 13501-1, A2-s1,d0.

Louvre configuration

-

Blade orientation

Horizontal.

Blade pitch

112.5 mm.

Blade angle

Fixed.

Depth

44 mm.

Manufacturer guidance

Louvre blade depth.

Free area

Visual free area: 68%; Physical free area: 27%.

Height

116 mm.

Span

1650 mm.

Guidance for specification option:

Maximum blade length 6000 mm.

Manufacturer guidance

At 800 Pa.

Mesh

Standard without insect mesh frame.

InputFlowrate

67.19.

Manufacturer guidance

K-factor intake.

ExhaustAirFlowrate

33.03.

Manufacturer guidance

K-factor exhaust.

Support profile

40/21 (double).

Guidance for specification option:

Installation depth of 57 mm.

40/70 double.

Guidance for specification option:

Installation depth of 107 mm.

40/100 double.

Sustainability data

Recyclability

-

Manufacturer guidance

Metals widely recycled.

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

EPD

EPD

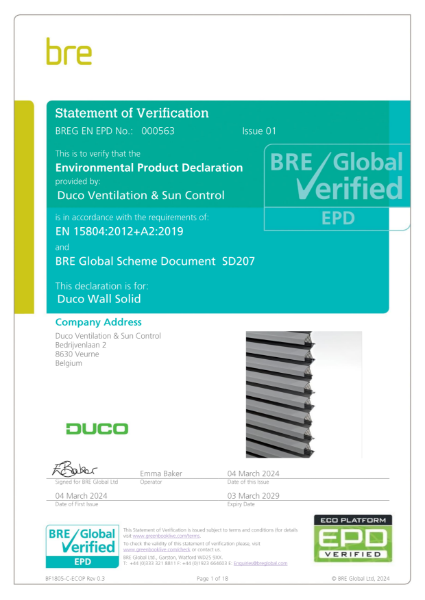

EPD 000563 DucoWall Solid & DucoWall Screening
