DucoStrip Acoustic
Verified by manufacturer 2 months ago
2500 EA Double Acoustic
2500 EA Double Acoustic

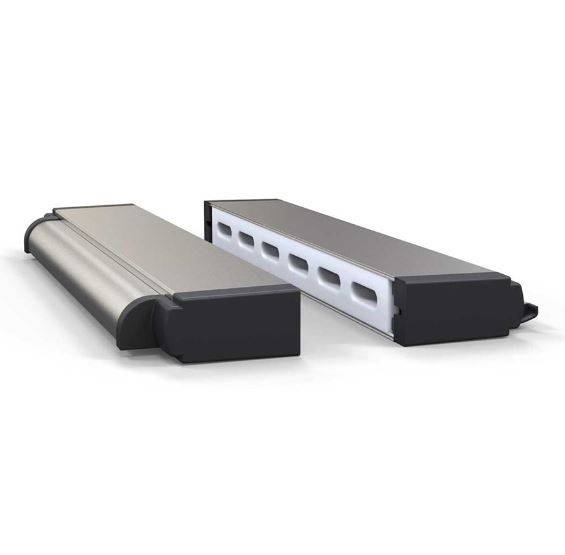

Sound absorbing aluminium “through-the-frame” slot ventilator.
Application
Only suitable for windows in low-rise buildings (up to second floor).
Description
A sound absorbing aluminium “through-the-frame” slot ventilator. The sound-absorbing module can be fitted either on the inside or the outside, or both sides for even better sound absorption.
Features and benefits:
- Sound absorption inside, outside or both sides.
- Incoming airflow deflected upwards.
- Simple fitting with two screws per module.
- Installation screws concealed by smooth end caps.
General information
Color | Manufacturer guidanceRange of colours available in either anodized or RAL. |
Finish | Anodized Powder-coated |
Material | Aluminium Guidance for specification option: AlMg Si 0.5. Plastic Guidance for specification option: Plastic parts : ASA or ABS. |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/33 Proprietary windows L10/10 Wood windows L10/400 Composite windows L10/390 Proprietary windows L10/330 Aluminium windows L10/210 Wood windows |
Specification data - Trickle vents
Equivalent area (minimum) | 3040 mm²/m. |
Material | Aluminium. |
Colour | RAL.Guidance for specification option:
|
Acoustic attenuation | Required. |
Execution | Fasteners for hardware. |
Wind load | Class 2 (300 Pa). Guidance for specification option: In closed position. |
Watertightness | Class 9A (600 Pa). Guidance for specification option: In closed position. |
Free area | 19 500 mm²/m. Manufacturer guidanceGeom. free area. |
Air flow | 12.6 m³/h/m. Guidance for specification option: @ 2 Pa. |
Sound reduction | 42 (-2;-3) dB. Guidance for specification option: Dne,W (C;Ctr) in open position. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
