DucoRoof Turret Solid 30Z - Roof Cowl

Verified by manufacturer 3 months ago

Solid M30Z with punching (P1)

Duco Ventilation & Sun Control NV Variant:

Aluminium roof cowl.

Jump to:
BOS
+32 58 33 00 66 Website

Application

Roof mounting for the concealment of air vents.

Description

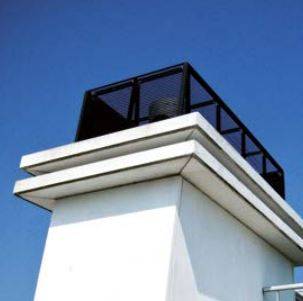

The Duco Roof Turret Solid 30Z is a roof cowl with punched louvre blades, made of extruded aluminium. Ventilation is ducted through the flat roof. The roof cowl can be finished in a choice of RAL colours. The Roof Turret Solid 30Z can be used for both inlet and outlet of air with natural and mechanical ventilation.


Features and benefits:

  • It provides aesthetic concealment of air vents.
  • The roof cowl also ensures adequate purge ventilation of the screened areas and can be used in almost all projects.
  • The perforated Solid 30Z louvre blades are the ideal solution for both insect resistance and ventilation capacity.
  • Due to the large punch slots (P2), this small roof cowl achieves high ventilation values.
  • The roof cowls are made to measure and provided with a sill at the bottom and a cover plate on top.
  • Louvre blades: Z-shaped aluminium extrusions.

General information

Color

-

Manufacturer guidance

Range of colours available in RAL.

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Guidance for specification option:

Between 200–2597 mm.

Width

Bespoke

Guidance for specification option:

Between 200–1147 mm.

Height

Bespoke

Guidance for specification option:

Between 255–1600 mm.

Warranty description

Ten year

Guidance for specification option:

Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Pr_30_59_29_75 Roof ventilator unitPrimary
Ss_25_10_20/540 Custom-made louvres
Ss_30_30_73_60 Passive roof natural ventilator systems

CAWS

L10/650 Metal louvres

H11/140 Louvres

H11/437 Louvres

D21/42 Wall vent outlets

Specification data - Roof ventilator unit

Arrangement

Flat roof mounted.

Ventilator type

Rectangular.

Shape

Rectangular.

Size

Guidance for specification option:

Length: min 200mm, max 2597mm.

Width: min 200mm, max 1147mm.

Height: min 255mm, max 1600mm.

Manufacturer guidance

Insert size requirements.

Outer facing

Aluminium.

Fire performance

To EN 13501-1, A2-s1, d0.

External finish

Powder-coated.

Guidance for specification option:

Powder coating: Qualicoat-compliant, minimum average coating thickness 60 µm.

Colour

RAL colour.

Guidance for specification option:

Standard RAL colours 70% gloss.

Film thickness (minimum)

60 micrometres.

Accessories

Not required.

DucoGrille Close 105.

Guidance for specification option:

Damper unit.

Eggcrate grille.

Guidance for specification option:

Additional grille to improve water resistance.

Execution

Roof vent installation generally.

Depth

30 mm.

Manufacturer guidance

Louvre blade depth.

Flowrate

To EN 13030.

Guidance for specification option:

  • Ce - 0.243.
  • Ke - 16.94.
  • Cd - 0.234.
  • Kd - 18.26.

Free area

34%.

Manufacturer guidance

Physical free area.

Free area

60%.

Manufacturer guidance

Visual free area.

Insect protection

Not required.

Insect mesh.

Guidance for specification option:

2.3 x 2.3 mm.

Mesh.

Guidance for specification option:

6 x 6 mm.

PatternType

P1 punching.

Guidance for specification option:

21 mm high x 2.5 mm wide.

Pitch

37.5 mm.

Manufacturer guidance

Slat pitch.

Thickness

1.5 mm.

Type

Z-shaped.

Water resistance

To EN 13030.

Guidance for specification option:

  • 0 m/s - B.
  • 0.5 m/s - B.
  • 1 m/s - C.
  • 1.5 m/s - C.
  • 2 m/s - D.
  • 2.5 m/s - D.
  • 3 m/s - D.
  • 3.5 m/s - D.

BIM objects

BOS

NBS BIM Object Standard
