DucoGrille Transfer Acoustic

Name: DucoGrille Transfer Acoustic
Brand: Duco Ventilation & Sun Control NV
SKU: hQAJahw2NXxHL7RE8Hvk67

Verified by manufacturer 5 days ago

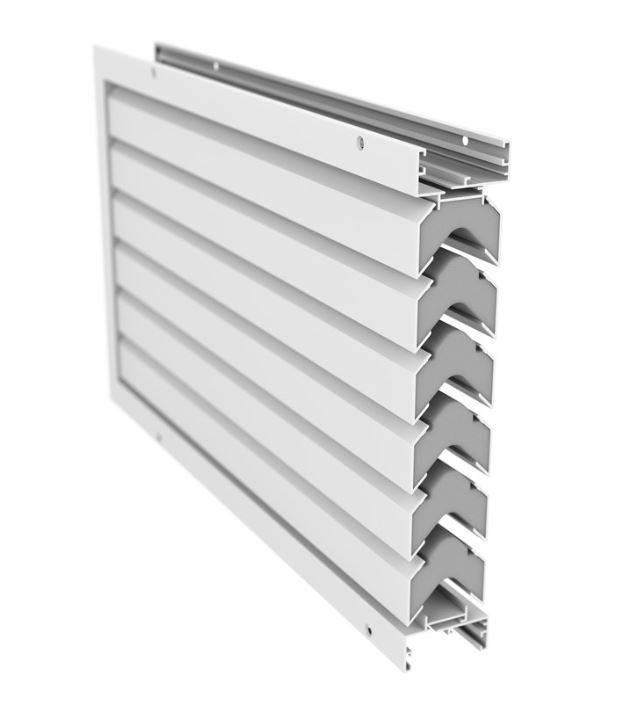

DG Transfer Acoustic with Counter Frame

Duco Ventilation & Sun Control NV

Acoustic transfer grille for doors and interior walls.

Jump to:

+32 58 33 00 66 Website

Application

Wall and door ventilation applications.

Description

DucoGrille Transfer Acoustic is an acoustic air flow grille which fits easily into doors and walls. The grille is available with or without a counterframe. The DucoGrille Transfer Acoustic is ideally suited for use between multiple internal and external spaces (e.g. outside doors).

Features and benefits:

Adjustable frame depth.

General information

Finish	Powder-coated Guidance for specification option: Qualicoat-compliant, minimum average coating thickness 60–80 µm.
Material	Aluminium Guidance for specification option: Internal and external: Aluminium, Al Mg Si 0.7.
Shape	Rectangle
Warranty description	Ten year

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
CAWS	L10/650 Metal louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)	- Manufacturer guidance With counterframe: Width: 255-810 mm. Height: 125-545 mm. Without counterframe: Width: 190-790 mm. Height: 190-790 mm. Insert requirements.
Material	Aluminium. Guidance for specification option: Inside and outside: aluminium Al Mg Si 0,7. Thermoplastic parts: POM.
Finish	Powder-coated. Guidance for specification option: Insert colour requirements. Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours.
Colour	RAL. Guidance for specification option: Standard RAL colours. Insert requirements.
Air intake and exhaust performance	-
Application	Exhaust. Intake.
Weather performance	-
Water penetration class (minimum)	To BS EN 13030. Guidance for specification option: v = 0 m/s: A. v = 0.5 m/s: A. v = 1 m/s: C. v = 1.5 m/s: D. v = 2 m/s: D. v = 2.5 m/s: D. v = 3 m/s: D. v = 3.5 m/s: D.
Louvre configuration	-
Blade orientation	Horizontal.
Blade pitch	35 mm.
Blade angle	Fixed.

Depth	28–84 mm.
Type	Assembled acoustic blade.
Free area	Visual free area: 27%; Physical free area:18%.
InputFlowrate	145.16. Manufacturer guidance K factor intake.
ExhaustAirFlowrate	148.72. Manufacturer guidance K factor exhaust.
Thickness	1.2 mm.
Frame	Counter frame.

Sustainability data

Material	Aluminium Guidance for specification option: Internal and external: Aluminium, Al Mg Si 0.7.
Recyclability	- Manufacturer guidance Metals widely recycled.
