DucoGrille Classic N 130HP - Recessed Aluminium Wall/ Window Louvres

Verified by manufacturer 4 months ago

DucoGrille Classic N 130HP

Duco Ventilation & Sun Control NV Variant:

Recessed aluminium wall/ window louvres.

Jump to:
BOS
+32 58 33 00 66 Website

Application

Louvres for wall/ window ventilation.

Description

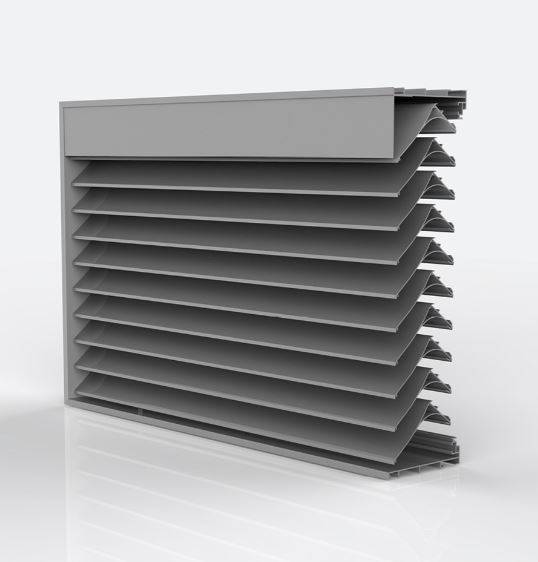

A built-in wall grille, which is provided with 130HP blades especially developed for intensive ventilation, thanks to their low resistance factor. The uniquely shaped 'High Performance' blade provides a combination of very good airflow (high flow rates) together with excellent water repellency (class A).


Features and benefits:

  • Recessed wall or window louvres, manufactured from extruded aluminium profiles.
  • The Turn and Click system ensures quick and easy assembly.
  • Many louvre blade options are available.
  • An insect screen is fitted as standard.

General information

Color

-

Manufacturer guidance

Range of colours available in either anodized or RAL.

Finish

Anodized

Guidance for specification option:

Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder-coated

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.

Material

Aluminium

Guidance for specification option:

Louvre blades: Aluminium, Al Mg Si 0.5.

Polyamide

Guidance for specification option:

Louvre holders: Polyamide, PA 6.6, reinforced with glass fibre.

Shape

Rectangle

Width

250 mm

Height

250 mm

Warranty description

Ten year

Guidance for specification option:

Duco Projects provides 10-year warranty cover on Duco system materials covering potential defects in materials and surface treatment, applicable from the date 3 months after delivery or from the date of installation, whichever is the sooner.For motors and for components subject to wear as a result of movement, however, this warranty is limited to 1 year. This warranty is only valid for building projects in European countries (other countries upon request only) and provided normal use and maintenance have been observed. This warranty is on a sliding scale, reducing by 10% a year (e.g.: during the third year 80% of the claim will still be covered by this warranty). This warranty covers the supply of replacement parts on site to be fitted by the installer, or in the event of defective surface treatment, substantiated costs for pre-treating and recoating the material in question. This warranty relates exclusively to the product itself, not to its installation: accordingly, dismantling and assembly costs are not covered by this warranty. Duco Projects’ maximum liability will be exhausted with the resupply of the defective component or complete system. Under no circumstances can Duco Projects be held liable for any other tangible or intangible loss, including consequential losses. A repaired or resupplied product is covered for the remainder of the warranty period.

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
Pr_30_59_48_02 Aluminium louvre blades
Ss_25_10_20/540 Custom-made louvres

CAWS

H11/140 Louvres

H11/437 Louvres

L10/54 Louvres

L10/650 Metal louvres

Specification data - Aluminium louvre panel units

Material

Aluminium.

Finish

Anodized.

Guidance for specification option:

Qualanod-compliant, coating thickness 15–20 µm, standard natural colour (clear anodizing).

Powder-coated.

Guidance for specification option:

Qualicoat-compliant, minimum average coating thickness 60–80 µm, standard RAL colours with 70% gloss.

Colour

Anodized.

RAL.

Guidance for specification option:

Standard RAL colours with 70% gloss. Insert requirements.

Construction

Flanged frame.

Air intake and exhaust performance

-

Application

Exhaust.

Intake.

Weather performance

-

Water penetration class (minimum)

To BS EN 13030.

Guidance for specification option:

  • v = 0 m/s: A.
  • v = 0.5 m/s: A.
  • v = 1 m/s: A.
  • v = 1.5 m/s: A.
  • v = 2 m/s: A.
  • v = 2.5 m/s: A.
  • v = 3 m/s: C.
  • v = 3.5 m/s: C.

Louvre configuration

-

Blade orientation

Horizontal.

Blade pitch

50 mm.

Blade angle

Fixed.

Accessories

Not required.

Drip tray integrated in the frame profile, drainage via frame profile.

Flange

0 mm.

Manufacturer guidance

Equal leg outer frame.

Depth

165 mm.

Manufacturer guidance

Frame depth.

Thickness

1.5 mm.

Manufacturer guidance

Profile thickness.

Free area

Visual free area: 88%; Physical free area: 70%.

InputFlowrate

9.02.

Manufacturer guidance

K-factor intake.

ExhaustAirFlowrate

12.40.

Manufacturer guidance

K-factor exhaust.

Height

87 mm.

Manufacturer guidance

Blade height.

Type

HP-shaped.

Mesh

Without mesh.

Stainless steel mesh, 2.3 x 2.3 mm.

Guidance for specification option:

Standard, resistant to insects, vermin and birds.

Stainless steel mesh, 6 x 6 mm.

Guidance for specification option:

Resistant to vermin and birds.

Stainless steel mesh, 20 x 20 mm.

Guidance for specification option:

Resistant to birds.

Installation depth

165 mm.

Dimensions

250 x 250 mm (minimum).

Manufacturer guidance

W x H.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
