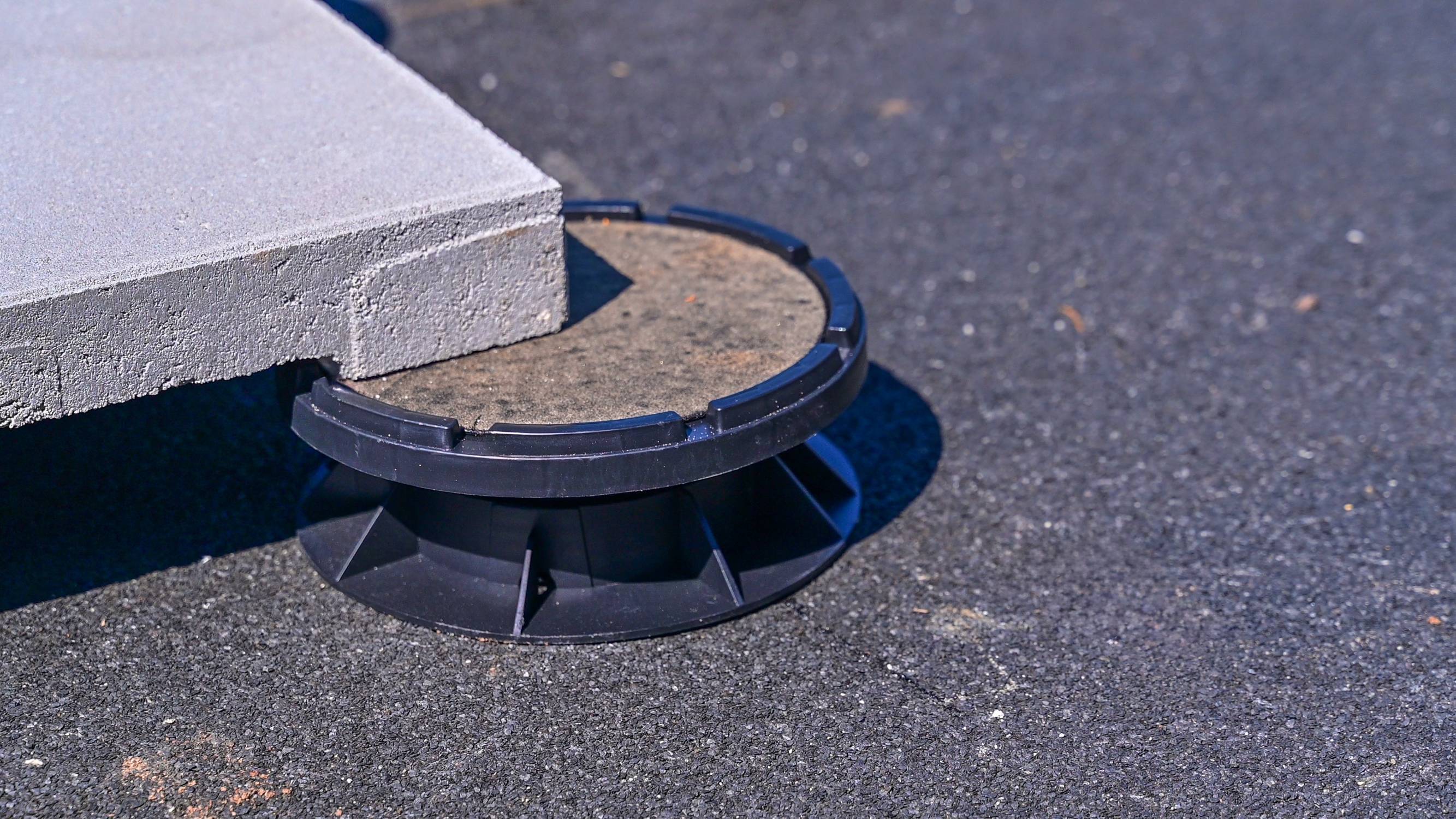

Dreen® slab
Verified by manufacturer 2 days ago
500 x 500 x 55 mm
500 x 500 x 55 mm
Rooftop terrace complete with pedestal system, and suitable for all walkable flat roofs. The Dreen® slab and its accompanying system guarantee a stable and dry rooftop terrace.
Application
Suitable for walkable flat roofs.
Description
Rooftop terrace complete with pedestal system and suitable for all walkable flat roofs. The Dreen® slab and its accompanying system guarantee a stable and dry rooftop terrace.
Features and benefits:
- Complete system.
- Stable solution.
- Adjustable heights.
- Adjustable slope capability.
- Available with a range of colours and sizes.
General information
Color | Beige Black Brown Green Grey |
Material | Concrete |
Shape | Rectangle Square |
Length | 500 mm 600 mm |
Width | 400 mm 500 mm |
Height | 55 mm 70 mm |
Uniclass | |
CAWS | J42/467 Support system for precast concrete paving slabs J21/85 Precast concrete paving slabs Q25/127 Pedestal supported paving slab/ flag system J41/90 Precast concrete paving slabs Q25/480 Support pedestals J21/465 Precast concrete paving slabs J41/467 Support system for precast concrete paving slabs J21/467 Support system for precast concrete paving slabs |
Specification data - Flag and slab pedestal-supported paving systems
Classification data | |
System performance | To NEN 1339 and BRL 2315. |
Pedestals | DNS® pedestal. Guidance for specification option: Configuration includes:
Adjustable pedestal. Guidance for specification option: Configuration includes:
A1 Smart Ped (metal pedestal). |
Paving units | Concrete paving slabs. |
Applied surface features | Underside feet. |
Unit dimensions | 500 x 500 x 55 mm. |
Weight | 25 kg (per slab); 100 kg/m². |
Unit | 4 /m². Manufacturer guidanceNumber per m². |
Reaction to fire | A1. |
Breaking load | ≤8 kN. |
Flexural strength | 5 N/mm². |
Slip resistance | Manufacturer's standard. Manufacturer guidanceSufficient; consult manufacturer for more details. |
Colour | Urban grey. Light grey. Ginger. Greige. Pepper. Natural green. Other. Guidance for specification option: Custom production available; consult manufacturer for more details and insert requirements. |
Accessories | Not required. Adhesive disc. Guidance for specification option: For installations on slopes. |
Sustainability data
Material | Concrete |
Literature
Dreen® slab - Data Sheet
