Dreen®Texture - Pedestal-Supported Concrete Slab System

Verified by manufacturer 13 hours ago

Zoontjens

Dreen®Texture is a hydraulically pressed concrete slab, with a textured finish offering excellent non-slip properties in both wet and dry conditions and complete with the fixplate lock system.

Jump to:
07435 963770 Website

Application

Suitable for rooftop and higher ground flat roof paving. From large to small and from light to heavy use. Including rooftop:

  • Terraces.
  • Pathways.
  • Gardens.
  • Courtyards.
  • Pitches.
  • Parks.
  • Podiums and balconies.

Description

Dreen®Texture is a hydraulically pressed concrete slab, with a textured finish offering excellent non-slip properties in both wet and dry conditions and complete with the fixplate lock system to create a smooth dry surface on a range of rooftops.

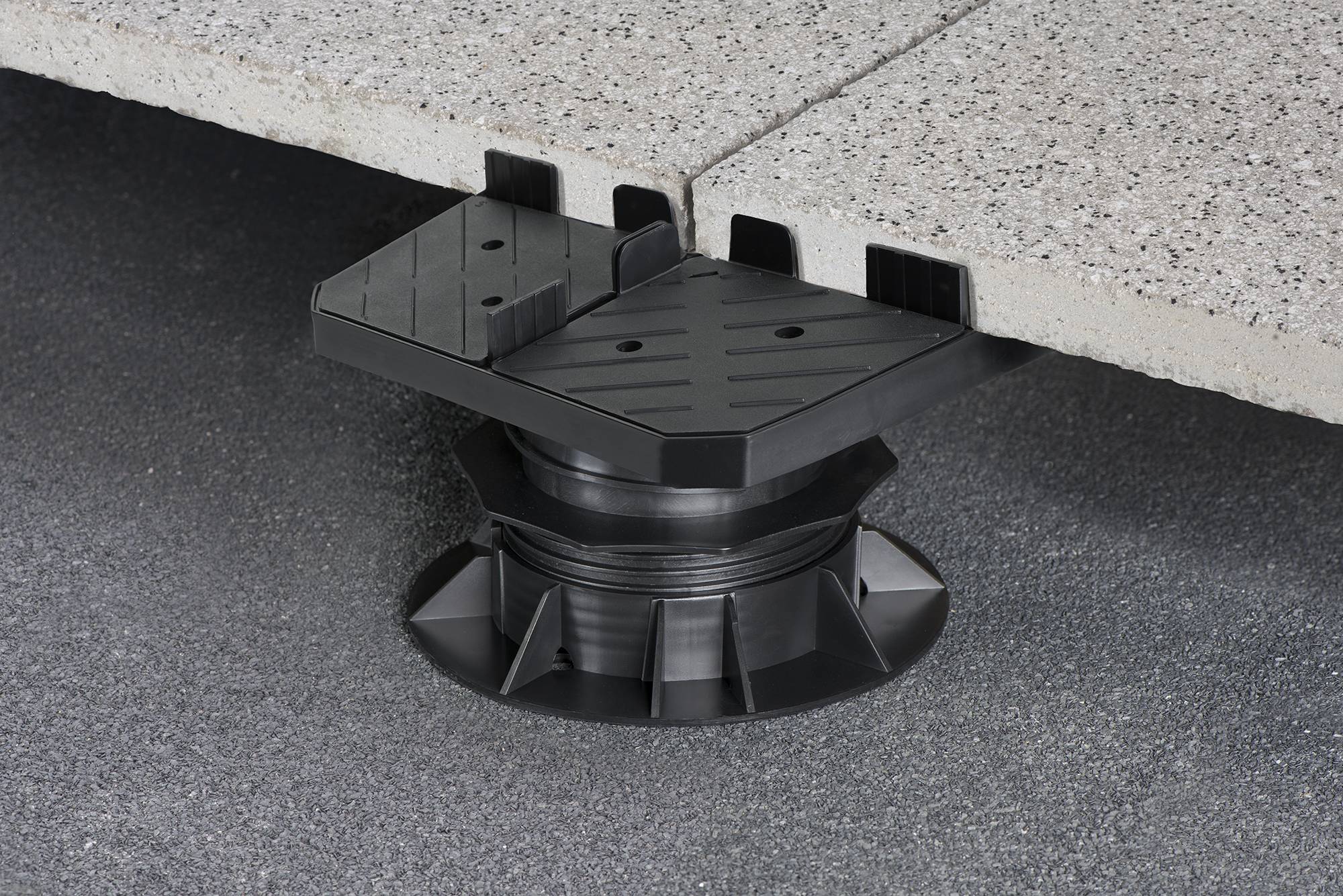

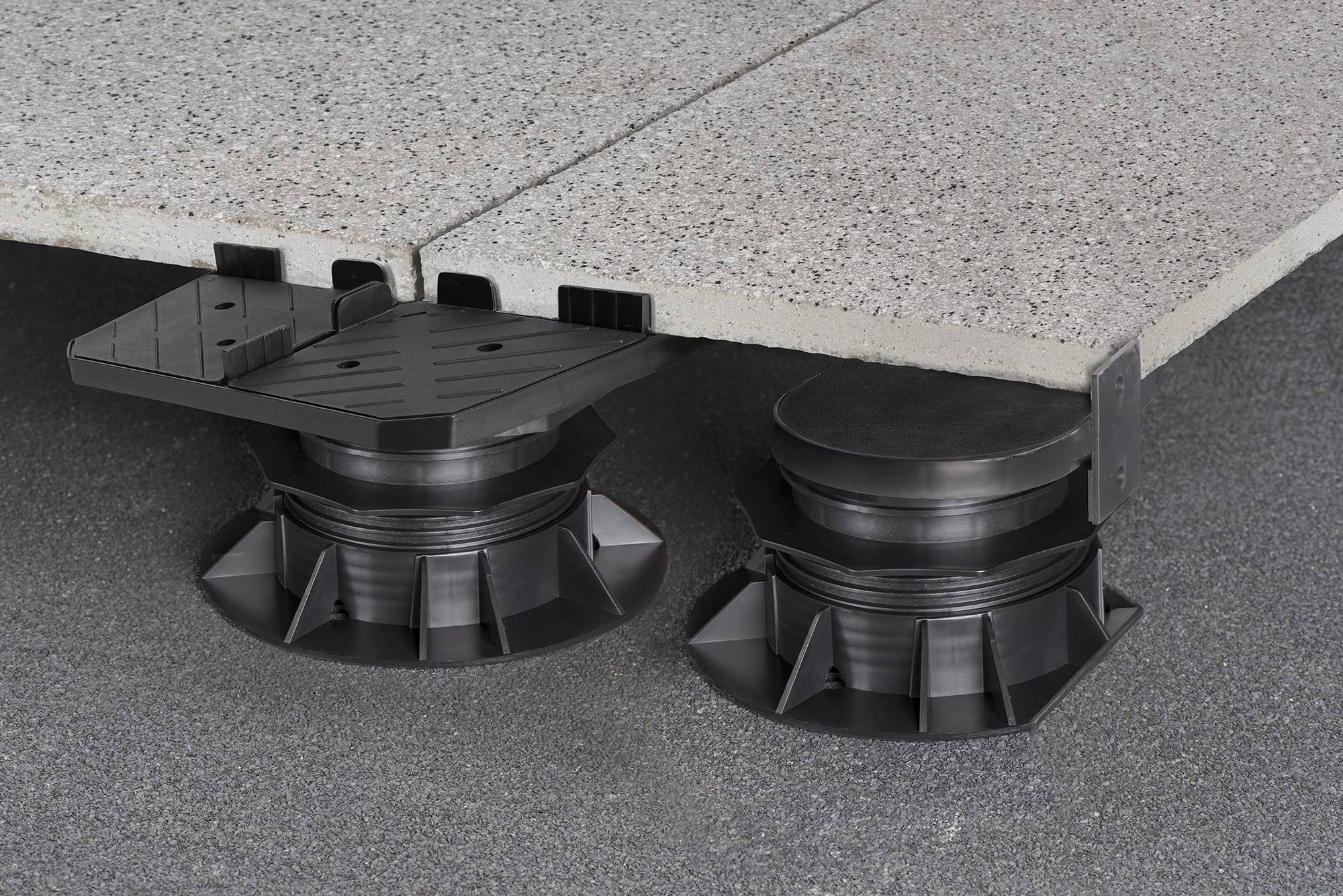

To install Dreen®Texture, the slabs are attached to the underlying fixplate lock system with removable corner sections. These elements fix and lock the slabs in place, but keeps the underlying roofing layer accessible if and when needed.

Features and benefits:

  • Four colour options.
  • Available in size 600 x 600 x 50 mm.
  • Excellent non-slip properties in both wet and dry conditions.
  • Fixplate lock system fixes and locks the slabs in place, but keeps the underlying roofing layer accessible if and when needed.

General information

Color

White

Grey

Yellow

Beige

Other

Finish

Textured

Anti-slip

Material

Concrete

Shape

Square

Length

600 mm

Width

600 mm

Height

50 mm

Uniclass

Ss_30_14_90_34 Flag and slab pedestal-supported paving systemsPrimary

CAWS

J42/467 Support system for precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J21/467 Support system for precast concrete paving slabs

Q25/480 Support pedestals

J21/465 Precast concrete paving slabs

J21/85 Precast concrete paving slabs

J41/90 Precast concrete paving slabs

Q25/127 Pedestal supported paving slab/ flag system

Specification data - Flag and slab pedestal-supported paving systems

Classification data

System performance

To BS EN 1339.

System manufacturer

Zoontjens.

Pedestals

Fixplate lock system.
Fixplate lock adjustable pedestal system.
Adjustable edge zone system.

Paving units

Concrete slabs.

Applied surface features

Textured anti-slip finish.

Dimensions

600 x 600 x 50 mm.

Guidance for specification option:

Tolerance of +/-2.

Manufacturer guidance

Length x width x thickness.

Bending strength

2 N/mm².

Abrasion resistance

Class 4.

Guidance for specification option:

<20 mm.

Manufacturer guidance

Wide wheel abrasion test.

Unpolished slip resistance value (usrv) (minimum)

Potential for slip - low (dry and wet).

Water absorption

Class 2.

Guidance for specification option:

6% by mass.

Manufacturer guidance

Total water absorption.

Freeze/ Thaw Resistance

Class 3.

Guidance for specification option:

1.0 as a mean with no individual result value >1.5.

Colour

Marble white.
Marble yellow.
Marble greige.
Marble grey.

Sustainability data

Material

Concrete

Literature

Technical Information Dreen Texture

Technical Information Dreen Texture
