Drainage Pumping Station

Verified by manufacturer 6 months ago

Drainage Pumping Station - SP1000/800S - 2100 mm

Andel Ltd Variant:

Pumping station for the facilitation of pumping raw sewage directly from the sewage system.

Jump to:
+44 (0)1484 845000 Website

Application

Sewage pumping station applications.

Description

Pumping station for the facilitation of pumping raw sewage directly from the sewage system. The station is an important component of sewage systems as it ensures the efficient and effective movement of raw sewage for treatment, safeguarding public health and environment.


The Drainage Pumping Station plays an important role in preventing sewage from contaminating streets, homes and natural environments, maintaining the integrity and effectiveness of sewage systems while mitigating potential risks to communities and ecosystems.


Features and benefits:

  • Available in three types, differing in height.
  • PKO 800 cover included.
  • Additional height adjustment with extensions available (NSO 800).
  • Polyethylene extension shaft and cover with “twist” type closure.
  • Minimizes the risk of blockages and environmental hazards.
  • The well has been designed to increase the stability of the device in the ground.


Pumping station sold without equipment.

General information

Color

Black

Material

High density polyethylene (HDPE)

Shape

Oval

Height

1080 mm

1400 mm

1700 mm

2000 mm

2100 mm

Show more

Uniclass

Pr_70_55_76_66 Packaged sewage treatment unitsPrimary

CAWS

R18/310 Package pumping stations

R12/130 Private packaged sewage treatment system

R17/325 Packaged sewage treatment units

Specification data - Packaged sewage treatment units

Process

Pumping station.

Tank material

High density polyethylene (HDPE).

Integral accessories

PKO 800 cover.
Polyethylene extension shaft and cover (with "twist" type closure).
NSO 800 extensions.

Heights

2100 mm.

Weight

71 kg.

Diameter

550 mm (manhole diameter).

Diameter

690 mm (well diameter).
600 mm (bottom of well diameter).
1100 mm (reinforcing ring diameter).

Sustainability data

Material

High density polyethylene (HDPE)

Literature

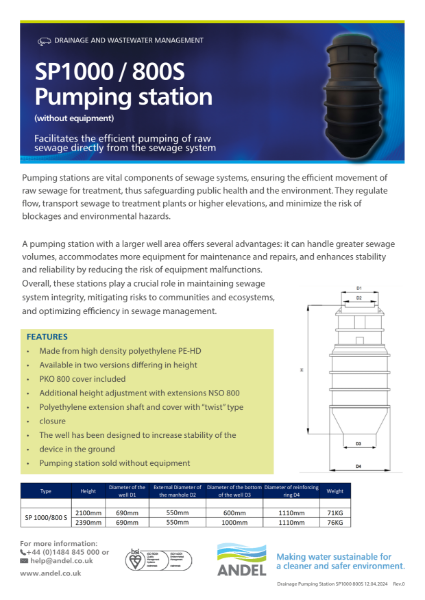

Drainage Pumping station SP800 800S Data Sheet

Drainage Pumping station SP800 800S Data Sheet

Drainage Pumping station SP1000 800S Data Sheet

Drainage Pumping station SP1000 800S Data Sheet
