Drainage Pumping Chamber SP1000 800

Verified by manufacturer 4 months ago

Drainage Pumping Chamber - SP1000 800/A

Andel Ltd Variant:

Pumping chamber for the facilitation of pumping raw sewage directly from the sewage system.

Jump to:
+44 (0)1484 845000 Website

Application

Sewage pumping applications.

Description

Pumping chamber for the facilitation of pumping raw sewage directly from the sewage system. The chamber is an important component of sewage systems as it ensures the efficient transfer of raw sewage to the mains or treatment systems.


SP1000 800 is built to regulate flow and transport sewage to far distances and higher elevations. It minimizes the risk of blockages and environmental hazards. Depending on the effluent that is being pumped, there is a range of pumps that can be installed to suit the customers requirements.


Features and benefits:

  • Available in three versions with different heights.
  • PKO 800 cover included.
  • Can handle greater sewage volumes and accommodates both single and twin pumping systems.
  • Maintains sewage systems and storm water.
  • Polyethylene extension rings and a “twist” type closure designed to increase the stability of the installed chamber in the ground.
  • Various pump options are available depending on the customer’s requirements.

General information

Color

Black

Material

High density polyethylene (HDPE)

Shape

Oval

Height

1760 mm

2055 mm

2350 mm

Uniclass

Pr_70_55_76_66 Packaged sewage treatment unitsPrimary

CAWS

R12/130 Private packaged sewage treatment system

R17/325 Packaged sewage treatment units

Specification data - Packaged sewage treatment units

Process

Pumping chamber.

Tank material

High density polyethylene (HDPE).

Integral accessories

PKO 800 cover (800 mm, pedestrian rated).
Polyethylene extension rings.

Diameter

1000 mm.

Guidance for specification option:

Chamber diameter.

OuterDiameter

700 mm.

Weight

61 kg.

Heights

1760 mm.

Pumps

-

Manufacturer guidance

Various pump options are available depending on the customer’s

requirements. Contact manufacturer for details and insert requirements.

Sustainability data

Material

High density polyethylene (HDPE)

Literature

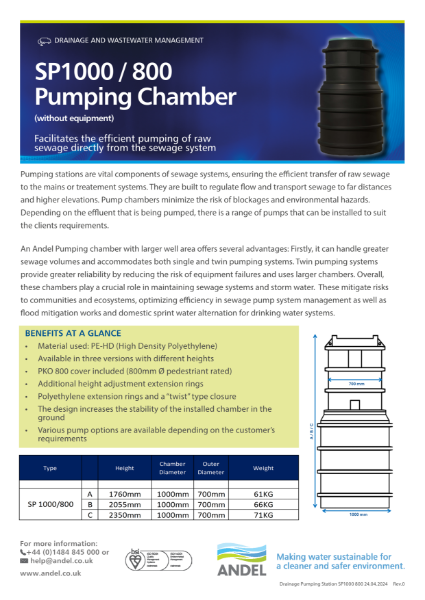

Drainage Pumping Chamber SP1000 800 Data Sheet

Drainage Pumping Chamber SP1000 800 Data Sheet

Similar products from Andel Ltd

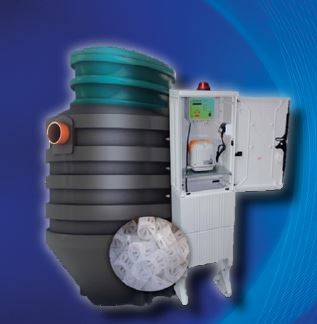

Drainage PRO24 Premium MBBR - Sewage Treatment Plant

Drainage PRO24 Premium MBBR - Sewage Treatment Plant

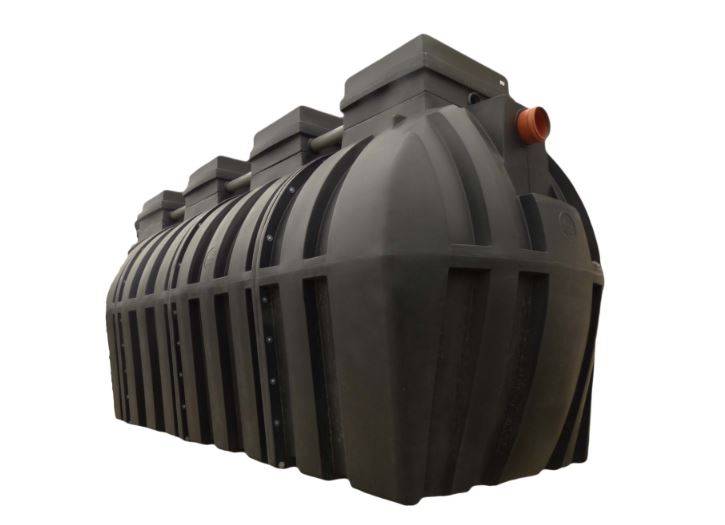

Drainage PRO50 Modular Treatment Plant
