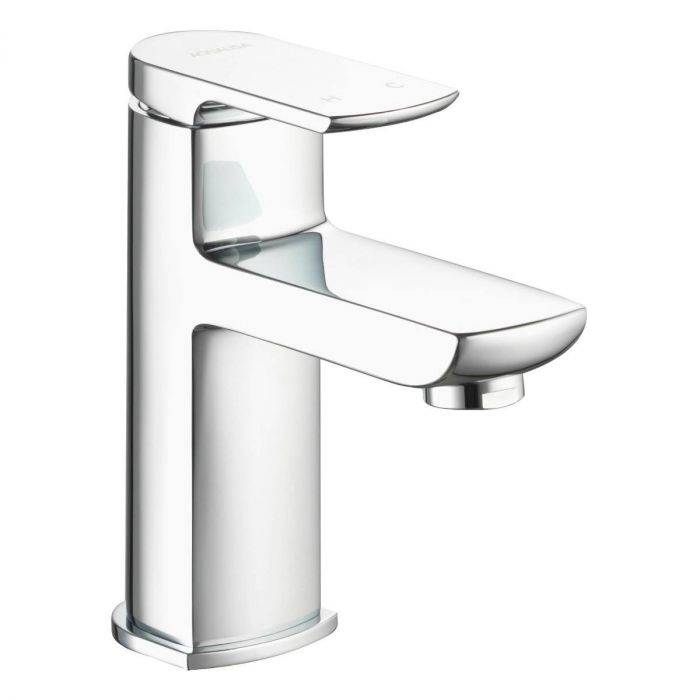

Downtown Pillar Tap + Eco version
Verified by manufacturer 1 month ago
DT.LPT.CH
DT.LPT.CH
WRAS
Certificate type
Aqualisa Downtown Pillar Tap + Eco version
Application
Mixer tap.
Description
The Downtown Basin Mixer Tap offers a compact, high-performance basin tap option in a stylish and contemporary design. The single soft squared paddle lever allows you to find your desired temperature with ease, and this bathroom sink tap comes complete with an aerator for softer, non-splash flow and a metal click-clack plug. Suitable for low- and high-pressure water systems, Aqualisa Downtown taps feature a solid brass body with durable zinc handles offering a contemporary look within the bathroom.
Also, available in large and small Eco versions.
Features and benefits:
- Suitable for both low and high pressure systems.
- Click-clack waste included.
- Soft square design.
- Brass body with zinc handles.
Water system compatibility:
- Gravity.
- Boosted gravity.
- Combi.
- Balanced high pressure water systems.
General information
Color | Silver Black |
Finish | Chrome Matt Gloss |
Material | Brass Zinc Plastic |
Shape | Square |
Length | 137 mm 140 mm |
Width | 50 mm |
Height | 130 mm 147 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Product range |
Specification data - Mixer taps
Approvals | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Basin mixer tap. |
Materials | |
Body | Brass, zinc, chrome plated, plastic. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | At 5 bar: 4.7 L/min (full hot), 4.6 L/min (full cold), 4.8 L/min (mixed). |
Water supply temperature (maximum) | 5–65°C. |
Integral accessories | Click-clack waste. |
MountingType | Deck mounted. |
Pressure | 0.2–5 bar (static). |
Handle type | Lever, dual control. |
InletConnectionSize | 2 x braided hose with 1/2" BSP female. |
Tap holes | One hole. |
Dimensions | 147 x 140 x 50 mm. |
ValveOperation | Pull, push. |
Weight | 1.397 kg. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Material | Brass Zinc Plastic |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | % Guidance for specification option: Packaging recycled content:
|
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Third party certifications
WRAS
DT.LPT.MB & DT.SPT.MB Approval Certificate - 2010110
Literature
Aqualisa Taps Brochure

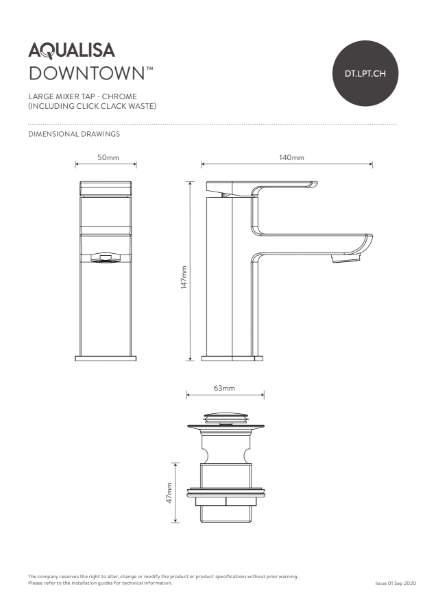

DT.LPT.CH_Spec Sheet

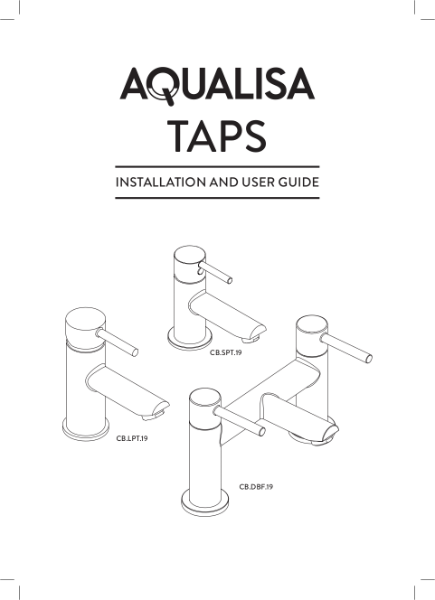

Aqualisa Taps Installation and User Guide

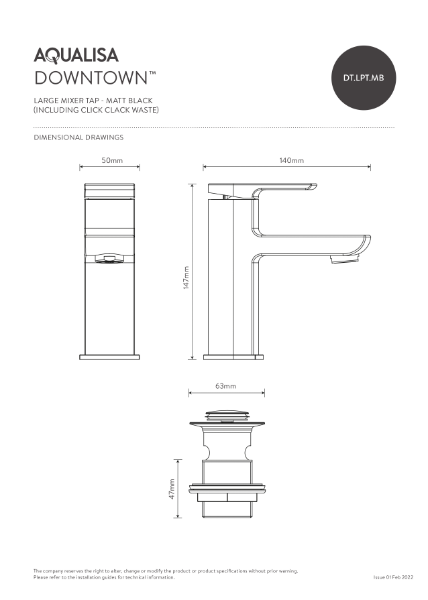

DT.LPT.MB_Spec Sheet
