Central Large Pillar Tap
Verified by manufacturer 6 months ago
WRAS
Certificate type

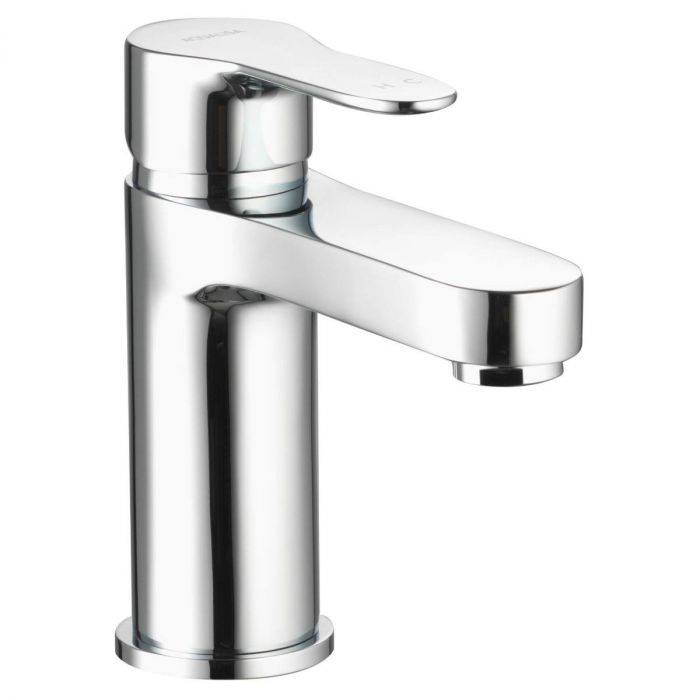

Aqualisa Central chrome pillar tap large.
Application
Mixer tap bathroom applications.
Description
The large Central Basin Mixer Tap offers a compact, high-performance basin tap option in a stylish and contemporary design. The single soft rounded paddle lever allows you to find your desired temperature with ease, and this bathroom sink tap comes complete with an aerator for softer, non-splash flow and a metal click-clack plug. Suitable for low- and high-pressure water systems, Aqualisa Central taps feature a solid brass body with durable zinc handles offering a contemporary look within the bathroom.
Features and benefits:
- Suitable for both low and high pressure systems.
- Click-clack waste included.
- Rounded design.
- Brass body with zinc handles.
Water system compatibility:
- Gravity.
- Boosted gravity.
- Combi.
- Balanced high pressure water systems.
General information
Color | Silver |
Finish | Chrome Gloss |
Material | Brass Zinc Plastic |
Shape | Oval |
Length | 143 mm |
Width | 50 mm |
Height | 143 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Product range |
Specification data - Mixer taps
Approvals | Water Regulations Advisory Scheme (WRAS)-approved. |
Form | Basin mixer tap, deck mounted. |
Materials | |
Body | Brass, zinc, chrome plated, plastic. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | At 5 bar: 4.3 L/m (full hot), 4.1 L/m (full cold), 4.4 L/m (mixed). |
Water supply temperature (maximum) | 5–65°C. |
Pressure | 0.2–5 bar (static). |
InletConnectionSize | 2 x braided hose with 1/2" BSP female. |
Tap holes | One hole. |
Handle type | Lever, dual control. |
Dimensions | 143 x 143 x 50 mm. |
ValveOperation | Pull, push. |
Weight | 1.2 kg. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | % Guidance for specification option: Packaging recycled content:
|
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
WRAS
CT.LPT.CH_certificate_1802141
Literature
Aqualisa Taps Brochure
CT.LPT.CH _Spec Sheet
Aqualisa Taps Installation and User Guide
