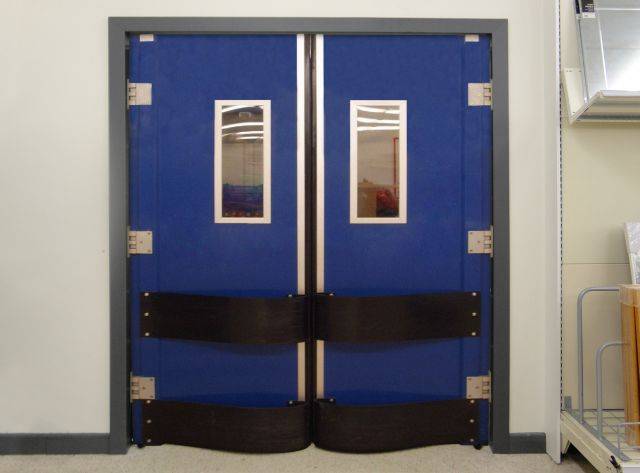

Double Action Crash Doors - GRP Flip Flap Doorset
Verified by manufacturer 3 days ago
High traffic, supermarket, retail and warehouse double action crash doors/ flip flap doors made from GRP.
Application
Double action crash doors/ flip flap doors suitable for the following applications:
- Supermarkets.
- Warehouses.
- Retail outlets.
- Bakeries.
- Kitchens.
- Food processing.
Description
A range of glass reinforced plastic (GRP) swing traffic doors.
Features and benefits:
- Specifically designed for high usage environments requiring a strong robust door. The doors are 100% recyclable, easy to operate and tough. All doors are specifically designed to offer reliable, safe and efficient operation, meeting the increasing demands of retail and warehouse environments.
- The seamless glass fibre door blade is easy to clean with a long trouble-free lifespan, making it ideal for supermarkets, sales floors and food processing facilities.
- Water resistant.
- Will not warp, rot, swell or rust.
- Lightweight and user friendly.
- Ideal for heavy traffic.
- Door frame options to suit different wall constructions.
- Double action hinges available in three variations.
- Fitted with polypropylene bumper as standard.
- Single glazed acrylic windows in aluminium frame.
- Smooth hygienic, easy-to-clean GRP surface.
General information
Color | Grey White Blue |
Finish | Smooth |
Material | Glass Reinforced Plastic (GRP) |
Shape | Rectangle Square |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Glass fibre-reinforced plastics (GRP) doorsets
Format | Single leaf.Double leaf.Manufacturer guidanceAvailable as single leaf or double leaf, dependent on size requirement, contact manufacturer for information. |
Door leaf size | Guidance for specification option: Consult manufacturer. Insert requirement. |
Performance | |
Fire resistance | |
Integrity | Fire tested up to 240 minutes to BS EN 1634-1:2014. |
Door leaf | |
Material | Guidance for specification option: Solid seamless moulded glass fibre reinforced polyester. The door blade tapers normally from 4.5–7 mm and has a 40 mm spine. |
Finish | Smooth non-porous gelcoat finish. |
Accessories | None.Grey rubber cladding, 300 x 900 mm.PVC seal in aluminium carrier to the full height of the hinge edge.Surface mounted shoot bolt with cylinder lock and thumb turn. |
Colour | White. Guidance for specification option: 337 BS-00-E-55. Dark Admiralty Grey. Guidance for specification option: BS-18-B-25. Ultramarine Blue. Guidance for specification option: RAL 5002. Silver Grey. Guidance for specification option: RAL 7001. Graphite Grey. Guidance for specification option: RAL 7024. |
Door frame | GRP. Stainless steel. Steel, 40 x 80 mm RHS, RAL. Guidance for specification option: Insert requirement. Steel, 40 x 80 mm RHS, white. Guidance for specification option: Standard. Timber. |
Hinges | Hold open. No stop. Stop/ no-stop. Manufacturer guidanceDelrin self-lubricating nylon spring hinges with 180° swing. Two per leaf with an additional hinge fitted depending on size. |
Vision panels | 200 x 300 mm. 200 x 600 mm. 200 x 700 mm. 200 x 900 mm. Manufacturer guidanceSingle glazed polycarbonate with aluminium frame. |
Bumper height | 250 mm. 480 mm. |
Protection | Guidance for specification option: Black polypropylene tear-drop spring bumpers to both sides of each leaf. PVC seal in aluminium carrier to the full height of the leading edge. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Sweden |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
9.6. Dortek Retail Doors
