Dortek Hygienic Hinged Lead Lined Fire Doors

Name: Dortek Hygienic Hinged Lead Lined Fire Doors
Brand: Dortek Ltd
SKU: eh4jgtHRQF6b8Ej8hSx9c4

Verified by manufacturer 12 days ago

Dortek Ltd

Product certifications:

ADSA
Certificate type
BM Trada
Certificate type

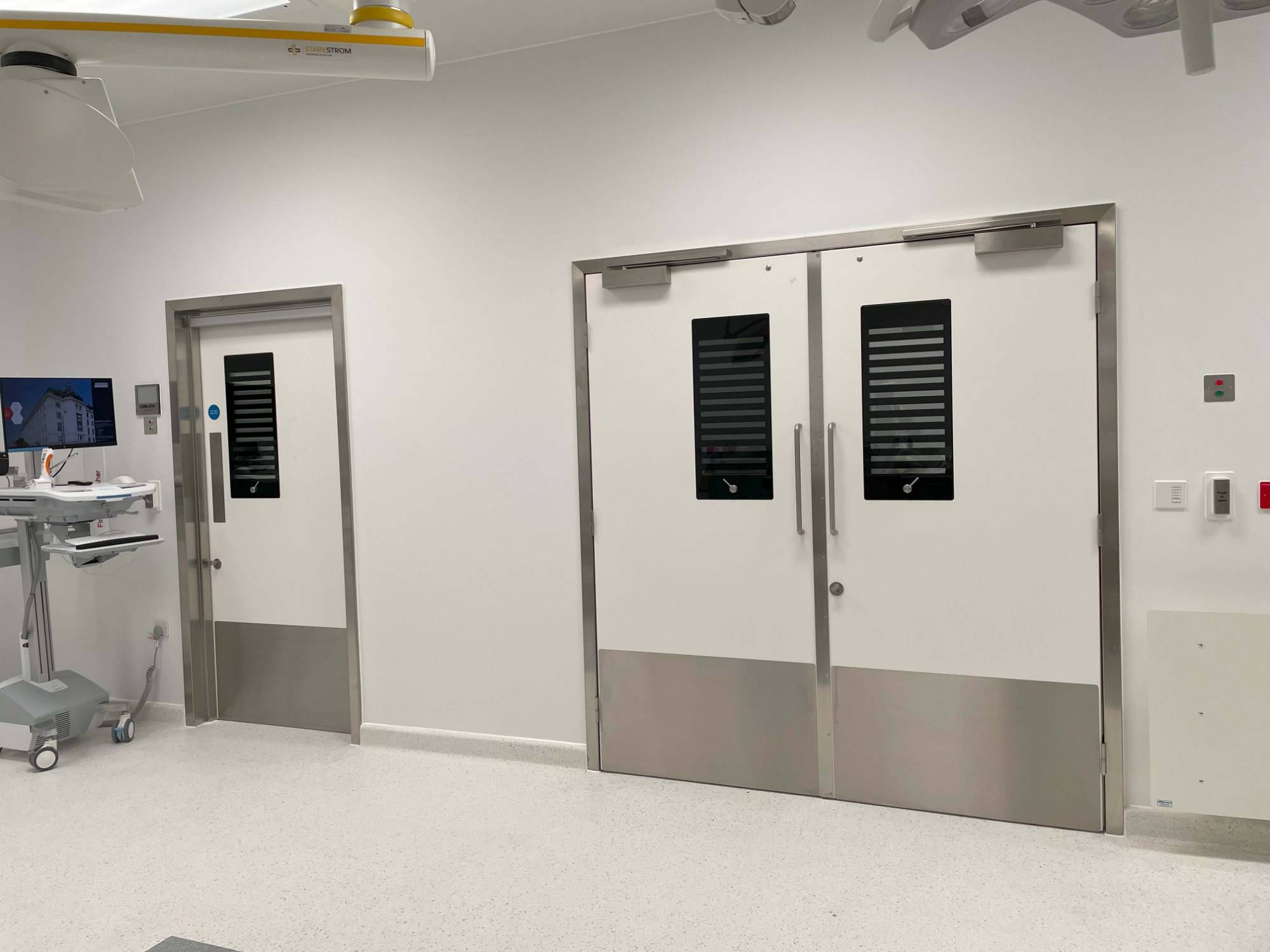

Hygienic GRP hinged lead lined X-ray fire door.

Jump to:

+44 (0)1482 226848 Website

Application

Suitable for the following applications:

X-ray theatres.
Operating theatres.
Isolation wards.
Hospitals.
Veterinary practices.
Research laboratories.

Description

Hygienic GRP hinged lead lined X-ray fire door.

Features and benefits:

Dortek hygienic lead lined fire doors are manufactured from high technology engineering composites using a unique closed mould process. This creates a strong, uniform product with no seams or joins on the door surface and no voids, holes or crevices within for bacteria to harbour.
The doorset incorporates fire protection up to two hours and lead sheeting in a range of thicknesses. The lead lining extends through the door frames, forming an effective barrier to radiation in all directions.
The doors are free of timber and other organic materials that promote bacterial growth. This makes them ideally suited to areas requiring maximum hygiene and cleanability. Extremely strong and durable, yet light and easy to operate. The doors built-in colour is aesthetically pleasing and requires no maintenance.
Fully sealed, ultra-clean construction.
User defined lead protection.
Fire resistant up to two hours.
Free from voids, ledges and troublesome lippings.
Water and chemical resistant.
Non porous and non-shedding.
Will not warp, rot, swell or rust.
Lightweight, strong and low maintenance.

General information

Color	White Red Grey Green Blue Purple Orange Yellow Silver Show more
Finish	Smooth
Material	Glass Reinforced Plastic (GRP) Guidance for specification option: Glass reinforced polyester.
Shape	Rectangle
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_59_24_34 Glass fibre-reinforced plastics (GRP) doorsetsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Product range	Doors / Hinged Doors Doors / Fire Doors Doors / Lead Lined Doors

Specification data - Glass fibre-reinforced plastics (GRP) doorsets

Classification data
Standard	Internal fire rated doorset to BS 476 Part 22, External non-fire rated. Internal fire rated doorset to EN 1634-1, External non-fire rated.
Format	Single action.
Door leaf size	2250 x 2440 mm. Guidance for specification option: Double leaf. 1250 x 2440 mm. Guidance for specification option: Double leaf. 1250 x 2040 mm. Guidance for specification option: Double leaf. 1450 x 2040 mm. Guidance for specification option: Double leaf. 2650 x 2440 mm. Guidance for specification option: Double leaf. 1850 x 2440 mm. Guidance for specification option: Double leaf. 2250 x 2040 mm. Guidance for specification option: Double leaf. 2650 x 2040 mm. Guidance for specification option: Double leaf. 2050 x 2440 mm. Guidance for specification option: Double leaf. 1850 x 2040 mm. Guidance for specification option: Double leaf. 1450 x 2440 mm. Guidance for specification option: Double leaf. 1050 x 2040 mm. Guidance for specification option: Double leaf. 1050 x 2440 mm. Guidance for specification option: Double leaf. 1650 x 2440 mm. Guidance for specification option: Double leaf. 2050 x 2040 mm. Guidance for specification option: Double leaf. 2850 x 2040 mm. Guidance for specification option: Double leaf. 1650 x 2040 mm. Guidance for specification option: Double leaf. 2850 x 2440 mm. Guidance for specification option: Double leaf. 525 x 2040 mm. Guidance for specification option: Single leaf. 625 x 2040 mm. Guidance for specification option: Single leaf. 725 x 2040 mm. Guidance for specification option: Single leaf. 825 x 2040 mm. Guidance for specification option: Single leaf. 925 x 2040 mm. Guidance for specification option: Single leaf. 1025 x 2040 mm. Guidance for specification option: Single leaf. 1125 x 2040 mm. Guidance for specification option: Single leaf. 1325 x 2040 mm. Guidance for specification option: Single leaf. 1425 x 2040 mm. Guidance for specification option: Single leaf. 525 x 2440 mm. Guidance for specification option: Single leaf. 625 x 2440 mm. Guidance for specification option: Single leaf. 725 x 2440 mm. Guidance for specification option: Single leaf. 825 x 2440 mm. Guidance for specification option: Single leaf. 925 x 2440 mm. Guidance for specification option: Single leaf. 1025 x 2440 mm. Guidance for specification option: Single leaf. 1125 x 2440 mm. Guidance for specification option: Single leaf. 1325 x 2440 mm. Guidance for specification option: Single leaf. 1425 x 2440 mm. Guidance for specification option: Single leaf.
Performance	-
Reaction to fire	- Manufacturer guidance Please consult manufacturer for details on internal and external fire ratings.
Acoustic performance	- Manufacturer guidance Please consult manufacturer for further details.
Thermal	- Manufacturer guidance Please consult manufacturer for further details.
Frame	-

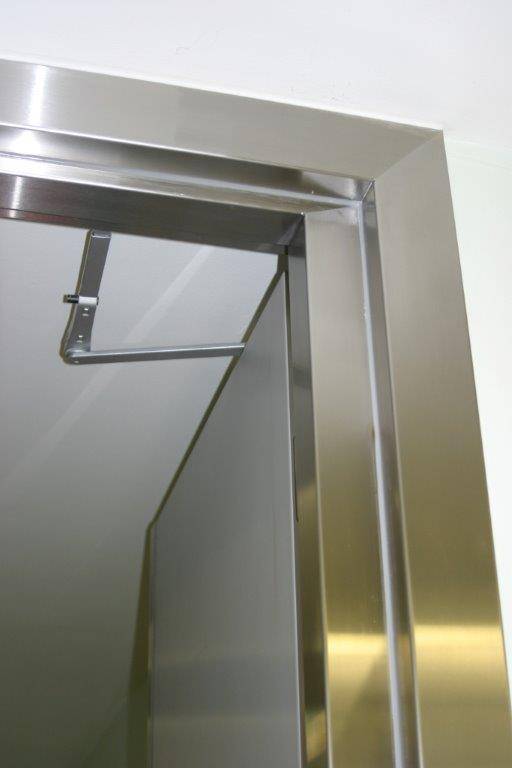

Materials	Stainless steel.
Finish and colour	Anodized.
Door leaf	-
Material	Guidance for specification option: 40 mm thick with a 2.5 mm thick seamless hygienic glass-fibre reinforced, fire retardant moulded polyester facing and a 35 mm thick vermiculite board core with density 380 kg/m³ and thermal conductivity of 0.05 W/mK.
Finish	Smooth non-porous fire retardant gelcoat finish.
Fire resistance	30 minutes. 60 minutes. 120 minutes.
Operation	Automated. Manual.
Colour	Signal White. Guidance for specification option: RAL 9003. LRV, 84.28. Pure White. Guidance for specification option: RAL 9010. LRV, 83.54. Anthracite Grey. Guidance for specification option: RAL 7016. LRV, 4.32. Light Grey. Guidance for specification option: RAL 7035. LRV, 56.84. Agate Grey. Guidance for specification option: RAL 7038. LRV, 42.77. Mint Green. Guidance for specification option: RAL 6029. LRV, 10.48. Ribbon Blue. Guidance for specification option: BS-18-E-50. LRV, 60.98. Cornflower Blue. Guidance for specification option: BS-20-E-51. LRV, 34.53. Sky Blue. Guidance for specification option: RAL 5015. LRV, 13.75. Sulfar Yellow. Guidance for specification option: RAL 1016. LRV, 71.34. Traffic Orange. Guidance for specification option: RAL 2009. LRV, 21.17. Vermilion. Guidance for specification option: RAL 2002. LRV, 13.75.
Door frame	GRP with lead concealed within frame. Stainless steel with lead concealed within frame.
X-ray protection	Code 3. Code 4. Code 5. Code 6. Code 7. Code 8.
Hinges	Stainless steel lift off - high load. Stainless steel lift off - standard. Stainless steel non lift off.
Vision panels	200 x 300 mm. 200 x 600 mm. 300 x 600 mm. 400 x 600 mm. Manufacturer guidance Triple glazed Firelite, lead lined laminate safety glass. Positioned 165 mm (minimum) from the leading edge or centrally in width.
Bumpers	PVC, 2 mm thick, smooth high impact, grey. Rubber, 3 mm thick, ribbed, black. Stainless steel, 0.9 mm thick.
Ironmongery	Guidance for specification option: Insert requirement, consult with manufacturer, a wide range is available.
Configuration	Guidance for specification option: Available as single leaf or double leaf, dependent on size requirement, contact manufacturer for information. Interlocking systems available - contact manufacturer for more information.
Door stoppers	Not required. Dortek enhanced, 60 mm frame stop. Dortek flush maglock.

Sustainability data

Contains Red List materials	No
Country of product manufacture	Ireland Guidance for specification option: or Sweden
Material	Glass Reinforced Plastic (GRP) Guidance for specification option: Glass reinforced polyester.
