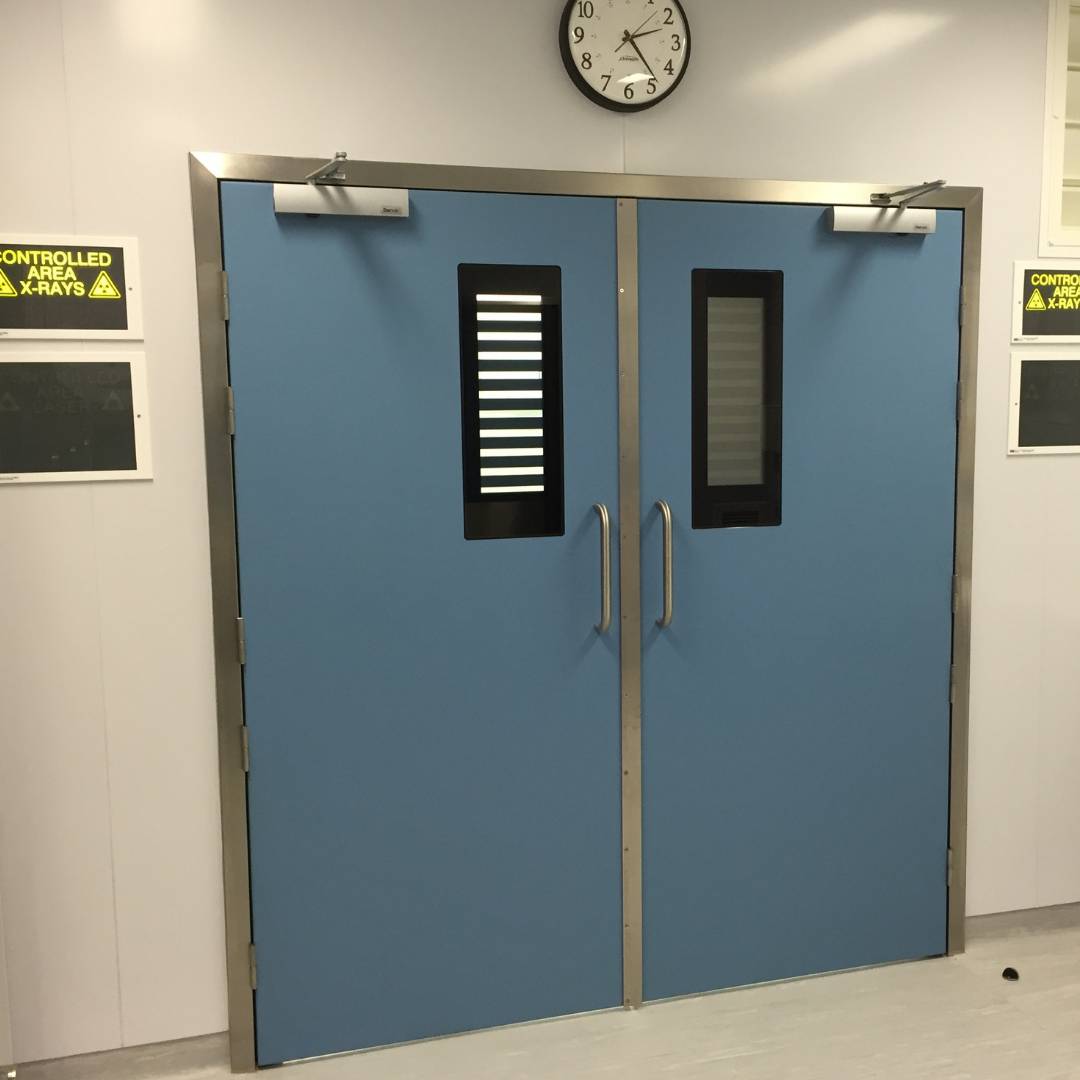

Dortek Hygienic Hinged Lead Lined Doors

Verified by manufacturer 5 months ago

Double leaf, GRP frame

Dortek Ltd Variant:
Third party certifications:
  • ADSA

    ADSA

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

Lead lined door made from Hygienic GRP. Single or double leaf doors designed to reinforce hygiene in hospital, healthcare and medical environments.

Jump to:
+44 (0)1482 226848 Website

Application

Suitable for the following applications:

  • Healthcare.
  • Cleanrooms.
  • Leisure.
  • Pharmaceutical manufacturing.
  • Food processing.
  • Kitchens.
  • X-ray theatres.
  • Operating theatres.
  • Isolation wards.
  • Hospitals.
  • Veterinary practices.
  • Research laboratories.


Description

Specialist hygienic GRP lead lined doors for use in X-ray environments.


Lead-lined door sets incorporate lead sheeting in a range of thicknesses. This protection extends through the door frames, forming an effective barrier to radiation in all directions.


Our x-ray doors have a smooth and seamless construction which is free from voids or ledges where bacteria can build up. This makes them ideal for healthcare applications where sterility and cleanability are essential.


Suitable for various industries, including healthcare environments, medical facilities and research laboratories. Wherever radiation protection is critical, the doorset offers x-ray protection and optimal safety.


Features and benefits:

  • Double or single leaf.
  • Choice of two frame materials.
  • The lead lined door does not harbour bacteria and is unaffected by moisture and common cleaning chemicals, making them particularly suitable in areas that have regular and rigorous cleaning regimes.
  • The x-ray door's built-in colour is aesthetically pleasing and requires no maintenance.
  • Manufactured to have an equal appearance to doors without lead protection.
  • Smooth and seamless, easy to clean.
  • Free from voids, ledges and troublesome lippings.
  • Non-porous and non-shedding.
  • Water and chemical resistant.
  • Will not warp, rot, swell or rust.
  • Low maintenance built in colour.
  • Extreme strength and durability.
  • Standard non-lead-lined versions also available, specified separately.

General information

Color

White

Red

Grey

Green

Blue

Show more

Material

Glass Reinforced Plastic (GRP)

Stainless steel

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

One year

Guidance for specification option:

12 Months Labour & Part Warranty.

Uniclass

Pr_30_59_24_34 Glass fibre-reinforced plastics (GRP) doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Doors / Hinged Doors
Doors / Lead Lined Doors

Specification data - Glass fibre-reinforced plastics (GRP) doorsets

Format

Double leaf.

Thickness

Manufacturer's standard.

Door leaf size

525 x 2040 mm.

625 x 2040 mm.

725 x 2040 mm.

825 x 2040 mm.

925 x 2040 mm.

1025 x 2040 mm.

1125 x 2040 mm.

1225 x 2040 mm.

525 x 2440 mm.

625 x 2440 mm.

725 x 2440 mm.

825 x 2440 mm.

925 x 2440 mm.

1025 x 2440 mm.

1125 x 2440 mm.

1225 x 2440 mm.

Special order.

Guidance for specification option:

Bespoke sizes available upon request - contact manufacturer.

Frame

-

Materials

GRP.

Finish and colour

Manufacturer's standard.

Door leaf

-

Thickness

40 mm.

Core

Manufacturer's standard.

Guidance for specification option:

High-density closed cell CFC- and HFC-free core with a thermal conductivity of 0.50 W/m·K.

Material

GRP.

Guidance for specification option:

2.5 mm-thick seamless hygienic glass-fibre reinforced moulded polyester facing.

Finish

Smooth non-porous gelcoat.

Guidance for specification option:

Colour specified separately below.

Glazing

-

Type

Double glazed laminate safety glass, 200 x 300 mm.

Double glazed laminate safety glass, 200 x 600 mm.

Double glazed laminate safety glass, 300 x 600 mm.

Double glazed laminate safety glass 400 x 600 mm.

Double glazed polycarbonate, 200 x 300 mm.

Double glazed polycarbonate, 200 x 600 mm.

Double glazed polycarbonate, 300 x 600 mm.

Double glazed polycarbonate, 400 x 600 mm.

Manufacturer guidance

Positioned 165 mm (minimum) from the leading edge or centrally in width.

Hardware

-

Manufacturer guidance

A wide range is available: consult with manufacturer and insert requirement.

Colour

White.

Poppy Red.

Silver Grey.

Pastel Green.

Pale Green.

Show more

Manufacturer guidance

Door leaf.

Hinges

Hold open.

No stop.

Stop/ no-stop.

Manufacturer guidance

Delrin self-lubricating nylon spring hinges with 180° swing.

Bumpers

Polypropylene, black, 250 mm high.

Polypropylene, black, 480 mm high.

PVC, 2 mm thick, smooth high impact, grey.

Rubber, 3 mm thick, ribbed, black.

Stainless steel, 0.9 mm thick.

Door lining

Lead, code 3.

Guidance for specification option:

Weight: 42.1 kg/m².

Lead, code 4.

Guidance for specification option:

Weight: 47.5 kg/m².

Lead, code 5.

Guidance for specification option:

Weight: 52.5 kg/m².

Lead, code 6.

Guidance for specification option:

Weight: 57.2 kg/m².

Lead, code 7.

Guidance for specification option:

Weight: 62.8 kg/m².

Show more

Sustainability data

Contains Red List materials

No

Country of product manufacture

Ireland

Guidance for specification option:

or Sweden

BIM objects

Platform Compatible Version
Revit

Revit 2015

1
