Dortek Double Action GRP Door - GRP Flip Flap Doorset
Verified by manufacturer 3 days ago
Single leaf, GRP frame, non-fire-rated
Single leaf, GRP frame, non-fire-rated
ADSA
Certificate type
Alcumus SafeContractor
Certificate type
BM Trada
Certificate type
CHAS
Certificate type
Constructionline Gold
Certificate type

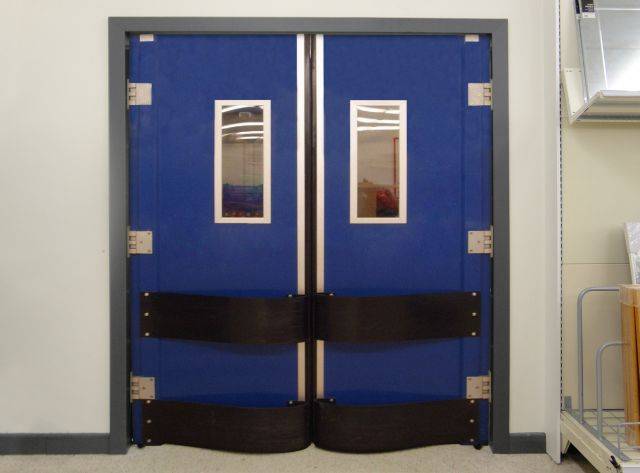

High traffic, supermarket, retail and warehouse double action crash doors/ flip flap doors made from GRP.
Application
Double-action crash doors/ flip flap doors suitable for the following applications:
- Supermarkets.
- Warehouses.
- Retail outlets.
- Bakeries.
Description
A range of glass reinforced plastic (GRP) swing double action doors.
Features and benefits:
- Smooth hygienic, easy to clean GRP surface.
- Single and double doors available.
- Lightweight and user friendly, suitable for heavy traffic.
- Easy to open using floor springs.
- Fitted with polypropylene bumpers as standard.
- Specifically designed for high usage environments requiring a strong robust door. The doors are 100% recyclable, easy to operate and tough. All doors are specifically designed to offer reliable, safe and efficient operation, meeting the increasing demands of retail and warehouse environments.
- The seamless glass fibre door blade is easy to clean with a long trouble-free lifespan, making it ideal for supermarkets, sales floors and food processing facilities.
- Water resistant.
- Will not warp, rot, swell or rust.
- Lightweight and user friendly.
- Ideal for heavy traffic.
- Door frame options to suit different wall constructions.
- Double action hinges available in three variations.
- Single glazed acrylic windows in aluminium frame.
General information
Color | White Red Grey Green Blue |
Finish | Smooth |
Material | Glass Reinforced Plastic (GRP) |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Guidance for specification option: 12 Months Labour and Part Warranty. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Specification data - Glass fibre-reinforced plastics (GRP) doorsets
Format | Single leaf, double-action. |
Thickness | Manufacturer's standard. |
Door leaf size | 525 x 2040 mm.625 x 2040 mm.725 x 2040 mm.825 x 2040 mm.925 x 2040 mm.1025 x 2040 mm.1125 x 2040 mm.1325 x 2040 mm.1425 x 2040 mm.525 x 2440 mm.625 x 2440 mm.725 x 2440 mm.825 x 2440 mm.925 x 2440 mm.1025 x 2440 mm.1125 x 2440 mm.1325 x 2440 mm.1425 x 2440 mm.Special order.Guidance for specification option: Bespoke sizes available upon request - contact manufacturer. |
Performance | |
Reaction to fire | Manufacturer guidancePlease consult manufacturer for details on internal and external fire ratings. |
Acoustic performance | Manufacturer guidancePlease consult manufacturer for further details. |
Thermal | Manufacturer guidancePlease consult manufacturer for further details. |
Frame | |
Materials | Glass reinforced plastic (GRP). |
Finish and colour | Manufacturer's standard. |
Door leaf | |
Thickness | 40 mm. |
Core | Manufacturer's standard.Guidance for specification option: High-density closed cell CFC- and HFC-free core with a thermal conductivity of 0.50 W/m·K. |
Material | Glass reinforced plastic (GRP).Guidance for specification option: 2.5 mm-thick seamless hygienic glass-fibre reinforced moulded polyester facing. |
Finish | Smooth non-porous gelcoat finish. |
Glazing | |
Type | Double glazed laminate safety glass, 200 x 300 mm.Double glazed laminate safety glass, 200 x 600 mm.Double glazed laminate safety glass, 300 x 600 mm.Double glazed laminate safety glass, 400 x 600 mm.Double glazed polycarbonate, 200 x 300 mm.Double glazed polycarbonate, 200 x 600 mm.Double glazed polycarbonate, 300 x 600 mm.Double glazed polycarbonate, 400 x 600 mm.Manufacturer guidancePositioned 165 mm (minimum) from the leading edge or centrally in width. |
Hardware | Manufacturer guidanceA wide range is available: consult with manufacturer and insert requirement. |
Colour | White. Poppy red. Silver grey. Pastel green. Pale green. Manufacturer guidanceDoor leaf. |
Hinges | Hold open. No stop. Stop/ no-stop. Manufacturer guidanceDelrin self-lubricating nylon spring hinges with 180° swing. |
Bumpers | Polypropylene, black, 250 mm high. Polypropylene, black, 480 mm high. PVC, 2 mm thick, smooth high impact, grey. Rubber, 3 mm thick, ribbed, black. Stainless steel, 0.9 mm thick. |
FrameType | Standard. Plant on frame. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Ireland Guidance for specification option: Or Sweden |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ADSA
ADSA
Alcumus SafeContractor
Alcumus SafeContractor
BM Trada
BM TRADA scheme for Q-Mark Fire Door Installation to STD052
BM Trada
BM TRADA scheme for Q-Mark Fire Door Maintenance to STD058
CHAS
CHAS
Constructionline Gold
Constructionline
Literature
6. Dortek GRP Doors Colour Chart
7. Dortek Hygienic Doors Brochure
