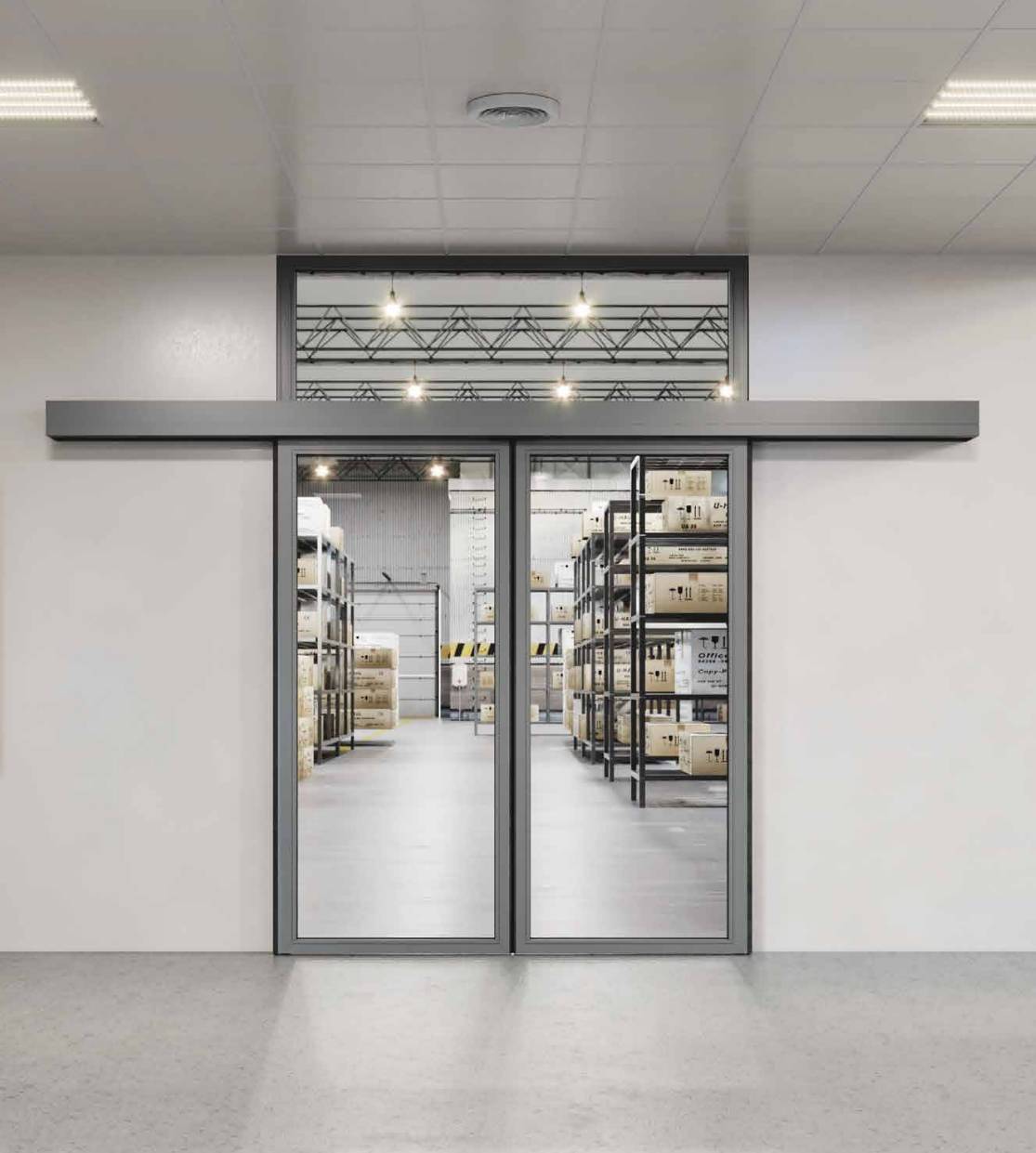

Doorson EI30-EI60 Fire Protection Sliding Door - Escape Fire Sliding Door
Verified by manufacturer 20 hours ago
Doorson 500F EI30
Doorson 500F EI30
Fire sliding door, Doorson 500 Series, functions as a standard automatic sliding door that is suitable for hospitals, offices, hotels, shopping malls and other public places where safety is paramount.
Application
Interior use, for escape routes.
Standard automatic sliding doors that are suitable for hospitals, offices, hotels, shopping malls and other public places.
Description
Fire sliding door, Doorson 500 Series, functions as a standard automatic sliding door that is suitable for hospitals, offices, hotels, shopping malls and other public places where safety is paramount. Range includes 500F, and 500EFS with panic escape.
Features and benefits:
- EI30/ EI60 Fire Resistance: Certified for 30 or 60 minutes of fire integrity and insulation (BS EN 1634-1).
- Automatic Emergency Closure: Mechanical spring system closes door during fire alarms or power failures, becoming a fire barrier in seconds (and a swing door 500EFS only).
- Fire Barrier for Escape Routes: Separates fire compartments on escape routes, preventing flame and heat spread (featuring a swing door panic escape function - 500EFS only).
- Safe Evacuation Swing: Self-closing swing mechanism (500EFS only).
General information
Color | Clear Other Black Silver White |
Finish | Glazed Powder-coated Metallic Painted Other |
Material | Glass Steel |
Shape | Rectangle Square |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/520 Sliding doors L20/55 Doorsets |
Specification data - Sliding door and partition sets
Classification data | |
Performance | Internal; fire-resisting. |
Arrangement | Single sliding leaf. Single sliding leaf with sidelight (leaf slides away from sidelight). Single sliding leaf with sidelight (leaf slides over sidelight). Single sliding leaf with two sidelights. Bi-parting double sliding leaves. Bi-parting double sliding leaves with sidelight to one side. Bi-parting double sliding leaves with sidelight to both sides. Manufacturer guidanceConsult manufacturer's literature for details.
Pocket sliding door configurations available, consult manufacturer for details. |
Track system | Manufacturer's standard. Guidance for specification option: Includes 170 mm-high drive. |
Door leaves | |
Construction | Manufacturer's standard. |
Finish and colour | Powder-coated, RAL. Guidance for specification option: Insert requirements, any RAL. Manufacturer guidanceFrame only or frame and panels depending on leaf construction required. |
Operation | Powered. Guidance for specification option: See below for Door opening options. |
Hardware | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Additional panels | Toplight(s). Not required. |
Door leaf size | Guidance for specification option: Consult manufacturer for details and insert requirements.
Maximum weight per sliding door leaf: 300 kg. Manufacturer guidanceInclude drawing and/ or schedule reference as required. |
Access control | Sensor. Guidance for specification option: Side safety sensor protects the opening path from both sides of the leaf. ToF sensors scan the human body and rapidly increase the level of safety. Mounting heights of up to 3 m. Detects people and objects in a range up to 2.5 m. Door switch COM 20 (touchscreen). Door switch COM 21 (mechanical). Door SMART SWITCH (touchless opening). Door SMART LOCK (touchless opening and locking). Door EMERGENCY SWITCH (open/ close). Door switch CLOUD GATEWAY (access control). Door Cloud mobile app. Guidance for specification option: The door mobile app enables users to change door regimes, take a look at the statistics and reset the parameters, as well as receiving notifications and warnings. Card reader. Guidance for specification option: Access controller with an integrated card reader. Card reader with keypad. Guidance for specification option: PIN code access control. Remote controller. Guidance for specification option: Remote controller for distant door opening and closing. First time opening switch. Guidance for specification option: One time entrance key opener SE-1 or a built-in wall SE-2. |
Opening | Push to open/ flush pull handles. Push to open/ flush pull handles plus fire switches. Guidance for specification option: Fire switch is a fire door functional display that presents mode of operation: normal operation, fire operation and escape direction (swinging opening escape direction or swinging opening opposite direction). Manufacturer guidanceEscape direction specified under Arrangement above. Push to open: escape direction; flush pull handle: rescue direction. |
Fire resistance | EI30. |
Standards | To EN 16005, DIN 18650, EN 1154, EN 13501-2, EN 16034. |
Speed | Opening/ closing: 0.3–0.7 m/s. Guidance for specification option: Opening time: 0–15 s (adjustable). |
Power consumption | 30/ 300 VA. |
Integral accessories | Electric lock. Self closer. |
Sustainability data
Material | Glass Steel |
Literature
Literature type
Doorson 500EFS Fire-Rated Sliding Doors

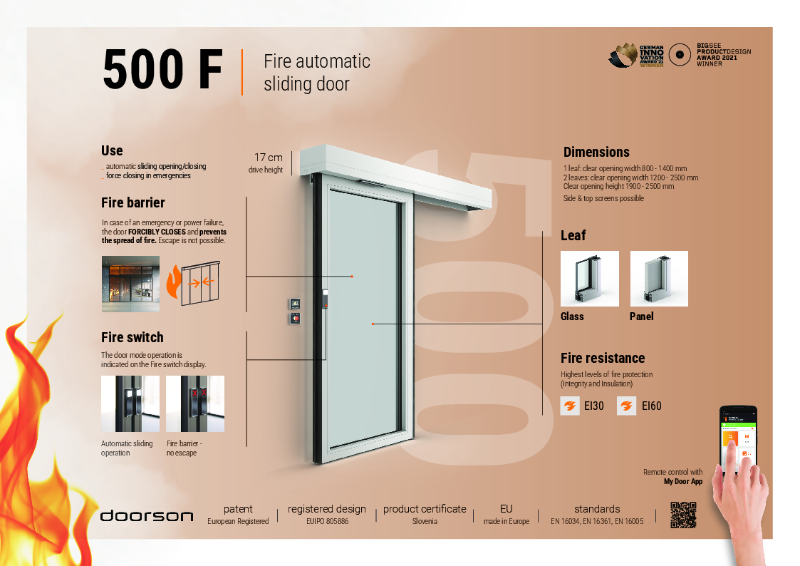

Doorson 500F Fire-Rated Sliding Doors

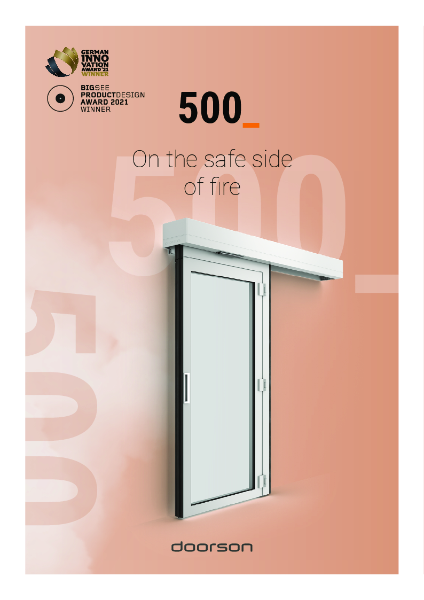

Doorson 500 Series, Fire-Rated Sliding Doors
