Dominator Eco with BSRIA flushing drains.
Variable flow systems.
Dominator Eco with BSRIA flushing drains.
Features and benefits:
Color | Gold |
Material | Brass |
Shape | Other |
Uniclass | |
CAWS | S92/435 Control valve sets |
SKU Code | DE40B DN15/15 |
Classification data | |
Standard | To BS 7350. Pressure testing to BS EN 12266-1 and performance testing in accordance with BSRIA BTS01. |
Regulating function | Flow rate. |
Connections | Compression. Guidance for specification option: Terminal end only. Solder. Guidance for specification option: Terminal end only (15 mm only). Manufacturer guidanceValve body: BSP taper. |
Weight | 1.6 kg. |
PressureRating | PN16. Guidance for specification option: Operating pressure across valve:
|
Operating temperature range | 0–90°C. |
Materials | DZR brass BS EN 12165 (CW602N). Guidance for specification option: Consult manufacturer's literature for full details. |
Country of product manufacture | United Kingdom |
Material | Brass |
Manufacturing plant location | |

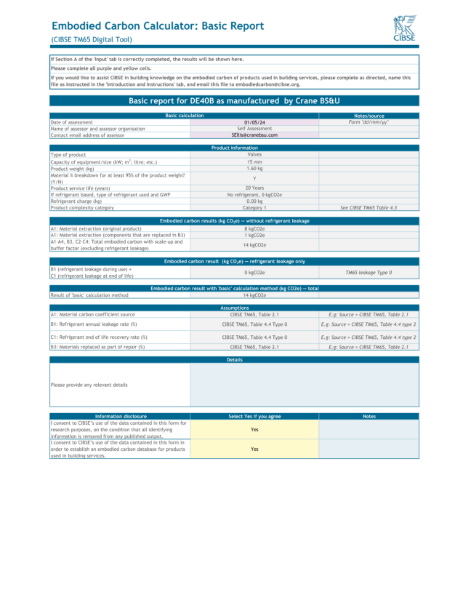

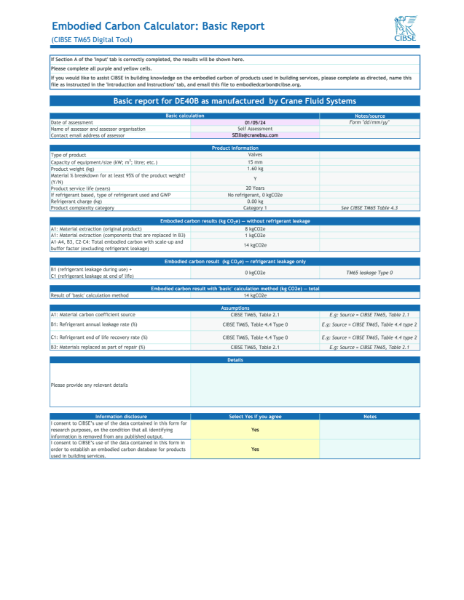

A1–A3 ('Production stage') | Embodied carbon as defined in BS EN 15804 |
Normalized unit | |
Declared unit | 14 kg CO₂ eq/unit Certified |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
