D1725 Pressure Reducing Valve
Verified by manufacturer 1 month ago
DN15
DN15
A brass pressure reducing valve.
Application
Suitable for water pipelines generally.
Description
A brass pressure reducing valve.
Features and benefits:
- PRVs enable control of pressure from boosted hot and cold water supplies to match site requirements.
- Includes male union tail-pieces for ease of installation, reducing time spent on site.
- Features an integral strainer preventing debris from affecting valve performance.
- Recommend that isolation valves are fitted upstream and downstream of the valve to enable isolation for cleaning of strainer.
- Performance in accordance with BS EN 1567 for quality assurance.
- Easy access for measuring the outlet pressure.
- A pressure gauge is available to measure outlet pressure for each installed valve and should be ordered separately.
- WRAS Approved to 80°C for drinking water applications.
General information
Color | Bronze |
Material | Brass |
Uniclass |
Specification data - Pressure-regulating valves
Standard | To BS EN 1567 and BS EN 10226-1. |
Form | Water pressure reducing. |
Adjustment | Adjustable. |
Operating conditions | |
Temperature (maximum) | +80˚C. |
Connections | Pressure-tight joints threaded to BS EN 10226-1. |
Accessories | None.Pressure gauge.Guidance for specification option:
|
Verification | |
Third-party certification | Water Regulations Advisory Scheme-approved. |
Inlets/outlets diameter | DN15. |
Dimensions | (45 + 104) x 140 mm. Manufacturer guidanceRefer to technical datasheet for detailed dimensions. |
Weight | 0.8 kg. |
Max flow rate | 0.35 l/s. |
Pressure | 25 BAR. Guidance for specification option:
|
Mesh size | 0.5 mm. |
Materials | DZR Brass EN 12165: CW625N, Polyamide PA6 GF30, Acetal POM, Stainless Steel AISI 304, Spring Steel EN 10270-1, Brass EN12165: CW617N, DZR Brass EN 12164: CW626N, Brass EN 12165: CW614N, EPDM and Pressed fibre (asbestos free). Guidance for specification option: Body, Plug, Nuts, Dismantling fittings, Internal parts, Other components: Brass; Bonnet: Polyamide; Cartridge: Acetal; Filter screen: Stainless steel; Spring: Spring steel; Diaphragm, Seat gaskets, O-rings: EPDM; Gaskets: pressed fibre. |
Sustainability data
Country of product manufacture | Europe |
Material | Brass |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
Literature

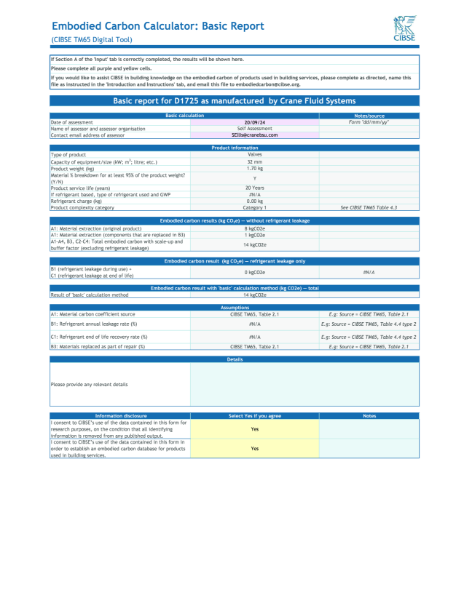

D1725 Pressure Reducing Valve - TM65-CRANE-D1725-DN15
D1725 Pressure Reducing Valve - TM65-CRANE-D1725-DN20
D1725 Pressure Reducing Valve - TM65-CRANE-D1725-DN25
D1725 Pressure Reducing Valve - TM65-CRANE-D1725-DN32
D1725 Pressure Reducing Valve - TM65-CRANE-D1725-DN40
D1725 Pressure Reducing Valve - TM65-CRANE-D1725-DN50
