DM1825 Pressure Reducing Valve
Verified by manufacturer 10 days ago
DN65
DN65

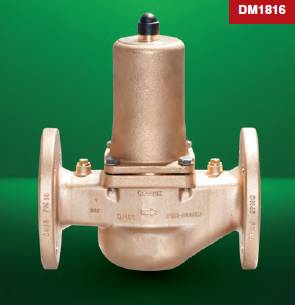

A bronze pressure reducing valve.
Application
Suitable for water pipelines only.
Description
A bronze pressure reducing valve.
Features and benefits:
- PRVs enable control of pressure from boosted hot and cold water supplies to match site requirements.
- Simple to install.
- Features an integral strainer preventing debris from affecting valve performance.
- WRAS approved.
- Adjustable outlet pressure from 1-8 bar.
General information
Color | Bronze |
Material | Bronze |
Uniclass | |
CAWS | S90/650 Flow reducing/ servicing valves S90/650 Flow-reducing/ servicing valves |
Specification data - Pressure-regulating valves
Standard | To BS EN 1567, BS EN 1092-3 and BS EN 1982. |
Form | Water pressure reducing. |
Adjustment | Adjustable. |
Operating conditions | |
Temperature (maximum) | +85˚C. |
Maximum working pressure | 25 BAR.Guidance for specification option:
|
Connections | Flanged BS EN 1092-3. |
Accessories | None.Pressure gauge.Guidance for specification option:
|
Verification | |
Third-party certification | Water Regulations Advisory Scheme-approved, DVGW, PED97/23/EC. |
Inlets/outlets diameter | 65 mm. |
Dimensions | (235 + 93) x 290 mm. Manufacturer guidanceRefer to technical datasheet for detailed dimensions. |
Weight | 20 kg. |
Operating temperature range | -10 to +85°C. |
Materials | Bronze BS EN 1982 CC499K, Brass CW614N, Stainless steel SS316, Spring steel DIN 17223 1.1200, Stainless Steel SS 304 and EPDM. Guidance for specification option: Body, Internal parts: Bronze; Internal parts: Brass; Internal parts, Strainer screen: Stainless steel; Spring: Spring steel; Seal: EPDM. |

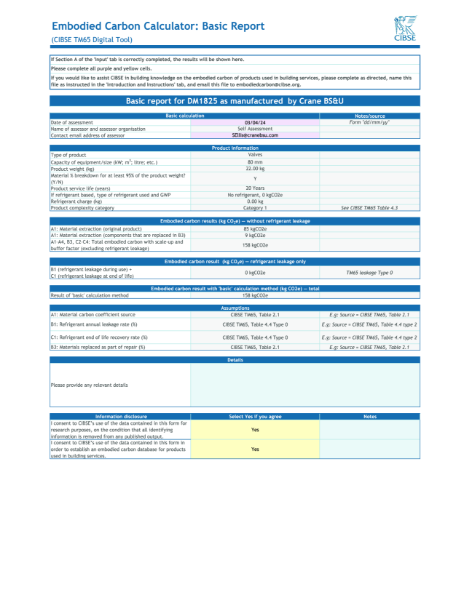

Sustainability data
Country of product manufacture | Europe |
Material | Bronze |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
