Dished Channels
Verified by manufacturer 4 months ago

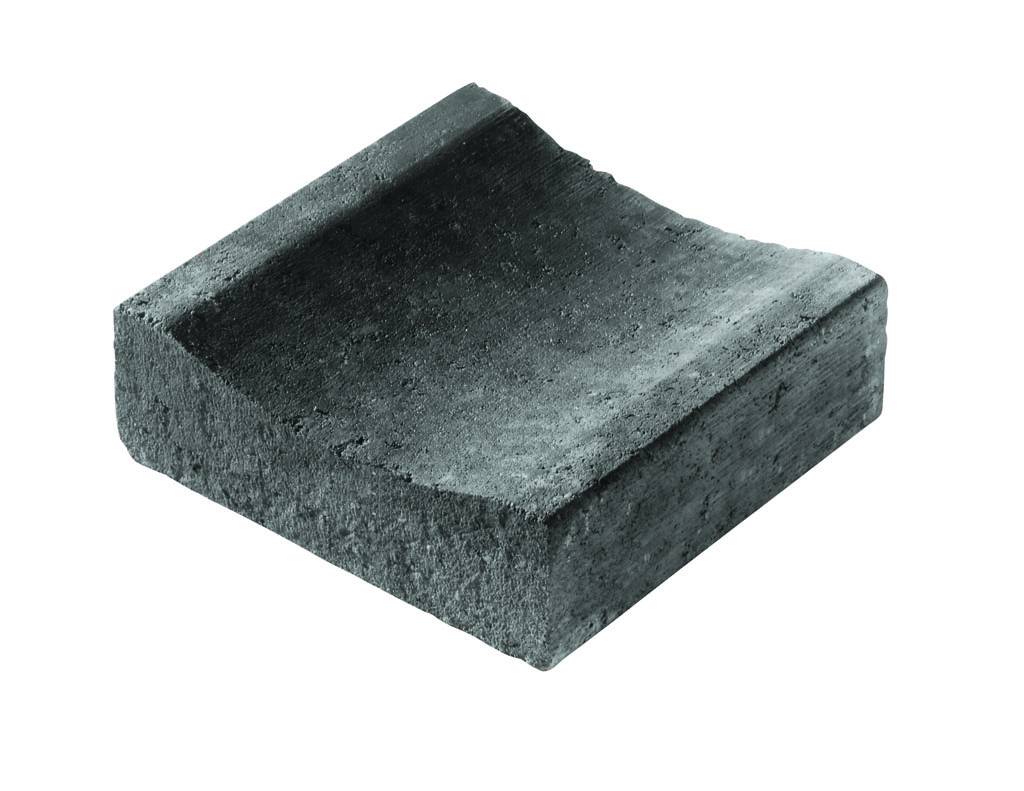

Straight section
Straight section
Precast concrete dished channels for draining water away to soakaways within property boundaries, in accordance with Government legislation.
Application
Domestic and residential use; hardstanding for vehicular and pedestrian pavements including local authority footways, cycle tracks,
car parks, residential roads, domestic drives, roof coverings.
Description
Precast concrete dished channels for draining water away to soakaways within property boundaries, in accordance with Government legislation.
General information
Color | Red Grey Brown |
Material | Concrete Guidance for specification option: Precast (semi-dry-pressed and vibrated). |
Shape | Square |
Length | 200 mm |
Width | 200 mm |
Height | 60 mm |
Uniclass | |
CAWS | Q24/110 Conventional concrete block paving Q24/10 Conventional concrete block paving |
Specification data - Concrete kerbs
Standard | To BS EN 1338: 2003. |
Physical properties | |
Colour | Autumn Gold.Brindle.Burnt Oak.Charcoal. |
Finish | As cast. |
Profile | |
Designation | CD. |
Dimensions | 200 x 200 x 60 mm.Guidance for specification option: Tolerance on working dimensions: Thickness ±3 mm ; Plan size ±2 mm. Chamfer: 6 x 4 mm. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3.Guidance for specification option: ≤23 mm, determined by Wide Wheel Abrasion test. |
Bending strength | Manufacturer's standard.Guidance for specification option: Characteristic tensile splitting strength: ≥3.6 MPa; Failing load: ≥250 N/mm. |
Unpolished Slip Resistance Value (USRV) (minimum) | ≥55; Potential for slip: Low. |
Recycled content (minimum) | Guidance for specification option: Manufacturer's standard. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete Guidance for specification option: Precast (semi-dry-pressed and vibrated). |
Recyclability | 100% |
Expected Life | 40 year |
Literature

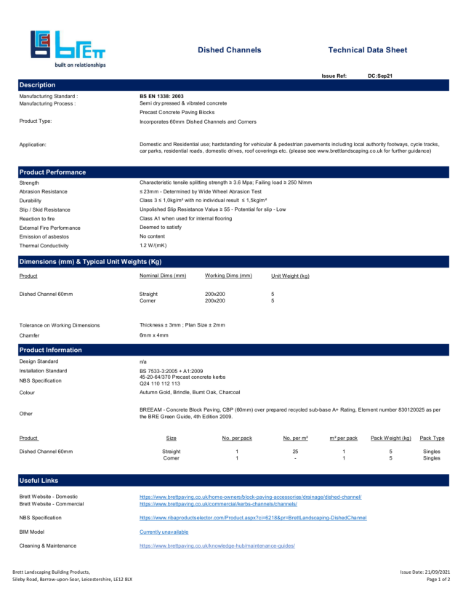

Dished Channel TDS Sept 21
