Delta Root Block (Radonsperre)

Verified by manufacturer 10 days ago

Delta Membrane Systems Ltd

Radon barrier and root barrier protection of primary waterproofing systems

Jump to:
+44 (0)1992 523523 Website

Application

  • For use on sites with radon gas.
  • Protects against moisture, acting as a damp-proof membrane (DPM).
  • Suitable for horizontal applications.
  • For foundations and building walls.
  • Easy to lay out on large surface areas.

Description

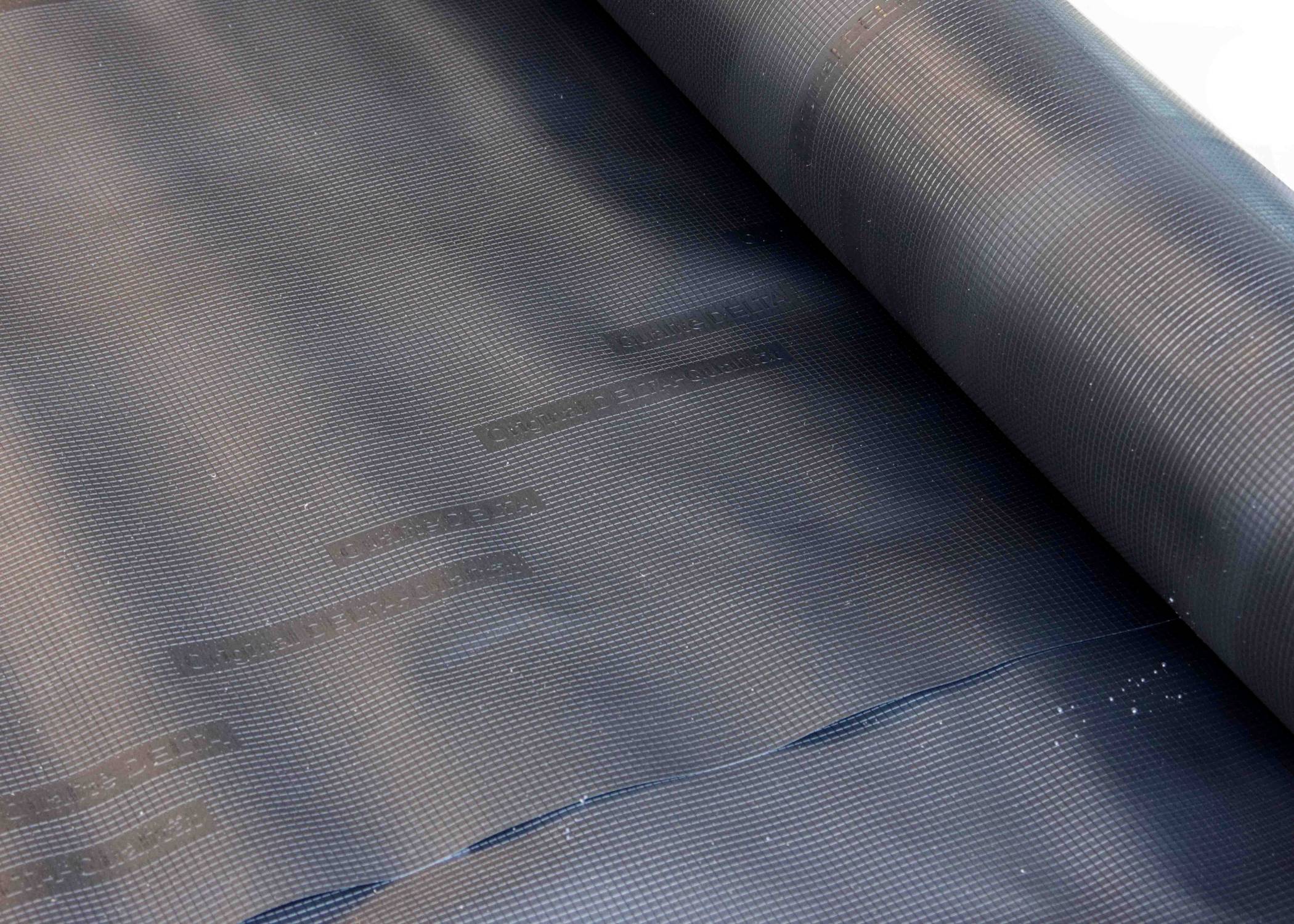

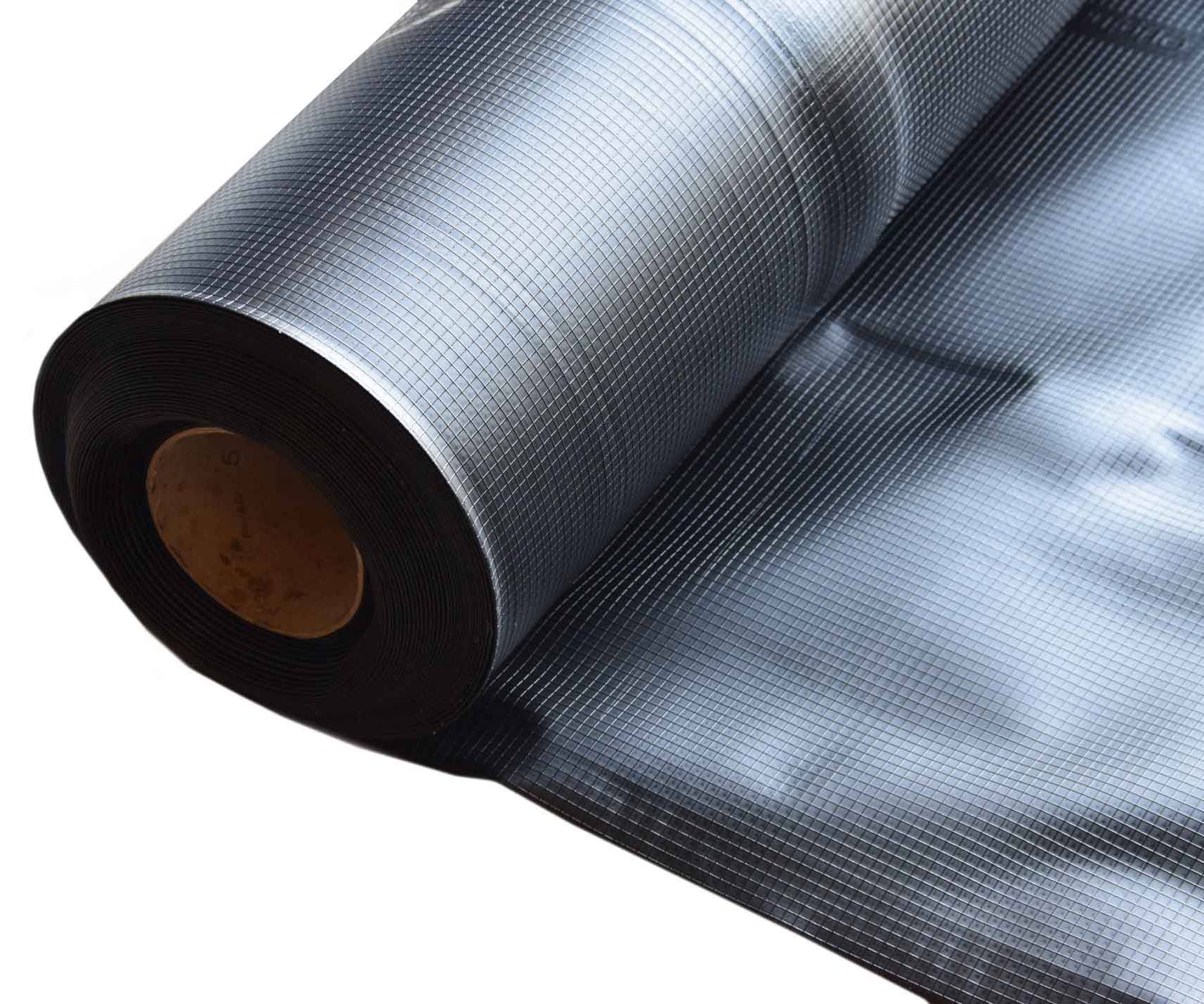

A flexible, loose-laid gas barrier. It consists of a polyolefin blend forming a durable, tough sheet. It has an anti-slip profile on both sides to stabilize the sheet and optimize its adhesion to mortar.


The barrier offers protection from radiation of radon gas and moisture, even at extreme temperatures. The material will serve as a damp course under plaster floors.


Features and benefits:

  • Resistant to radon and carbon dioxide gas.
  • Extremely durable and tear-resistant.
  • Flexible and easy to adapt.
  • Resistant to extreme temperatures.
  • UV-stabilized.
  • Long-term protection.

General information

Color

Black

Material

Polyolefin

Length

25000 mm

Width

4000 mm

Warranty description

Ten year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

D21/350 Gas-retardant membrane

F30/360 Gas-resistant damp-proof courses/ cavity trays

F30/54 Gas-resistant dpcs/ cavity trays

J40/140 Loose-laid plastics or rubber sheet gas-retardant membranes

J40/35 Loose-laid plastics or rubber gas-retardant membranes

Specification data - Plastics sheets

Material

Polyolefin.

Purpose

Damp-proof membrane.

Third-party certification

To DIN 16726.

Physical properties

-

Colour

Black.

Weight (minimum)

280 g/m².

Dimensions

-

Thickness (minimum)

0.4 mm.

Width (minimum)

500 mm.

1500 mm.

4000 mm.

Roll length (minimum)

25 m.

Accessories

None.

DELTA®-FLEXX BAND.

Highly adhesive self-sealing tape.

DELTA®-MAUERWERKSECKE.

Problem-free creation of internal and external corners with DPC.

DELTA®-THAN.

Permanently elastic sealing compound.

DELTA®-THENE-BAND T 300.

Tailored strips for application to edges, corners, grooves and pipe lead-throughs.

Finish

Chequered, rough.

-

Tear strength

  • Tear strength (to DIN 16726) longitudinal: 150 N/5 cm.
  • Tear strength (to DIN 16726) transversal: 100 N/5 cm.


-

Column

Water column: 4 m per 72 hours.

-

Sustainability data

Contains Red List materials

No

Recyclability

No

Recycled content

0 %

Literature

External Waterproofing Ancillary Product Brochure

External Waterproofing Ancillary Product Brochure

Delta Podium Deck Brochure (Waterproofing & Drainage Protection)

Delta Podium Deck Brochure (Waterproofing & Drainage Protection)
