Delta NP Drain - External Drainage and Protection Membrane - Double-Dimpled Sheet
Verified by manufacturer 4 months ago
Delta Drain is a high-density polyethylene (HDPE) double dimpled sheet with integral polypropylene geotextile.
Application
Suitable for the protection of foundation wall waterproofing against mechanical damage, and for reliable drainage of stratified and slope water.
Description
Delta NP Drain is a high-density polyethylene (HDPE) double-dimpled sheet with integral polypropylene geotextile for the protection of foundation wall waterproofing against mechanical damage, and for reliable drainage of stratified and slope water.
General information
Color | Brown |
Material | High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 20000 mm |
Width | 2000 mm |
Height | 8 mm |
Warranty description | 30 year |
Uniclass |
Specification data - High-density polyethylene (PE-HD) studded sheets
Standards | To DIN EN 13252. |
Certification | Avis Technique du CSTB n°7/03-1367” test certificate; CE 0799-CPD-13 seal. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 ARCHICAD | - | 1 |
 AECOsim | - | 1 |
 Revit | Revit 2016 | 9 |
 Vectorworks | - | 1 |
 IFC | IFC2X3 | 8 |
Literature

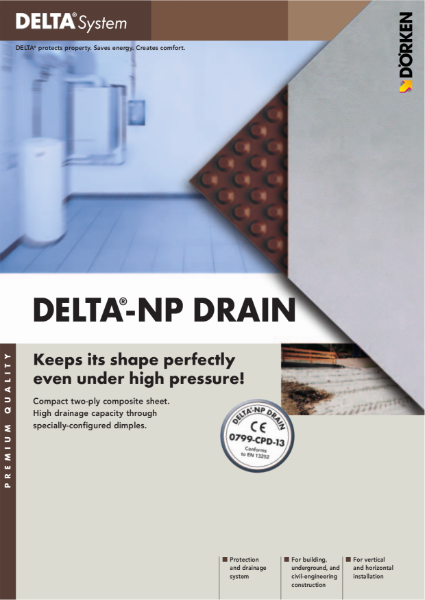

Delta-NP Drain Protection and Drainage System

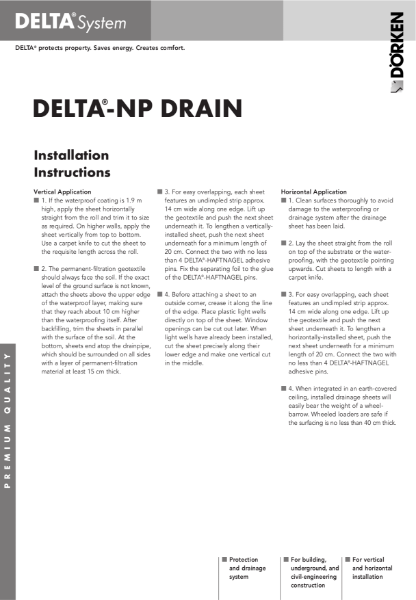

Delta-NP Drain Installation Instructions
