Delta Geo-Drain - Waterproofing And Drainage Membrane - Compact Protection and Drainage System

Verified by manufacturer 3 months ago

Delta Membrane Systems Ltd

A four-ply material for use as a compact protection and drainage system for waterproofing in building construction.

Jump to:
BOS
+44 (0)1992 523523 Website

Application

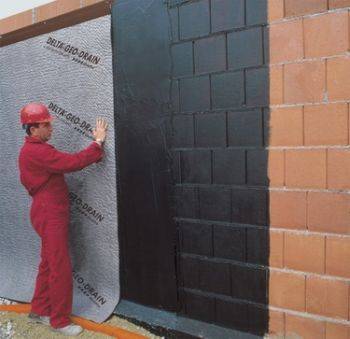

Suitable for use as a compact protection and drainage system for waterproofing in building construction.

Description

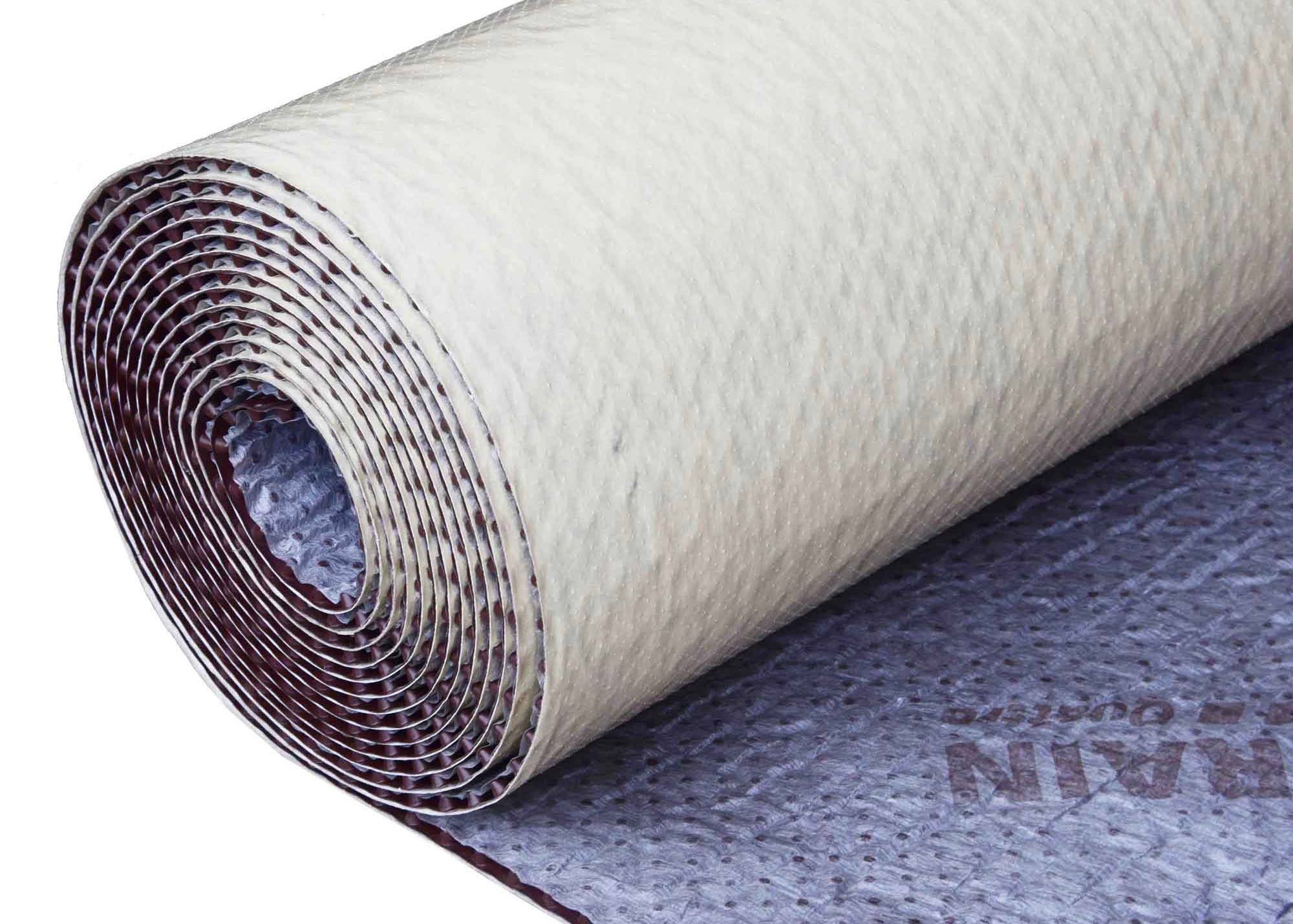

A four-ply material for use as a compact protection and drainage system for waterproofing in building construction.


Features and benefits:

  • The four-ply construction enables water to be drained off before reaching the waterproof coating.
  • Suitable for vertical gas (methane and Radon) drainage when combined with a classical filtration gravel layer underneath the floor slab. The top apertures of the drainage sheet should be covered with a layer of gravel to enable the gas to escape into the ambient air without difficulty.
  • Joints have a self-adhesive edge strip.
  • Delta® dimpled sheets are rot-proof, resisting saline solutions, inorganic acids, alkalines, and polar liquids.
  • They are proof against attack or modification by any of the minerals, humic acids, and bacterial catabolic products that naturally occur in the soil, as well as by bacteria, fungi, and micro-organisms.
  • The response of all sheet types to soil or underground water is completely neutral, nor will they leach any harmful and/ or ecologically doubtful substances.
  • Care should be taken to ensure that they are not permanently exposed to UV radiation.

General information

Color

Brown

Material

High density polyethylene (HDPE)

Shape

Rectangle

Length

12500 mm

Width

2000 mm

Height

9 mm

Warranty description

30 year

Uniclass

Pr_25_57_51_36 High-density polyethylene (PE-HD) studded sheetsPrimary

CAWS

J40/295 Geocomposite studded cavity drainage/ venting membrane

Q37/350 Drainage layer

Specification data - High-density polyethylene (PE-HD) studded sheets

Standards

To BS EN 13252.

Guidance for specification option:

Certificate No. 0799-CPD-13.

Certification

CE marked.

Accessories

Delta®-Geo-Drain Clip.

Guidance for specification option:

Attachment clip for fastening Delta®-MS-Profile.

Delta®-Stop Pin.

Guidance for specification option:

Adhesive pin to facilitate the installation of the dimpled sheet.

Delta®-Plug.

Guidance for specification option:

Nylon percussion plug for concrete or masonry.

Delta®-MS Knopf.

Guidance for specification option:

Washer fastening.

Delta®-MS Profile.

Guidance for specification option:

Brown moulding cap to protect the upper edge of the sheet.

Delta®-Terraxx-Profile.

Guidance for specification option:

Moulding cap for application to insulation boards (60–100 mm).

Delta®-Terraxx-Schraube fixing.

Guidance for specification option:

For fastening to perimeter insulation boards.

CompressiveStrength

400 kN/m².

Guidance for specification option:

Transient loading, approximately.

Permanent loading is approximately 90 kN/m².

Installation depth

10 m.

Guidance for specification option:

Maximum.

Service temperature range

-30°C to–+80°C.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
