Delta MS Drain - Waterproof Protection Layer For Basements

Name: Delta MS Drain - Waterproof Protection Layer For Basements
Brand: Delta Membrane Systems Ltd
SKU: uWitCUcSXHxicQsHFn8btz

Verified by manufacturer 5 months ago

Delta Membrane Systems Ltd

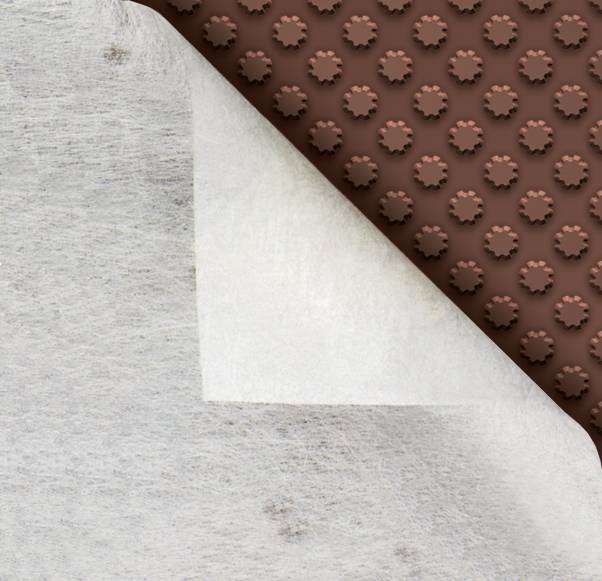

High density polyethylene protection layer for basement waterproofing. The dimpled profile is covered with a geotextile, which provides a drainage route for groundwater.

Jump to:

BOS

+44 (0)1992 523523 Website

Application

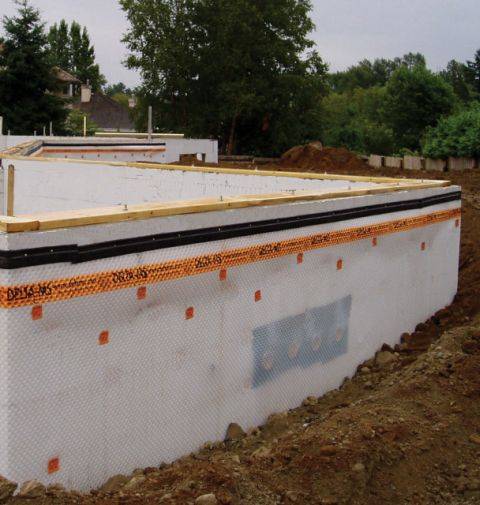

Suitable for structural waterproofing, primarily a drainage protection layer for the waterproofing system.

Description

MS Drain serves as a drainage layer with fused-on geotextile. The fused-on hydrophilic geotextile ensures water drains reliably. The sheet features a high compressive strength of c. 500 kN/m² as well as more than 8900 dimples per m².

The Delta MS sheet features a contact area four times greater than that of conventional dimpled sheets, which means that the distribution of pressure on the waterproofing is four times better. The fused-on hydrophilic geotextile ensures that water drains off safely and reliably.

General information

Color	Brown
Material	High density polyethylene (HDPE)
Shape	Rectangle Guidance for specification option: Supplied in rolls.
Length	30000 mm
Width	2000 mm
Height	4 mm
Warranty description	30 year

Uniclass	Pr_25_57_51_36 High-density polyethylene (PE-HD) studded sheetsPrimary
CAWS	J40/295 Geocomposite studded cavity drainage/ venting membrane

Specification data - High-density polyethylene (PE-HD) studded sheets

Standard	To BS EN ISO 13433.
Stud height	4 mm. Guidance for specification option: Dimple height. Air gap between dimples: Approx. 2.6 L/m². Opening size, to BS EN ISO 13433: 0.6 mm.
Sheet thickness	Manufacturer's standard.
Weight (minimum)	Manufacturer's standard.
Colour	Brown.
Performance characteristics	-
Flow rate	1.0 L/s/m. Guidance for specification option: Approximate drainage capacity.

Accessories	Adhesive pins. Guidance for specification option: For fixing laps. Edge profile. Guidance for specification option: Top edge protector. Plastic percussion plug. Guidance for specification option: For fixing sheets when nails cannot be used. Terraxx screw. Guidance for specification option: For fixing sheets to insulation boards.
Service temperature range	-30 to +80°C.
Roll size	30 x 2 m.
Typical compressive strength	500 kN/m² approx.
