Dektite® Diverter - Roof Flashing

Name: Dektite® Diverter - Roof Flashing
Brand: DEKS INDUSTRIES EUROPE LIMITED
SKU: cjZaX5prrM8cUfopzRYhHP

Verified by manufacturer 3 days ago

DEKS INDUSTRIES EUROPE LIMITED

Diverter flashing which helps to reduce and divert rainwater pooling around pipes.

Jump to:

Request BIM

01275 858866 Website

Application

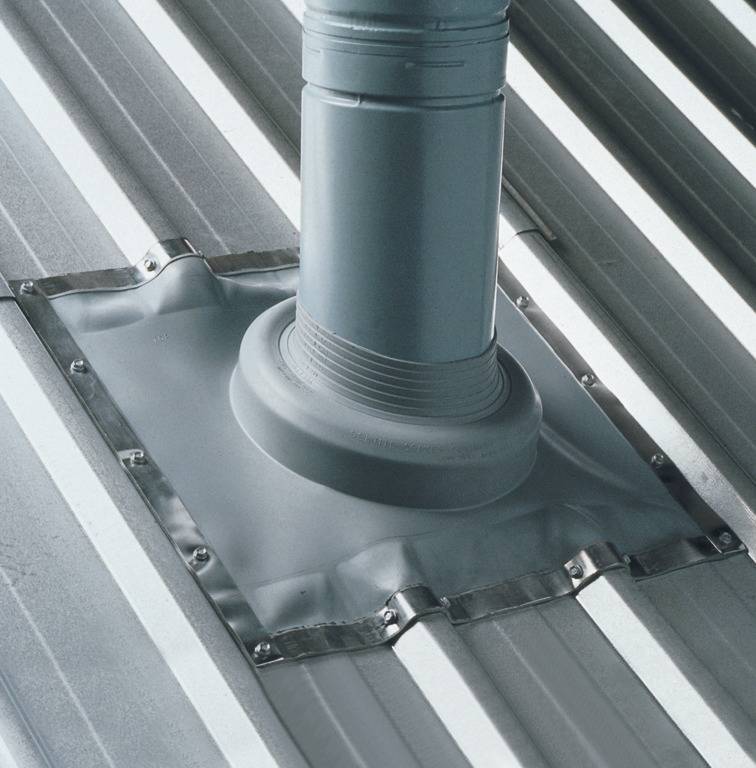

Ideal for roof penetrations prone to water pooling, the Diverter is designed to improve water management and prevent damage related to ponding near pipes on various roof profiles, especially where roof pitch is an issue.

Description

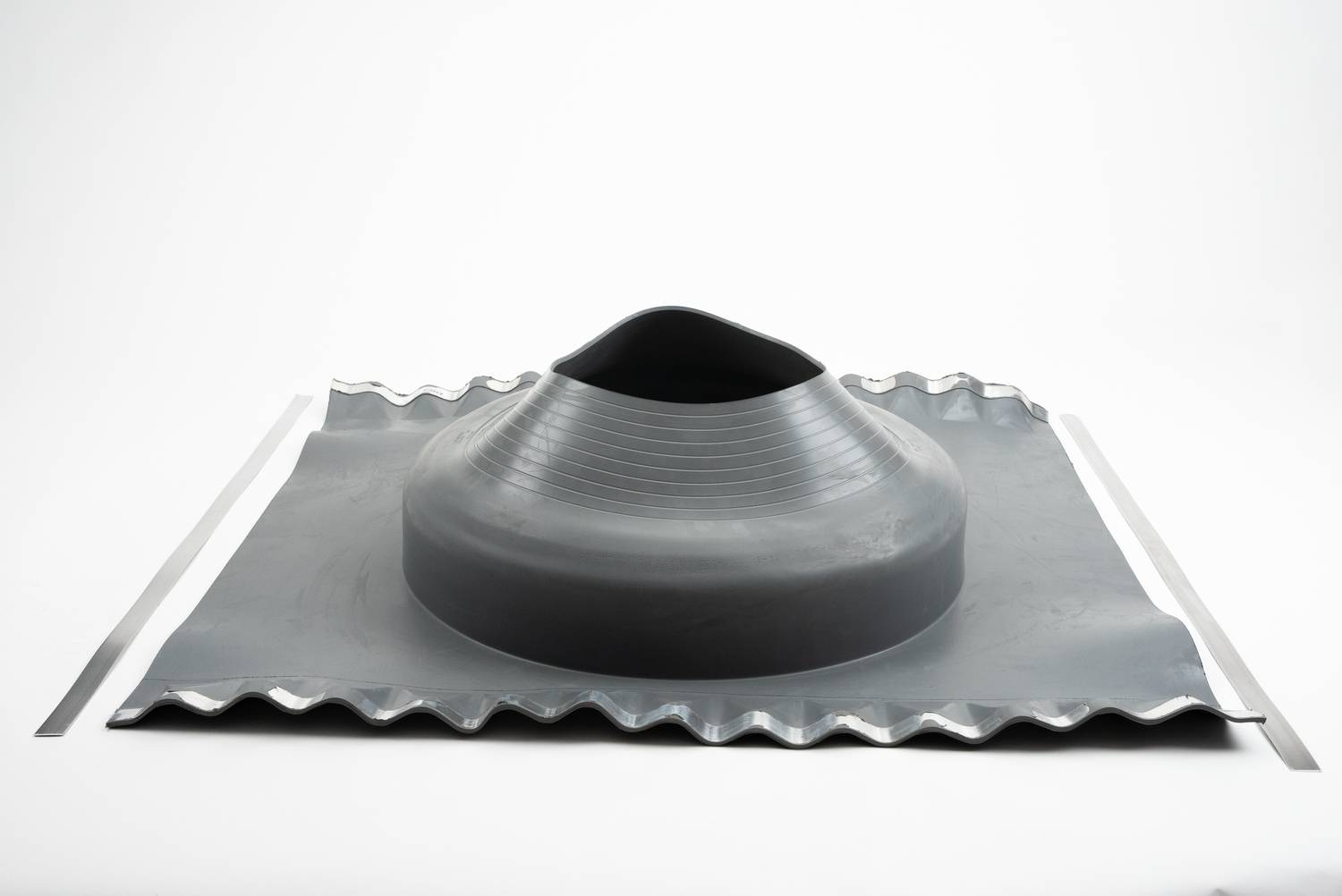

The Dektite® Diverter flashing helps to reduce and divert rainwater pooling around pipes on low or high pitched and deep-ribbed roofs. It features a large base area which minimizes ponding or damming to protect the roof integrity.

Features and benefits:

Dramatically reduces rainwater pooling around pipe penetrations.
Suitable for use on very low or high pitched roofs and deep-ribbed roofing profiles.
Compatible with multiple pipe sizes and roof pitches.
Durable EPDM rubber construction and robust weather resistance.

General information

Color	Grey Red
Finish	Smooth
Material	EPDM Silicone
Shape	Rectangle
Length	410 mm 485 mm 708 mm 1006 mm 750 mm
Width	360 mm 460 mm 635 mm 905 mm 660 mm
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_35_90_30_72 Recycled plastics flashingsPrimary
CAWS	H71/50 Flashings H71/470 Flashings H31/481 Flashings/ trims H31/80 Flashing/ trims

SKU Code	DF

Specification data - Recycled plastics flashings

Classification data
Item	Pipe collar.
Width (minimum)	360 mm. 460 mm. 635 mm. 660 mm. 905 mm.
Fixing	FX902 Guidance for specification option: The FX902 Kit (as shown) contains 3 x 75ml tubes of low modulus silicone, 75 x self-drilling screws, 75 x colour caps (silver).
Colour	Grey EPDM. Red silicone.
Pipe diameter	75–155 mm. 114–254 mm. 235–425 mm. 254–406 mm. 380–610 mm.
Roof pitch	0–60°. Guidance for specification option: Except for Pipe Diameter 235–425 mm, which is 0–40°.

Sustainability data

Contains Red List materials	No
Country of material origin	Vietnam
Country of product manufacture	Vietnam
Manufacturing plant location	Vietnam
Material	EPDM Silicone
Expected Life	20 year
