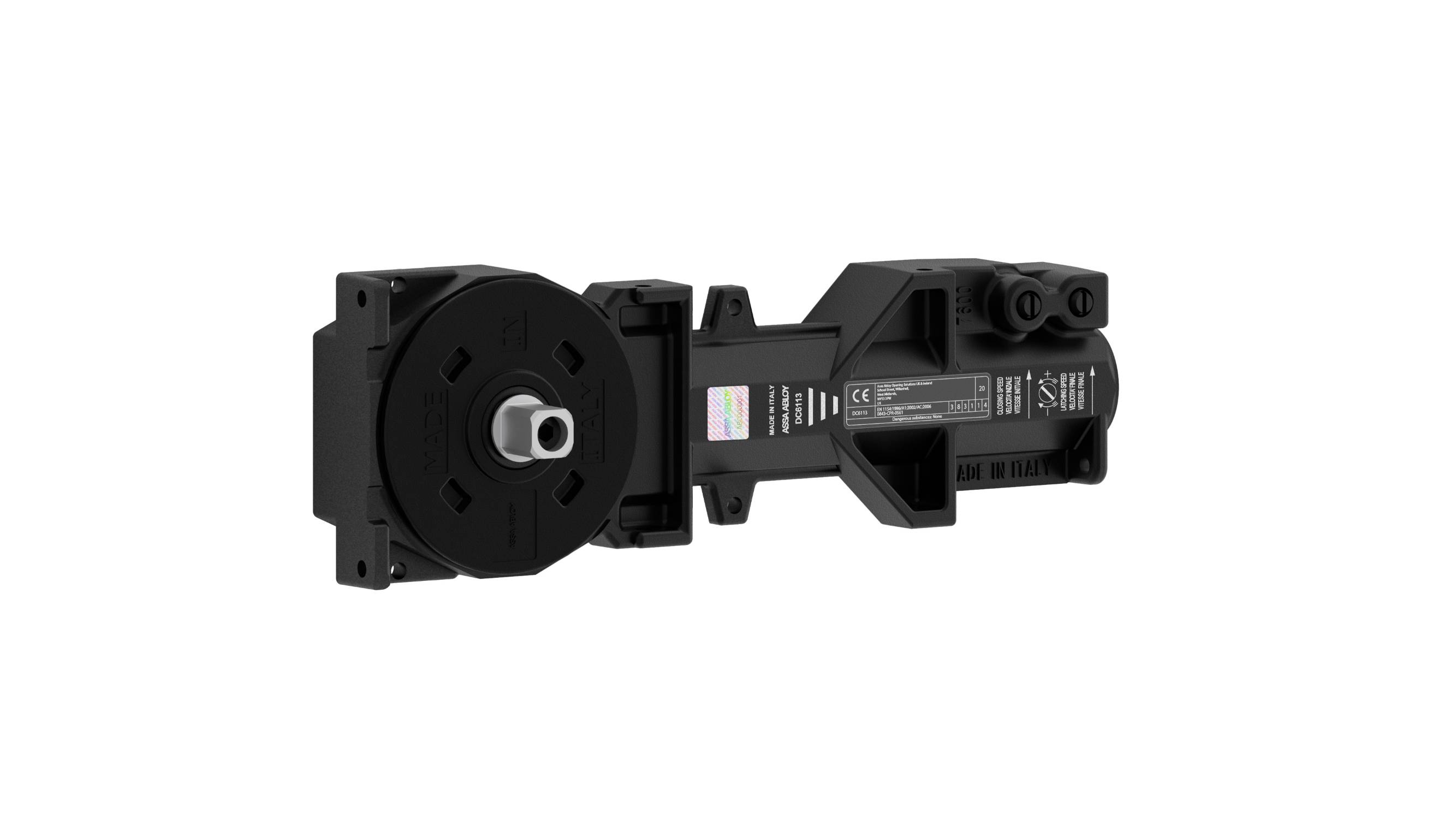

DC6113 - Slim Line Transom Door Closer

Name: DC6113 - Slim Line Transom Door Closer
Brand: ASSA ABLOY Opening Solutions UK & Ireland
SKU: edx9ST6TddwXBV9YWhcf9e

Verified by manufacturer 2 months ago

DC6113-311-0000 - Size 3 NHO Closer

ASSA ABLOY Opening Solutions UK & Ireland

Slim line transom door closer.

Jump to:

0845 223 2124 Website

Application

Suitable for timber fire and smoke protection doors up to 60 minutes.

Description

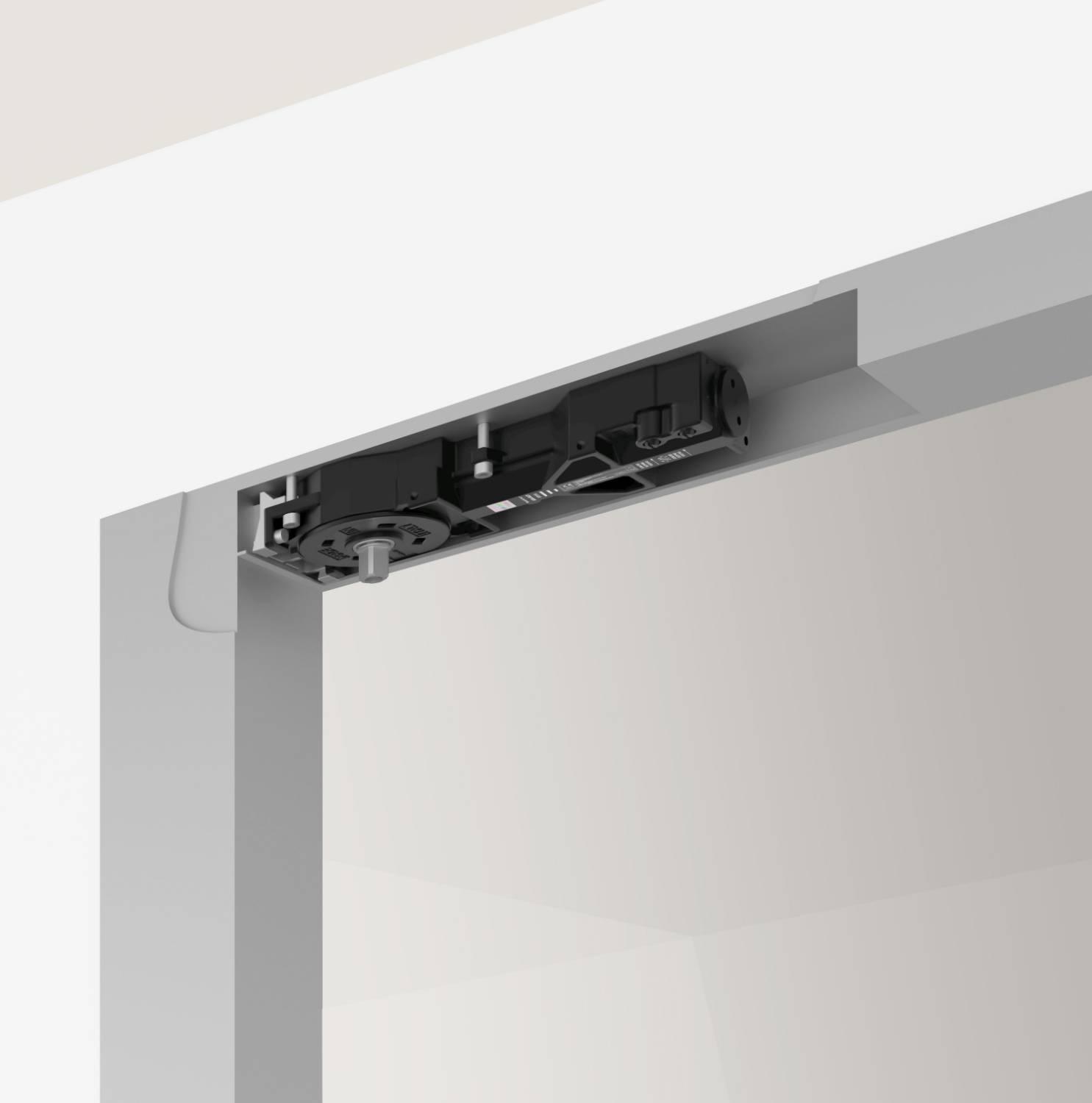

A slim line transom door closer for door widths up to 950 mm that helps to achieve compliance with BS 8300 and Approved Document M at EN power size 3, meaning heavier doors are easier to open but still safely close.

The slimmest profile on the market, the product is suitable for aluminium slim line door sections.

General information

Color	Black
Material	Metal
Shape	Rectangle
Length	92.6 mm
Width	264 mm
Height	39 mm
Warranty description	Ten year

Uniclass	Pr_30_36_59_15 Controlled door closersPrimary
CAWS	P21/12 Controlled door closers P21/410 Controlled door closers

Specification data - Controlled door closers

Standard	CE marked and tested to BS EN 1154 and BS EN 1634.
Classification grades (minimum)	-
Category of use	3.
Durability	8.
Door closer power size	3.
Suitability for use on fire and smoke doors	Suitable for timber fire and smoke protection doors up to 60 minutes.
Safety	1.
Corrosion resistance	4.
Form	Overhead, concealed.
Closer functions	Controlled closing. Latching.
Materials and finishes	-
Colour	Black
Execution	Adjusting controlled door closers

Accessories	DCSPINDLETR--14+4 DCSPINDLETR--18 DCSPINDLETR--20+4 DCSPINDLETR--24+4 DCBRACKETTR 5110-0160 5100-0100 5110-0210 Show more

Sustainability data

Contains Red List materials	No
Country of product manufacture	Italy
Material	Metal
Recyclability	70 Manufacturer guidance Metals widely recycled.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	70 %
