DB3904 Dolphin Shower Set with Wall Mounted Head
Verified by manufacturer 2 months ago

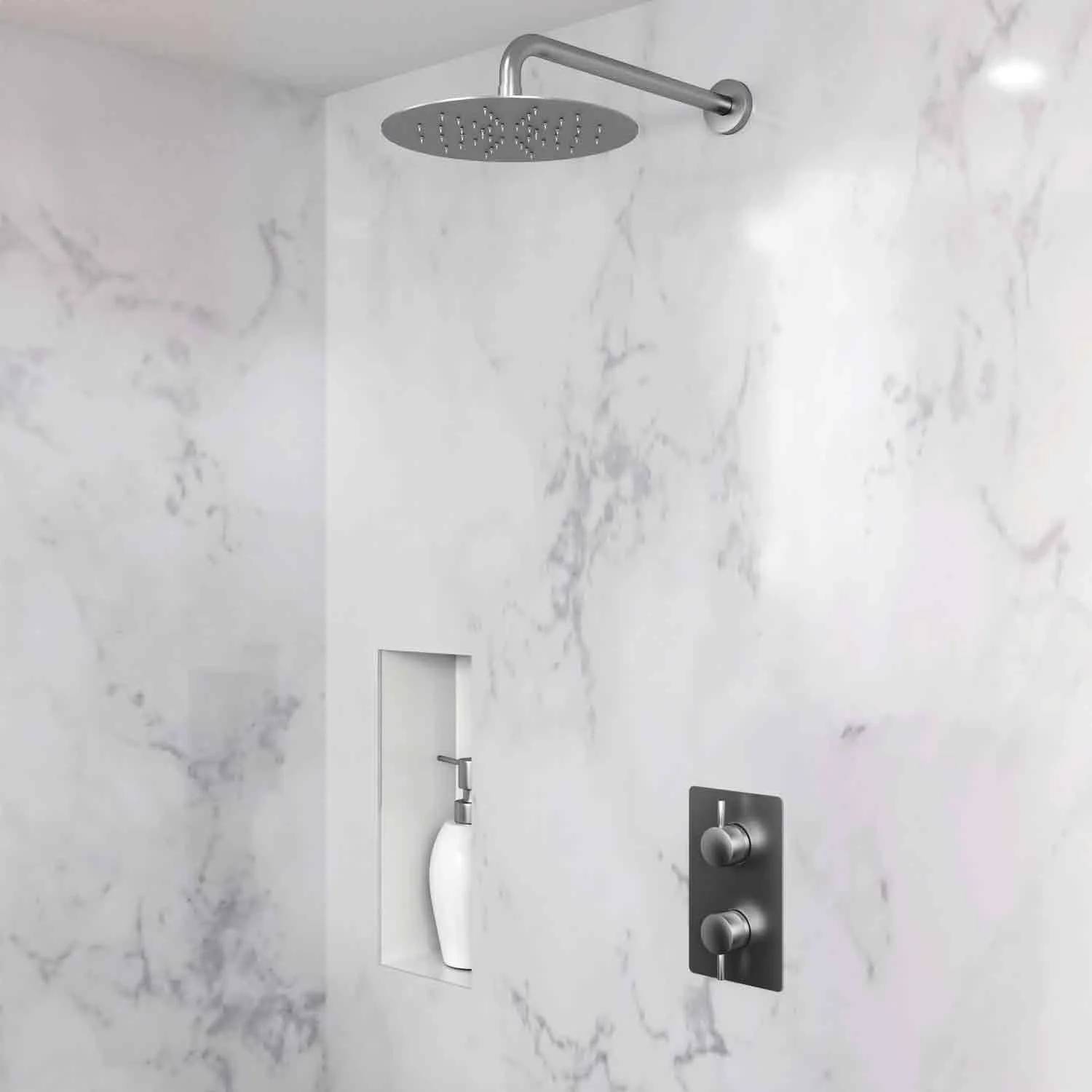

A shower set with wall mounted head and thermostatic shower valve.
Application
Suitable for shower and bath application.
Description
A stainless steel shower set with wall mounted head and thermostatic shower valve.
Features and benefits:
- Two flow regulators included to provide 6 or 9 L per minute at 6 bar.
- Available in polished, satin/ brushed and matt black finishes.
- WRAS approved components.
- Suitable for all water systems.
Components:
- Single outlet (headworks) for fixed shower head.
- Dolphin Blue concealed shower valve with thermostatic temperature control and headworks.
- Dolphin Blue Ultra-thin Round Shower Head, 250 mm diameter with safety valve.
- Dolphin Blue Wall Mounted Shower Arm, 350 mm length.
General information
Color | Black Silver |
Finish | Matt Satin Polished |
Material | Stainless steel |
Shape | Circle Guidance for specification option: Shower head. |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower fittings package
Approval | Water Regulations Advisory Scheme (WRAS)-approved.Guidance for specification option: WRAS approved components: DB3200 – WRAS No. 1911347, DB3001 – WRAS No. 2003342, DB3061 – WRAS No. 2003371. |
Form | Concealed wall-mounted shower mixer valve, wall mounted shower head. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin.Matt black.Mirror polish. |
Flow rate (maximum) | 9 L/min at 6 bar.Guidance for specification option: Two flow regulators included to provide 6 or 9 L/min at 6 bar. |
Shower head | 250 mm. Manufacturer guidanceDiameter with safety valve. |
Length | 350 mm. Manufacturer guidanceShower arm. |
