DB3903 Dolphin Shower Set with Wall Mounted Head and Handheld

Verified by manufacturer 3 months ago

Dolphin Solutions

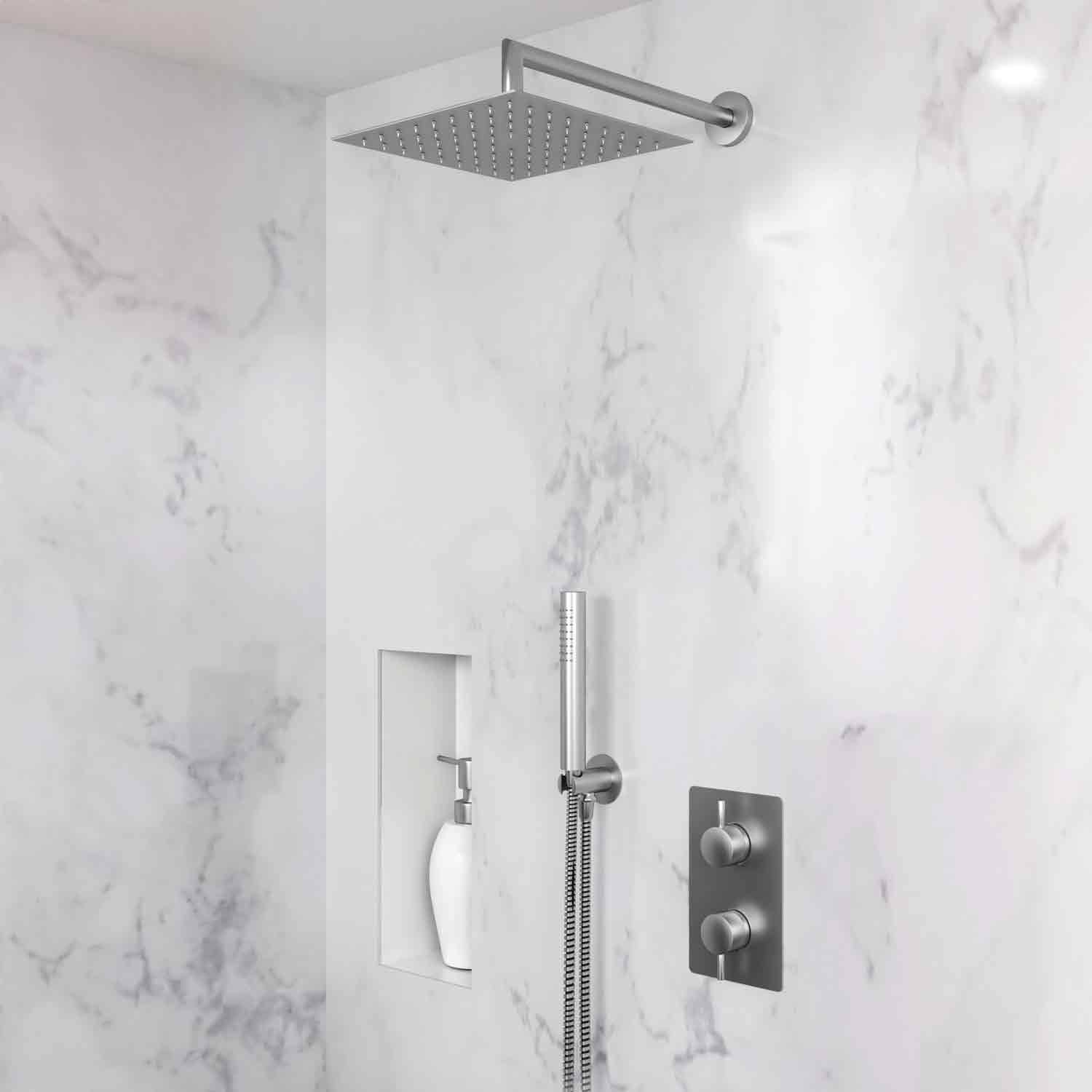

Shower set with wall mounted head, thermostatic shower valve, diverter and handheld shower.

Jump to:
+44 (0)1424 202224 Website

Application

Suitable for shower and bath application.

Description

Shower set with wall mounted head, thermostatic shower valve, diverter and handheld shower.


Features and benefits:

  • Two flow regulators included to provide 6 or 9 L per minute at 6 bar.
  • Available in polished, satin/brushed and matt black finishes.
  • WRAS approved components.


Components:

  • Dolphin Blue concealed shower valve with thermostatic temperature control and two-way diverter, outlets for fixed head and handheld.
  • Dolphin Blue Ultra-thin square shower head, 250 x 250 mm with safety valve.
  • Dolphin Blue wall outlet and holder with 1/2" BSP connection.
  • Dolphin Blue wall mounted shower arm, 350 mm length.
  • Dolphin Blue flexible shower hose, 1500 mm length.
  • Dolphin Blue handheld shower head.

General information

Color

Black

Silver

Finish

Matt

Satin

Polished

Material

Stainless steel

Shape

Square

Length

250 mm

Guidance for specification option:

Shower head.

Width

250 mm

Guidance for specification option:

Shower head.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/40 Shower units

N13/375 Shower units

Specification data - Shower fittings package

Approval

Water Regulations Advisory Scheme (WRAS)-approved.

Guidance for specification option:

WRAS approved components: DB3100 – WRAS No. 1911347, DB3002 – WRAS No. 2003342, DB3062 – WRAS No. 2003371, DB3071 – WRAS No. 2003357, DB3030 - WRAS No. 1904081, DB3020 – WRAS No. N/A.

Form

Concealed wall-mounted shower mixer valve and diverter, wall mounted shower head, wall outlet and holder, flexible shower hose and handheld shower head.

Materials

-

Body

Stainless steel.

Finish and colour

Satin.

Matt black.

Mirror polish.

Flow rate (maximum)

9 L/min at 6 bar.

Guidance for specification option:

Two flow regulators included to provide 6 or 9 L/min at 6 bar.

Length

350 mm.

Guidance for specification option:

Shower arm.

1500 mm.

Guidance for specification option:

Shower hose.

Shower head

250 x 250 mm.

Manufacturer guidance

Square with safety valve.
