Verified by manufacturer 5 months ago
Secured By Design
Certificate type

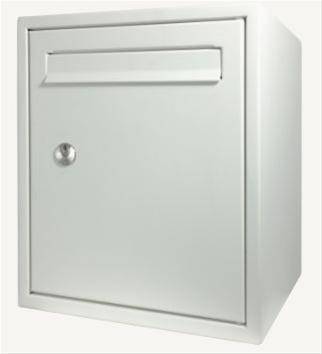

Certified Secured By Design mailbox/ letterbox.
Suitable for:
Certified Secured By Design mailbox/ letterbox/ TS009:2019.
Features and benefits:
Color | Silver Other Manufacturer guidanceAs per manufacturer and includes:
|
Finish | Powder-coated |
Material | Steel Manufacturer guidanceAs per manufacturer and includes electro-galvanized steel. |
Shape | Rectangle |
Length | 330 mm |
Width | 325 mm |
Height | 380 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N10/96 Mailboxes N10/400 Mailboxes |
Standard | To BS EN 13724; Lock: To EN 1303:2005 Grade 4. |
Classification grades (minimum) | |
Type of aperture | 1.2.Manufacturer guidanceGravity flap. |
Aperture size | 2.Guidance for specification option: 230 x 35 mm. |
Corrosion resistance | 3.Guidance for specification option: 12 years against perforation by rust. |
Size | 325 x 380 x 330 mm.Guidance for specification option: Volume: 41 L. |
Materials | Electro-galvanized steel. |
Colour and finish | Powder-coated enamel, RAL.Guidance for specification option: All RAL colours available; insert requirements. Custom print. |
Integral accessories | None.Engraving.Guidance for specification option: Insert requirements. Specify whether door and/ or flap, and required text (alphanumerical). Permanent engraving with ink fill. Soft close flap.Master key.Access control.Anti-arson.Stands.Surround. |
Third party accreditation | Secured by Design TS009:2019 tested and certified; Royal Mail compliant. |
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 99 Self declared |
Recyclability | 100% |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
![]() | - | 1 |
![]() | Revit 2017 | 1 |
