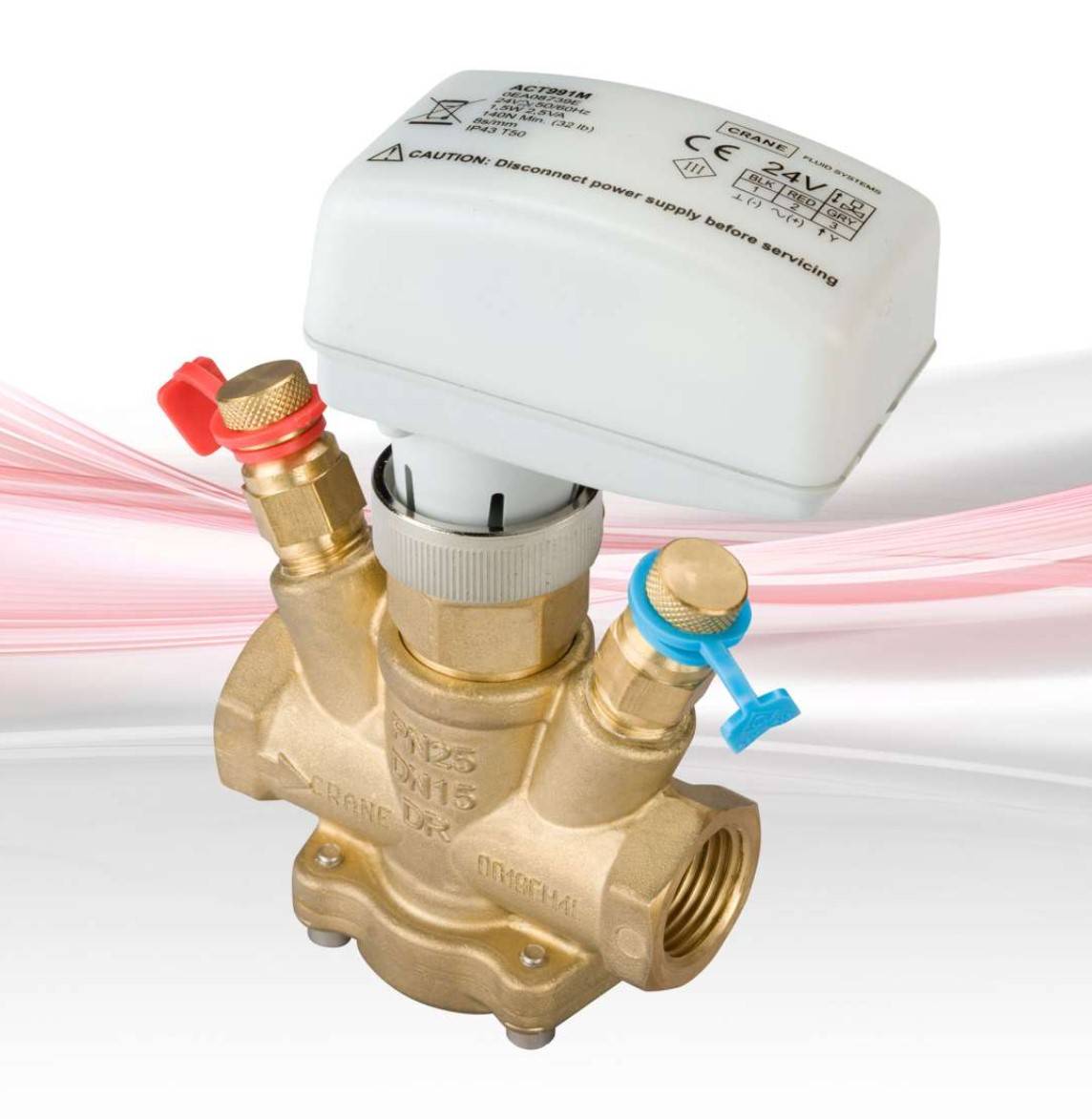

D995 Pressure Independent Control Valve

Verified by manufacturer 19 days ago

DN15

Crane Fluid Systems Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

A Pressure independent control valve.

Jump to:
+44 (0)1473 277300 Website

Application

Suitable for group two liquids.

Description

A pressure independent control valve.


Features and benefits:

  • Comprehensive flow range available, allowing for cost effective valve selections. The PICV Peak Pro has up to 70% higher max flow compared to the previous model.
  • Accurate over a wide ΔP range - available in both 400 and 800kPa variants.
  • Class IV leakage.
  • PN25 rated product, suitable for high pressure applications.
  • Design validation testing to BSRIA BTS01. As per Cyclic Testing requirements, valve subjected to 10,000 cycles (equivalent to 15 years of typical service).
  • Comprehensive testing undertaken for each valve - pressure tested to BS EN 12266-1.
  • Integral test points for verification of ΔP and valve performance.
  • Built in convoluted integral diaphragm.
  • Smaller and lighter design suits applications with a small footprint.

General information

Specification data - Pressure-independent control valves

Pressure rating

PN25.

Temperature range

0 to +90°C.

Material

DZR Brass BS EN 12165 (CW602N), Nylon, Stainless steel and Rubber EPDM.

Guidance for specification option:

Body, bonnet, end cap, P84 test point and O-Ring insert: DZR Brass BS EN 12165 (CW602N); Setting dial: nylon; DP Controller: stainless steel 303; Springs: stainless steel 302; Diaphragm: EPDM; O-Rings: EPDM; Stem: stainless steel 303.

Connections

Female Taper to BS EN 10226.

Inlets/outlets diameter

DN15.

Dimensions

-

Manufacturer guidance

Refer to technical datasheet for detailed dimensions.

FlowRateRange

0.008- 0.370 l/s.

PressureRange

20 - 400kPa (20-800kPa version available).

Unit weight

0.52 kg.

Third-party certification

Bureau Veritas.

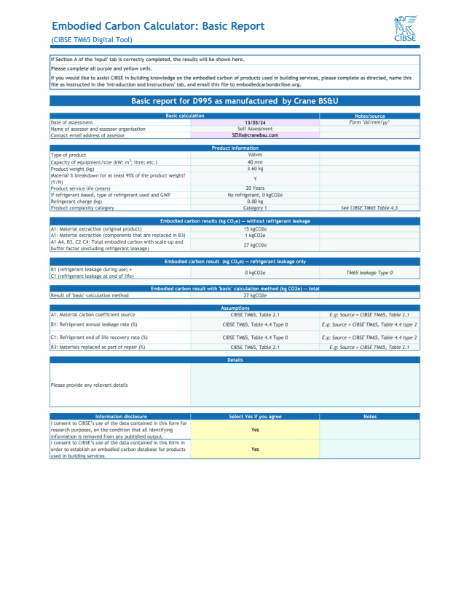

Sustainability data

Country of product manufacture

United Kingdom

Material

Brass

Manufacturing plant location

Recyclability

Recyclable

Guidance for specification option:

Recycle locally, consult manufacturer for details.

Expected Life

20 year

Third party certifications

UKAS

ISO 14001:2015

UKAS

ISO 9001:2015
