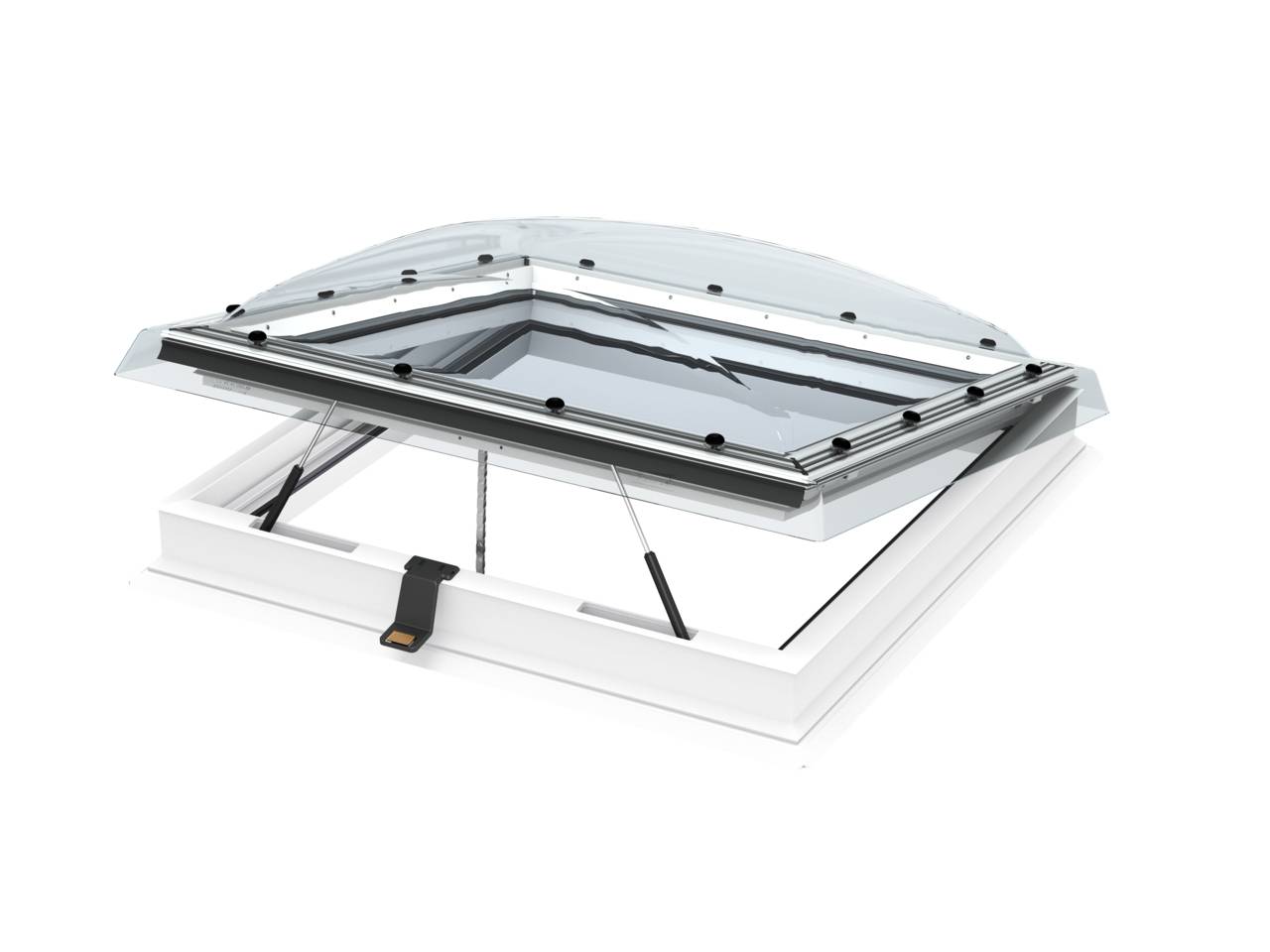

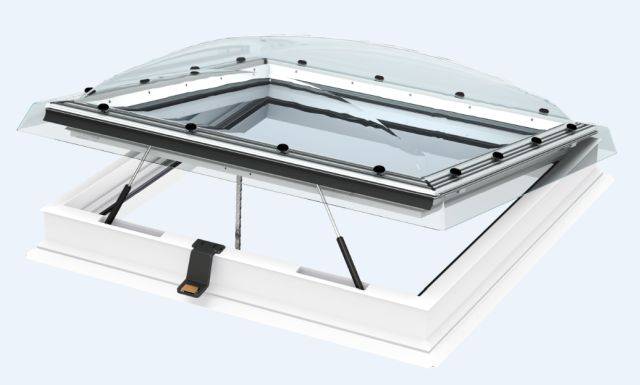

CVP Electrically Operated Flat Roof Window
Verified by manufacturer 6 months ago
600 x 600 mm
600 x 600 mm
Electrically operated flat roof window with dome top cover. Suitable for roof pitches from 0-15°.
Application
Electrically operated flat roof window with polycarbonate dome cover for roof pitches from 0–15°.
Description
Features and benefits:
- Electrically operated, convenient operation with integrated rain sensor for automatic closing during rain.
- Highly-insulated PVC sash construction.
- Double glazed window with laminated inner pane for additional safety.
- Clear or opaque protective polycarbonate dome.
- Energy efficient with U-value of just 0.80 Urc, ref300 for the complete window installation.
- Good sound insulation from rain and hail.
- Available in nine sizes with kerb height of 150 mm.
- Extension frame for warm roof installation.
- AA fire rated.
General information
Color | White |
Material | PVC |
Shape | Other |
Width | 600 mm 800 mm 900 mm 1000 mm 1200 mm |
Height | 600 mm 800 mm 900 mm 1000 mm 1200 mm |
Warranty description | Three year Guidance for specification option: For blinds and electrics. Ten year Guidance for specification option: For window and pane |
Uniclass | |
CAWS | L10/480 Roof windows |
Product range |
Specification data - Framed rooflights
Form | Electrically operated flat roof window with polycarbonate dome cover. |
Size | 600 x 600 mm. |
Product performance | |
Fire performance | |
Reaction to fire | AA fire rated. |
Frame | |
Material | PVC. |
Finish | |
Colour | White. |
Glazing or infill | |
Type | Double glazed window with laminated inner pane for additional safety. |
Integral kerb | 150 mm.Guidance for specification option: Kerb height. |
Operation | |
Type | Electrically operated via KLI Wall Switch. |
Accessories | FMG Electric pleated blind, colour 1016 White.FMG Electric pleated blind, colour 1259 Cream.FMG Electric pleated blind, colour 1265 Black.FMK Electric light dimming pleated blind, colour 1045 White.FMK Electric light dimming pleated blind, colour 1047 Black.FSK Solar Operated light dimming pleated blind, colour 1045 White.Guidance for specification option: For clear dome only. FSK Solar Operated light dimming pleated blind, colour 1047 Black.Guidance for specification option: For clear dome only. MSG Solar Operated awning blind, colour 6090 White.Guidance for specification option: For clear dome only. ZCE 060060 0015.Guidance for specification option: Extension frame for warm roof installation 600 x 600 mm. ZCE 060090 0015.Guidance for specification option: Extension frame for warm roof installation 600 x 900 mm. ZCE 080080 0015.Guidance for specification option: Extension frame for warm roof installation 800 x 800 mm. ZCE 090090 0015.Guidance for specification option: Extension frame for warm roof installation 900 x 900 mm. ZCE 090120 0015.Guidance for specification option: Extension frame for warm roof installation 900 x 1200 mm. ZCE 100100 0015.Guidance for specification option: Extension frame for warm roof installation 1000 x 1000 mm. ZCE 100150 0015.Guidance for specification option: Extension frame for warm roof installation 1000 x 1500 mm. ZCE 120120 0015.Guidance for specification option: Extension frame for warm roof installation 1200 x 1200 mm. ZCE 150150 0015.Guidance for specification option: Extension frame for warm roof installation 1500 x 1500 mm. ZZZ 150150 210.Guidance for specification option: Frame fixing kit 1500 x 1500 mm. ZZZ 210 060060.Guidance for specification option: Frame fixing kit 600 x 600 mm. ZZZ 210 060090.Guidance for specification option: Frame fixing kit 600 x 900 mm. ZZZ 210 080080.Guidance for specification option: Frame fixing kit 800 x 800 mm. ZZZ 210 090090.Guidance for specification option: Frame fixing kit 900 x 900 mm. ZZZ 210 090120.Guidance for specification option: Frame fixing kit 900 x 1200 mm. ZZZ 210 100100.Guidance for specification option: Frame fixing kit 1000 x 1000 mm. ZZZ 210 100150.Guidance for specification option: Frame fixing kit 1000 x 1500 mm. ZZZ 210 120120.Guidance for specification option: Frame fixing kit 1200 x 1200 mm. |
Execution | Installation of framed rooflights. |
Window code | CVP 060060 0673QV + ISD 060060 0010. Guidance for specification option: 600 x 600 mm; clear polycarbonate cover. CVP 060060 0673QV + ISD 060060 0110. Guidance for specification option: 600 x 600 mm; opaque polycarbonate cover. |
Extension frame for warm roof installation | ZCE 060060 0015. Guidance for specification option: 600 x 600 mm. |
Frame fixing kit | ZZZ 210 060060. Guidance for specification option: 600 x 600 mm. |
Interior sunscreening | Not required. FMG Electric pleated blind, colour 1265 Black. FMG Electric pleated blind, colour 1016 White. FMG Electric pleated blind, colour 1259 Cream. FMK Electric light dimming pleated blind, colour 1045 White. |
Exterior sunscreening | MSG Solar Operated awning blind, colour 6090 White. Guidance for specification option: For clear dome only. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 4 |
Similar products from VELUX Company Ltd
CFJ Fixed, Flat Roof Base Unit with Polycarbonate Dome Cover
CFP Fixed Flat Roof Window

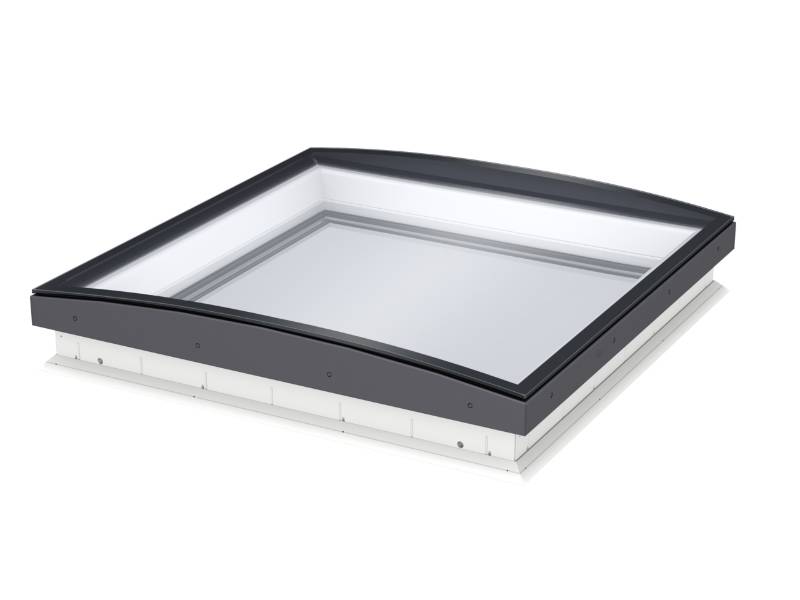

CFU Fixed Flat Roof Window, Curved Glass
