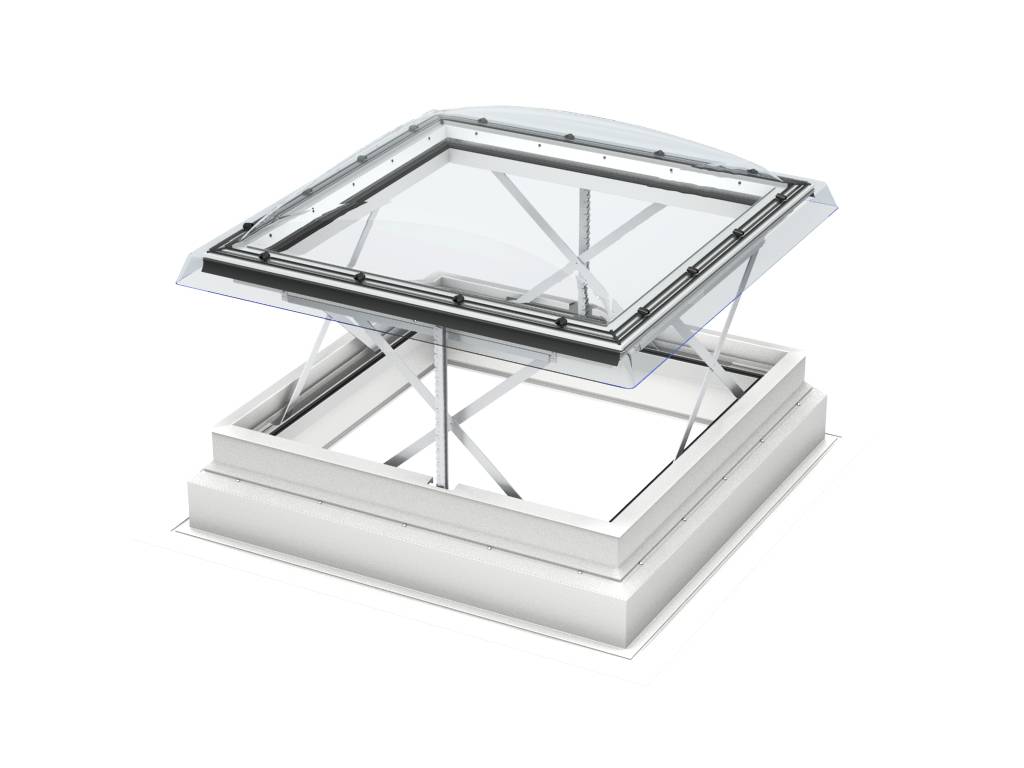

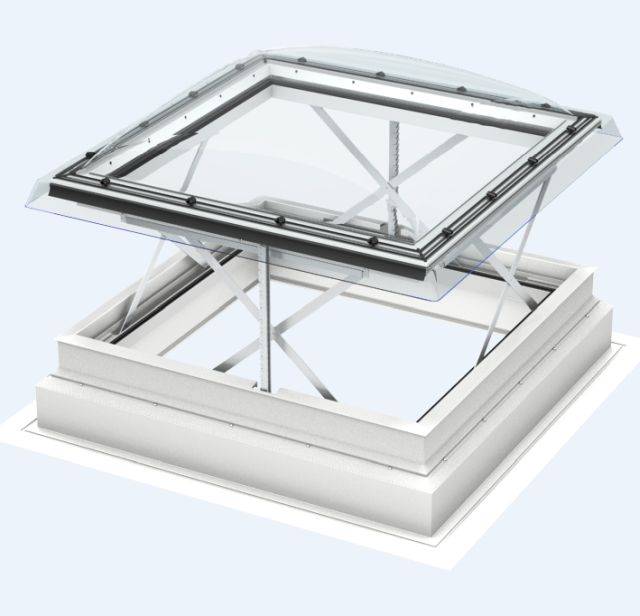

CSP Flat Roof Smoke Ventilation Window

VELUX Company Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Electrically operated flat roof smoke ventilation window with dome top cover. Suitable for roof pitches from 0-15°.

Jump to:
+44 (0)1592 778225 Website

Application

Electrically operated flat roof window for smoke ventilation with polycarbonate dome cover for roof pitches from 0–15°.

Description

Features and benefits:

  • Double glazed window with laminated inner pane for additional safety.
  • Clear or opaque protective polycarbonate dome.
  • Energy efficient with U-value of just 0.99 Urc for the complete window installation.
  • Available in two sizes with a kerb height of 150 mm.
  • Extension frame for warm roof installation built in.
  • AA fire rated.

General information

Color

White

White base unit, black brown profiles on top cover

Finish

Acrylic

Material

PVC

PVC base unit and polycarbonate dome cover. Colour NCS S 0502-Y.

Shape

Rectangle

Width

1000 mm

1200 mm

Height

1000 mm

1200 mm

WarrantyDescription

Ten year

For window and pane

Three year

For blinds and electrics

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/480 Roof windows

Product range

Flat Roof Solutions

Specification data - Framed rooflights

Form

Electrically operated flat roof window for smoke ventilation with polycarbonate dome cover.

Size

1200 x 1200 mm.

1000 x 1000 mm.

Product performance

-

Fire performance

-

Reaction to fire

AA fire rated.

Whole window U-value

0.99 W/m²K.

Frame

-

Material

PVC.

Finish

-

Colour

White base unit, black brown profiles on top cover.

Glazing or infill

-

Type

Double glazed window with laminated inner pane for additional safety.

Integral kerb

Kerb height of 300 mm.

Operation

-

Type

Electrically operated via KFC Smoke Vent Control (purchased separately).

Accessories

Electric blinds.

FSK Solar Operated light dimming pleated blind, colour 1045 White.

For clear dome only.

FSK Solar Operated light dimming pleated blind, colour 1047 Black.

For clear dome only.

KFA 100 Smoke sensor.

KFK 100 Break glass unit.

MSG Solar Operated awning blind, colour 6090 White.

For clear dome only.

ZCE extension kerb.

ZZZ 210 100100.

1000 x 1000 mm.

ZZZ 210 120120.

1200 x 1200 mm.

Execution

Installation of framed rooflights.

Window code

CSP 100100 1073Q + ISD 100100 0010.

1000 x 1000 mm; clear polycarbonate cover - 0.88 m² smoke vent area.

CSP 120120 1073Q + ISD 120120 0010.

1200 x 1200 mm; clear polycarbonate cover - 1.30 m² smoke vent area.

CSP 100100 1073Q + ISD 100100 0110.

1000 x 1000 mm; opaque polycarbonate cover - 0.88 m² smoke vent area.

CSP 120120 1073Q + ISD 120120 0110.

1200 x 1200 mm; opaque polycarbonate cover - 1.30 m² smoke vent area.

Control systems

KFC 210.

Control unit for operation of one flat roof window.

KFC 220.

Control unit for operation of two flat roof windows.
