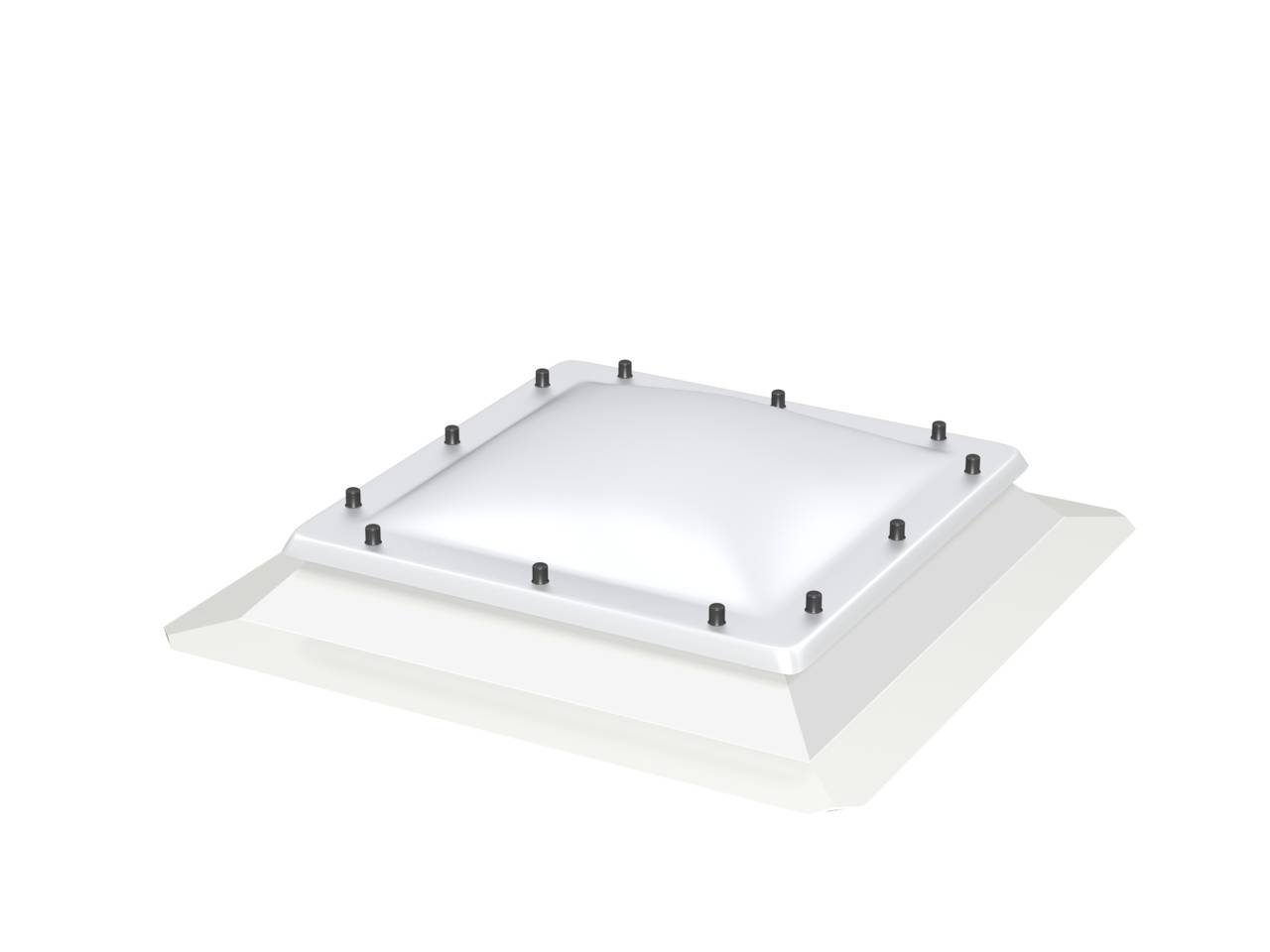

CFJ Fixed, Flat Roof Base Unit with Polycarbonate Dome Cover

Verified by manufacturer 19 days ago

Opaque polycarbonate cover, two-layer.

VELUX Company Ltd Variant:

Fixed flat roof base unit with polycarbonate dome cover for roof pitches from 0–15°.

Jump to:
+44 (0)1592 778873 Website

Application

For roof pitches from 0–15°.

Description

Fixed flat roof base unit with polycarbonate dome cover for roof pitches from 0–15°.


Features and benefits:

  • Simple dome solution for uninhabited rooms or buildings
  • White PVC base unit without glazing.
  • Two and three layer opaque dome skins in polycarbonate.
  • Available in nine sizes with kerb height of 150 mm or 300 mm.
  • CE marked and meets the requirements of EN 1873:2005.

General information

Color

White

Finish

Guidance for specification option:

Base unit without glazing, two-layer or three-layer opaque polycarbonate dome.

Material

PVC

Shape

Square

Rectangle

Width

600 mm

900 mm

800 mm

1000 mm

1200 mm

Show more

Height

600 mm

800 mm

900 mm

1000 mm

1200 mm

Show more

Warranty description

Ten year

Guidance for specification option:

Ten-year guarantee for window and pane. Three-year guarantee for blinds and electrics.

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/45 Rooflights

L10/460 Rooflights

Specification data - Framed rooflights

Form

Fixed flat roof base unit with opaque polycarbonate dome cover.

Size

CFJ 060060 0010 + ISJ 060060 0112 - 600 x 600 mm; 150 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 060090 0010 + ISJ 060090 0112 - 600 x 900 mm; 150 mm fixed base unit; opaque polycarbonate cover two-layer.

CFJ 080080 0010 + ISJ 080080 0112 - 800 x 800 mm; 150 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 090090 0010 + ISJ 090090 0112 - 900 x 900 mm; 150 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 090120 0010 + ISJ 090120 0112 - 900 x 1200 mm; 150 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 100100 0010 + ISJ 100100 0112 - 1000 x 1000 mm; 150 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 100150 0010 + ISJ 100150 0112 - 1000 x 1500 mm; 150 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 120120 0010 + ISJ 120120 0112 - 1200 x 1200 mm; 150 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 150150 0010 + ISJ 150150 0112 - 1500 x 1500 mm; 150 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 060060 1010 + ISJ 060060 0112 - 600 x 600 mm; 300 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 060090 1010 + ISJ 060090 0112 - 600 x 900 mm; 300 mm fixed base unit; opaque polycarbonate cover two-layer.

CFJ 080080 1010 + ISJ 080080 0112 - 800 x 800 mm; 300 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 090090 1010 + ISJ 090090 0112 - 900 x 900 mm; 300 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 090120 1010 + ISJ 090120 0112 - 900 x 1200 mm; 300 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 100100 1010 + ISJ 100100 0112 - 1000 x 1000 mm; 300 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 100150 1010 + ISJ 100150 0112 - 1000 x 1500 mm; 300 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 120120 1010 + ISJ 120120 0112 - 1200 x 1200 mm; 300 mm fixed base unit; opaque polycarbonate cover, two-layer.

CFJ 150150 1010 + ISJ 150150 0112 - 1500 x 1500 mm; 300 mm fixed base unit; opaque polycarbonate cover, two-layer.

Product performance

-

Whole window U-value

2.2 W/m²K.

Frame

-

Finish

-

Colour

White base unit.

Glazing or infill

-

Type

Two-layer opaque polycarbonate dome.

Operation

-

Type

Fixed.

Accessories

ZZZ 210J 060060 - Frame fixing kit 600 x 600 mm.

ZZZ 210J 060090 - Frame fixing kit 600 x 900 mm.

ZZZ 210J 080080 - Frame fixing kit 800 x 800 mm.

ZZZ 210J 090090 - Frame fixing kit 900 x 900 mm.

ZZZ 210J 090120 - Frame fixing kit 900 x 1200 mm.

ZZZ 210J 100100 - Frame fixing kit 1000 x 1000 mm.

ZZZ 210J 100150 - Frame fixing kit 1000 x 1500 mm.

ZZZ 210J 120120 - Frame fixing kit 1200 x 1200 mm.

ZZZ 210J 150150 - Frame fixing kit 1500 x 1500 mm.
