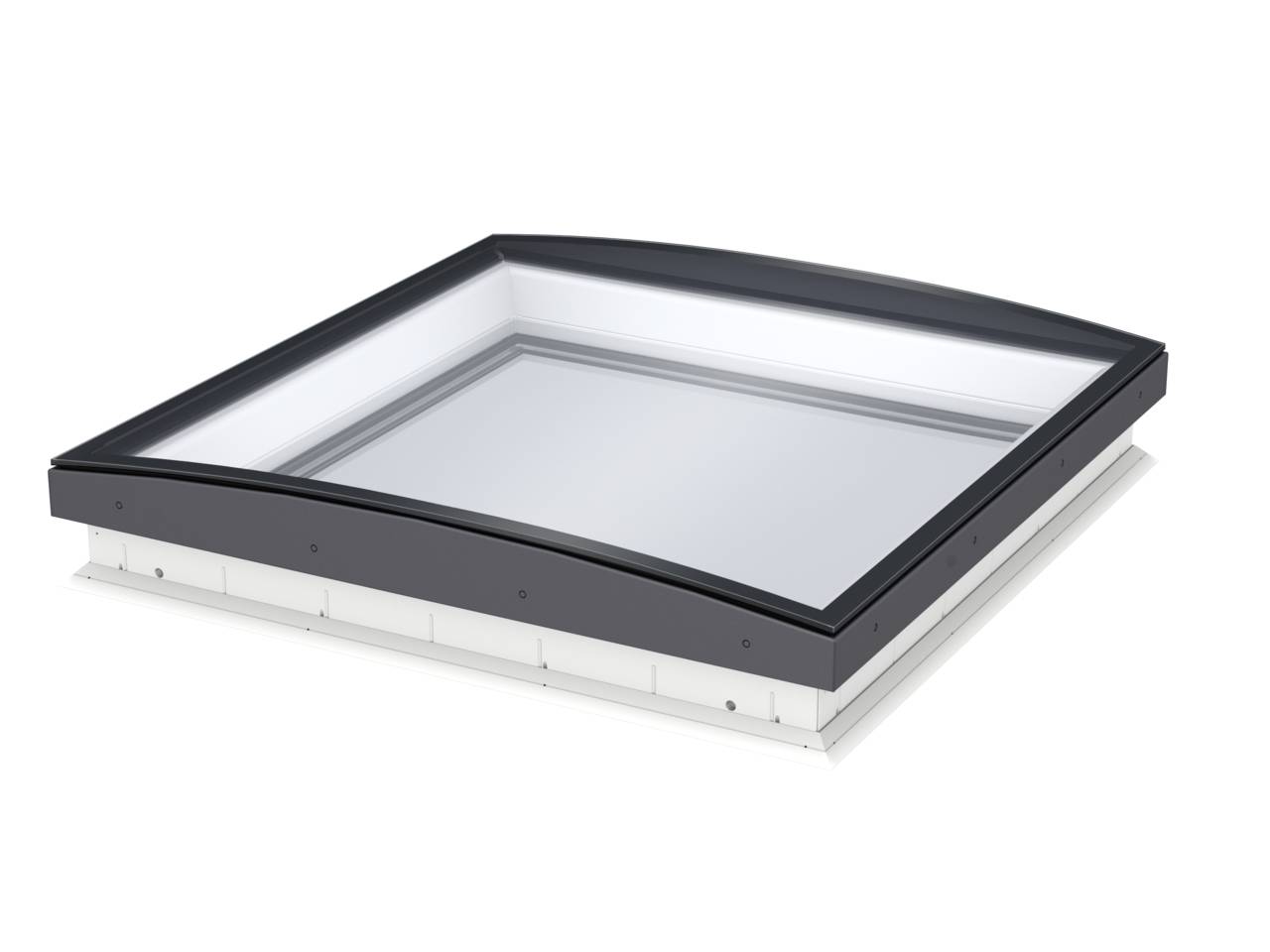

CFU Fixed Flat Roof Window, Curved Glass

Verified by manufacturer 4 months ago

VELUX Company Ltd

Fixed flat roof window with flat glass cover for roof pitches from 2-15°

Jump to:
BIM object icon
+44 (0)1592 778873 Website

Application

Fixed flat roof window with flat glass cover for roof pitches from 2-15°.

Description

Fixed flat roof window with flat glass cover for roof pitches from 2-15°.


Features and benefits:

  • Fixed window without background ventilation.
  • Plywood frame with white polyurethane mould, aluminium sash with white lacquer finish.
  • Glass-to-edge curved glass top cover fits ensures uninterrupted drainage and clear view to the sky.
  • Unique window construction with a slim frame and invisible sash provides maximum daylight.
  • Double or triple glazed window for excellent energy performance and sound reduction.
  • Laminated insulated glass unit for safety.
  • U-value of just 0.55 Urc,ref300 (triple glazed) 0.65 Urc,ref300 (double glazed) for the complete window installation.
  • Available in seven sizes with kerb height of 150 mm.
  • Extension frame for warm roof installation.
  • CE marked.

General information

Color

White

Guidance for specification option:

White base unit, black brown profiles on top cover

Finish

-

Manufacturer guidance

Double or triple glazed window with laminated inner pane for additional safety.

Material

Polyurethane

Guidance for specification option:

PVC Base Unit, Anodised Aluminium Top Cover.

Aluminium

Shape

Other

Guidance for specification option:

Fixed flat roof window with curved glass cover

Width

600 mm

900 mm

800 mm

1000 mm

1200 mm

Show more

Height

600 mm

800 mm

900 mm

1000 mm

1200 mm

Show more

Warranty description

Ten year

Guidance for specification option:

For window and pane

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/480 Roof windows

L10/46 Roof windows

Specification data - Framed rooflights

Form

Fixed flat roof window with curved glass cover.

Size

600 x 600 mm.

600 x 900 mm.

800 x 800 mm.

900 x 900 mm.

900 x 1200 mm.

1000 x 1000 mm.

1200 x 1200 mm.

Product performance

-

Whole window U-value

0.65 Urc for double glazed, 0.55 Urc for triple glazed.

Frame

-

Material

Polyurethane.

Finish

-

Colour

White base unit, black brown profiles on top cover.

Glazing or infill

-

Type

Double glazed window with laminated inner pane for additional safety.

Triple glazed window with laminated inner pane for additional safety.

Integral kerb

150 mm.

Guidance for specification option:

Kerb height.

Operation

-

Type

Fixed.

Accessories

ZCU 060060 0015.

Guidance for specification option:

Extension frame for warm roof installation 600 x 600 mm.

ZCU 060090 0015.

Guidance for specification option:

Extension frame for warm roof installation 600 x 900 mm.

ZCU 080080 0015.

Guidance for specification option:

Extension frame for warm roof installation 800 x 800 mm.

ZCU 090090 0015.

Guidance for specification option:

Extension frame for warm roof installation 900 x 900 mm.

ZCU 090120 0015.

Guidance for specification option:

Extension frame for warm roof installation 900 x 1200 mm.

ZCU 100100 0015.

Guidance for specification option:

Extension frame for warm roof installation 1000 x 1000 mm.

ZCU 120120 0015.

Guidance for specification option:

Extension frame for warm roof installation 1200 x 1200 mm.

ZZZ 210U 060060.

Guidance for specification option:

Frame fixing kit 600 x 600 mm.

ZZZ 210U 060090.

Guidance for specification option:

Frame fixing kit 600 x 900 mm.

ZZZ 210U 080080.

Guidance for specification option:

Frame fixing kit 800 x 800 mm.

ZZZ 210U 090090.

Guidance for specification option:

Frame fixing kit 900 x 900 mm.

ZZZ 210U 090120.

Guidance for specification option:

Frame fixing kit 900 x 1200 mm.

ZZZ 210 U100100.

Guidance for specification option:

Frame fixing kit 1000 x 1000 mm.

ZZZ 210U 120120.

Guidance for specification option:

Frame fixing kit 1200 x 1200 mm.

MSU Solar Anti-heat blind, colour 5070 White net.

DSU Solar Blackout blind, colour 4550 White.

ZIU Insect Screen, colour 0000 Black mesh.

Execution

Installation of framed rooflights.

Window code

CFU 060060 0020Q + ISU 060060 1093.

Guidance for specification option:

600 x 600 mm; double glazed base unit; curved glass cover

CFU 090060 0020Q + ISU 090060 1093.

Guidance for specification option:

900 x 600 mm; double glazed base unit; curved glass cover

CFU 080080 0020Q + ISU 080080 1093.

Guidance for specification option:

800 x 800 mm; double glazed base unit; curved glass cover

CFU 090090 0020Q + ISU 090090 1093.

Guidance for specification option:

900 x 900 mm; double glazed base unit; curved glass cover

CFU 120090 0020Q + ISU 120090 1093.

Guidance for specification option:

1200 x 900 mm; double glazed base unit; curved glass cover

Show more

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Similar products from VELUX Company Ltd

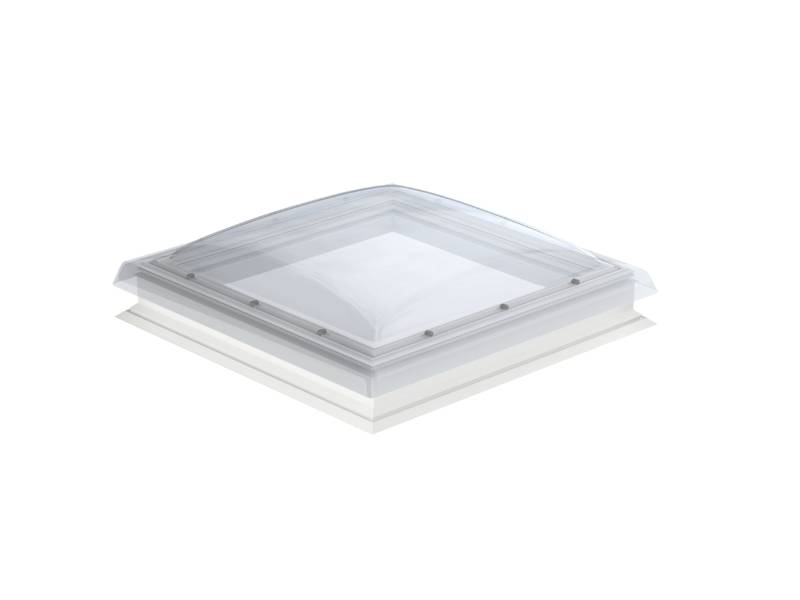

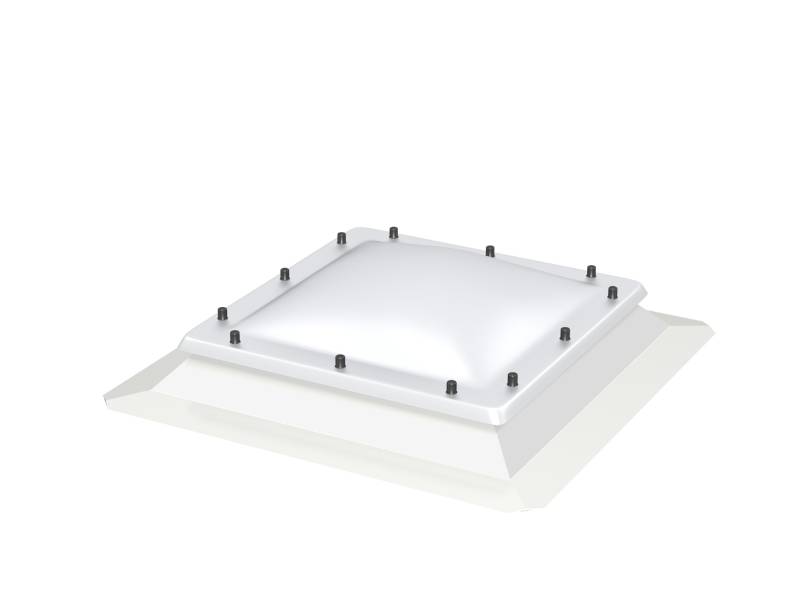

CFJ Fixed, Flat Roof Base Unit with Polycarbonate Dome Cover

CFJ Fixed, Flat Roof Base Unit with Polycarbonate Dome Cover

CFP Fixed Flat Roof Window

CFP Fixed Flat Roof Window

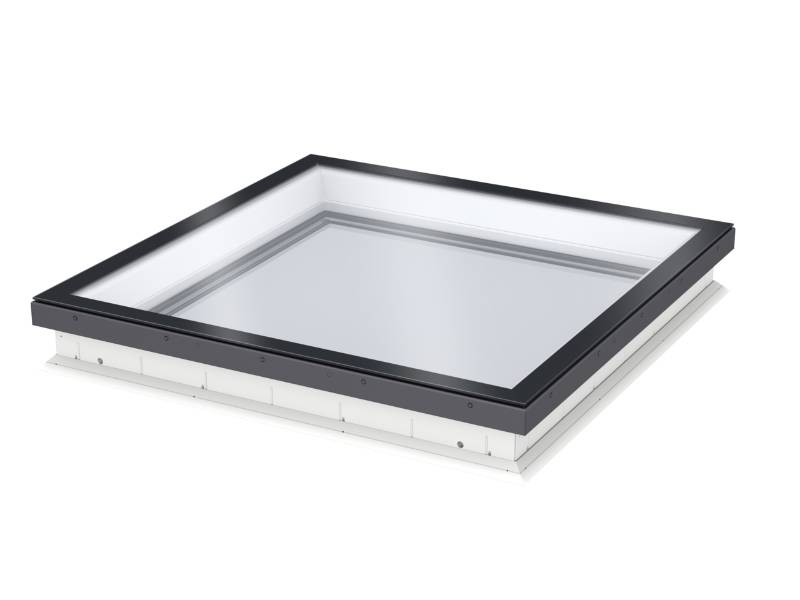

CFU Fixed Flat Roof Window, Flat Glass

CFU Fixed Flat Roof Window, Flat Glass

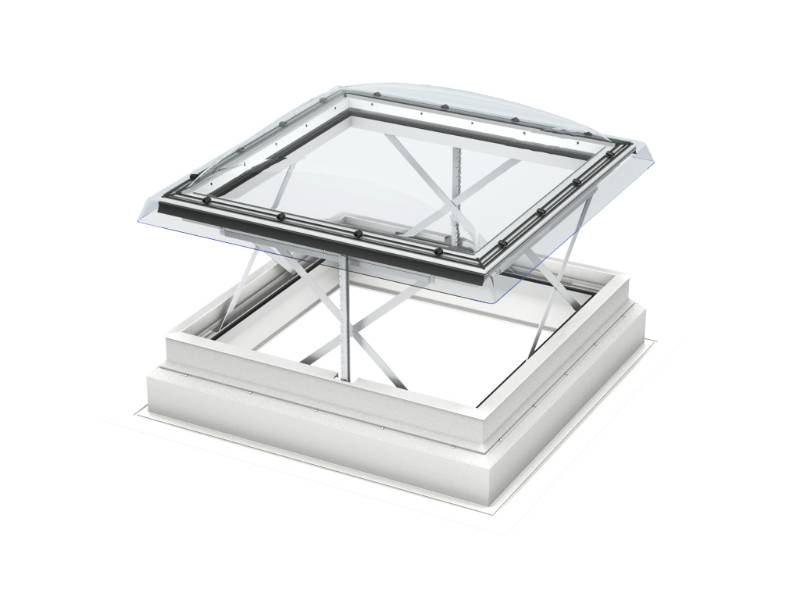

CSP Flat Roof Smoke Ventilation Window

CSP Flat Roof Smoke Ventilation Window

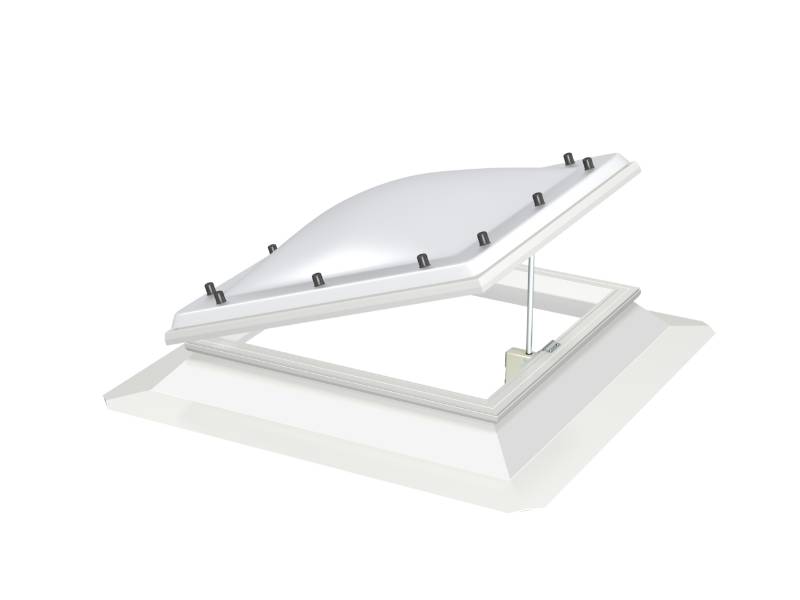

CVJ Vented, Flat Roof Base Unit with Polycarbonate Dome Cover

CVJ Vented, Flat Roof Base Unit with Polycarbonate Dome Cover

CVP Electrically Operated Flat Roof Window

CVP Electrically Operated Flat Roof Window

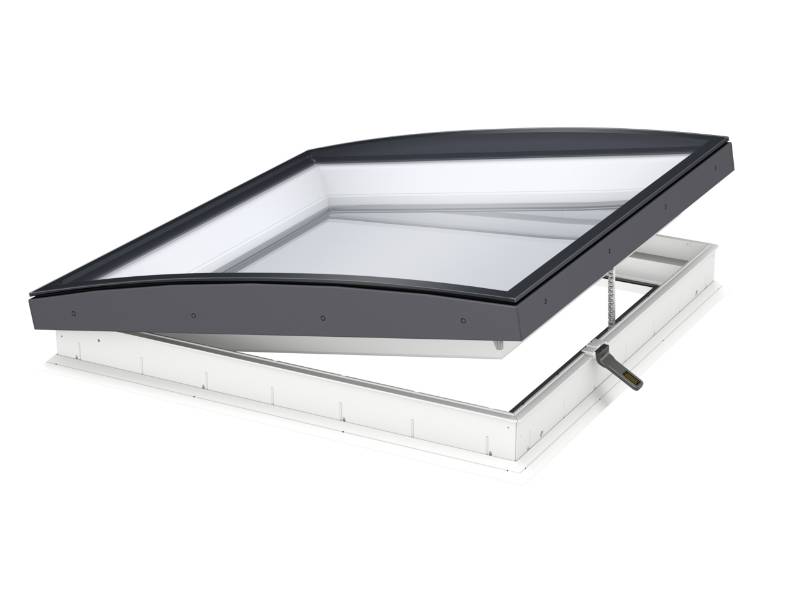

CVU Electrically Operated, Flat Roof Window with Curved Glass Cover

CVU Electrically Operated, Flat Roof Window with Curved Glass Cover

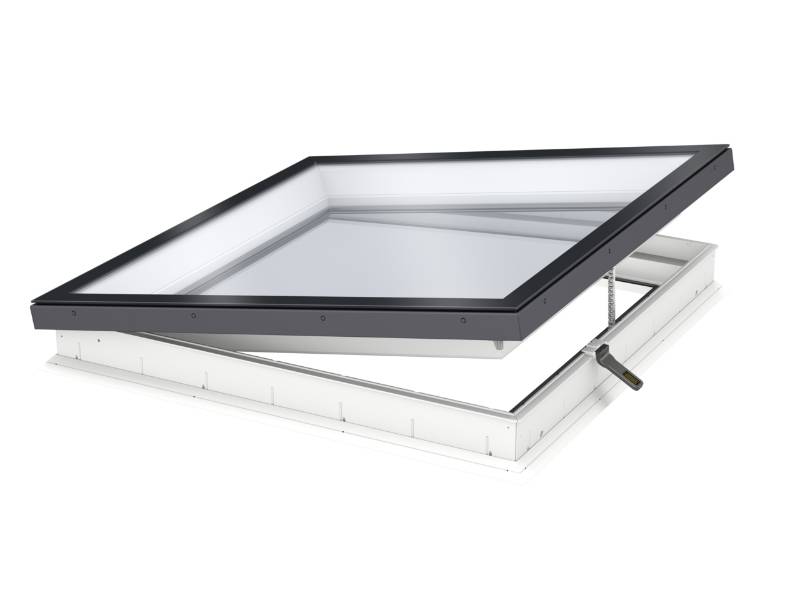

CVU Electrically Operated, Flat Roof Window with Flat Glass Cover

CVU Electrically Operated, Flat Roof Window with Flat Glass Cover

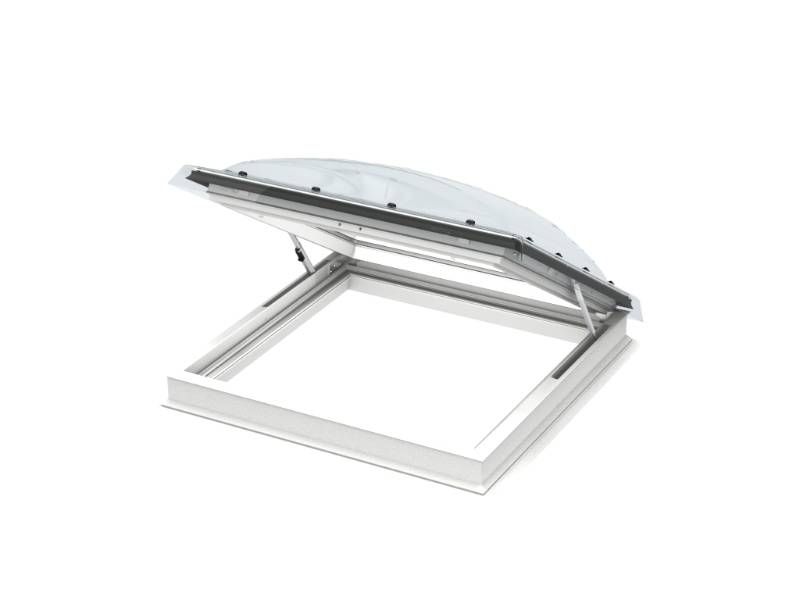

CXP Flat Roof Exit Window
