Curtain Track - Hand Operated - Silent Gliss SG 6970 - Curtain Track

Verified by manufacturer 4 months ago

Silent Gliss Ltd Product certifications:
  • Quiet Mark Certification

    Quiet Mark Certification

    Certificate type

Square profile curtain track for heavy weight curtains.

Jump to:
+44 (0)1843 863571 Website

Application

Suitable for heavy weight curtains.

Track fixing brackets/ clamps to be at 300–600 mm centres.

Wall or ceiling fitted.

Description

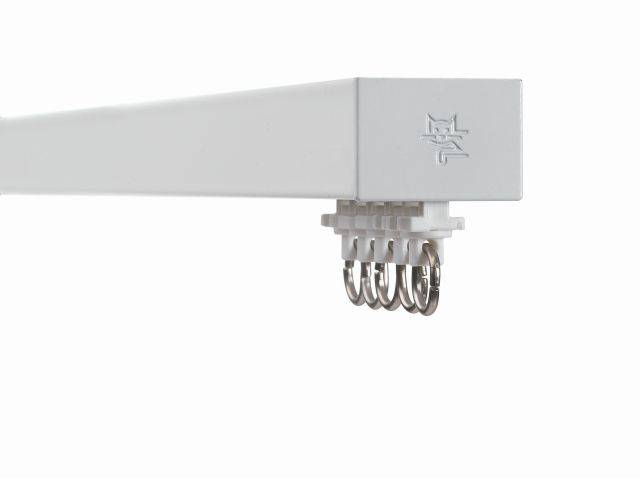

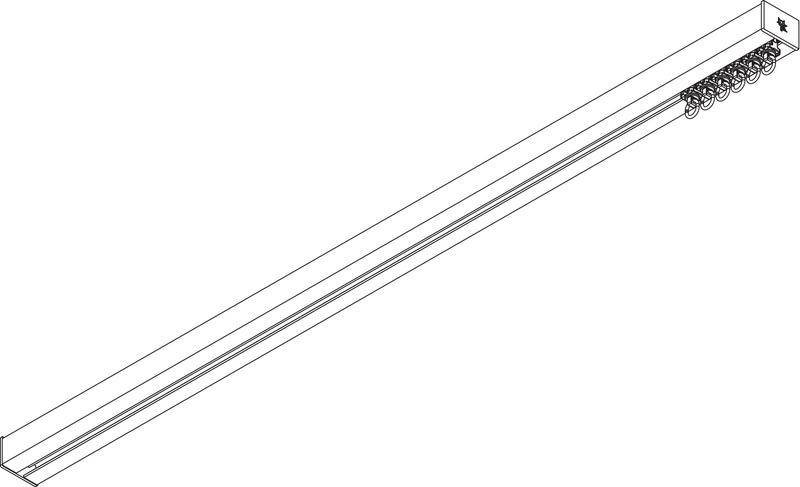

A hand operated curtain track with a square profile wall or ceiling-mounted track for heavy-weight curtains. It can also be used as a room divider as the track looks the same from both sides.


Features and benefits:

  • Patented
  • Curtain track can be bent to 250 mm radius.
  • Standard cord drop: 1500 mm, right hand pull.
  • Curtain gliders are normally fitted 14 per metre.
  • Recess profile available SG 11862.

General information

Color

White

Black

Finish

Powder-coated

Material

Aluminium

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

SKU Code

SG 6970

Product range

Curtain Tracks / Hand Operated Curtain Tracks

Specification data - Window curtain supports

Classification data

Support

Curtain tracks.

Overall length

Guidance for specification option:

Maximum track length: 6 m. Tracks can be joined using connectors.

Material

Aluminium.

Finish

Powder-coated.

Colour

White.
Black.

Operation

Hand operated.

Execution

Installing curtain supports.

Fixings (white powder coated)

Ceiling fix with mounting plate (Ref SG 3825 and profile protector SG 7002).

Guidance for specification option:

With higher edge of profile to room side.

Ceiling fix with clamp (SG 3004).
Wall fixing extension brackets (Ref 11200 and SG 3041).

Guidance for specification option:

52 mm projection to outer face of track

Wall fixing extension brackets (Ref 11201 and SG 3041).

Guidance for specification option:

72 projection to outer face of track.

Wall fixing extension brackets (Ref 11202 and SG 3041).

Guidance for specification option:

92 projection to outer face of track.

Wall fixing extension brackets (Ref 11203 and SG 3041).

Guidance for specification option:

112 projection to outer face of track.

Wall fixing extension brackets (Ref 11204 and SG 3041).

Guidance for specification option:

142 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11205 and SG 3041).

Guidance for specification option:

192 mm projection to outer face of track.

Wall fixing extension bracket (Ref 11210 and SG 3004).

Guidance for specification option:

52 projection to outer face of track.

Wall fixing extension brackets (Ref 11211 and SG 3004).

Guidance for specification option:

72 projection to outer face of track.

Wall fixing extension brackets (Ref 11212 and SG 3004).

Guidance for specification option:

92 projection to outer face of track.

Wall fixing extension brackets (Ref 11213 and SG 3004).

Guidance for specification option:

112 projection to outer face of track.

Wall fixing extension brackets (Ref 11214 and SG 3004).

Guidance for specification option:

142 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11215 and SG 3004).

Guidance for specification option:

192 mm projection to outer face of track.

Wall fixing universal extension brackets (Ref 11154 and SG 3004).

Guidance for specification option:

120-148 mm projection to outer face of track.

Wall fixing universal extension brackets (Ref 11155 and SG 3004).

Guidance for specification option:

132-160 mm projection to outer face of track.

Wall fixing universal extension brackets (Ref 11156 and SG 3004).

Guidance for specification option:

182-210 mm projection to outer face of track.

Recess fixing (with recess profile SG 10862, mask SG 10864 and wedge SG 5118).

Adjustable wall fixing extension bracket colour

Black.
Silver.
White.

Manufacturer guidance

11200-11205 and 11205-11215 only.

Standard accessories

Not required.
Clamp (Ref SG 3004).
End cover (Ref SG 11235).
Roller gliders (Ref SG 11235).
Endstop (Ref SG 6007).

Other accessories

Not required.
Profile protector (SG 7002).
Wedge (Ref SG 7002).
Screw (Ref SG 10407).
Recess profile (SG 10862).
Mounting plate (SG 10865).
Curtain hooks (Ref 3571).
Curtain hooks (Ref 3582).
Wave heading tape (Ref 6349).
Wave hemming tape (Ref 6363).
2C Wave roller glider cord 60 mm (Ref 10869).
2C Wave roller glider cord 80 mm (Ref 10852).
Draw rod 50 cm (Ref SG 10430).
Draw rod 75 cm (Ref SG 10431).
Draw rod 100 cm (Ref SG 10432).
Draw rod 125 cm (Ref SG 10433).
Draw rod 125 cm (Ref SG 10434).
Wave curtain tap (Ref 6349).
Wave top hemming tape (Ref 6363).
Wave extension arm (Ref 6364).
Wave hanger (Ref 6365).
Wave carrier draw rod (Ref 6366).
Wave lead weight (Ref 10075).
Wave fabric weight (Ref 10076).

Track profile

32 x 23 mm.

Guidance for specification option:

(Width x depth).

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Product certifications

Quiet Mark Certification

Quiet Mark Certification

Silent Gliss Hand Op Curtain Track Quiet Mark Certificate 2022
