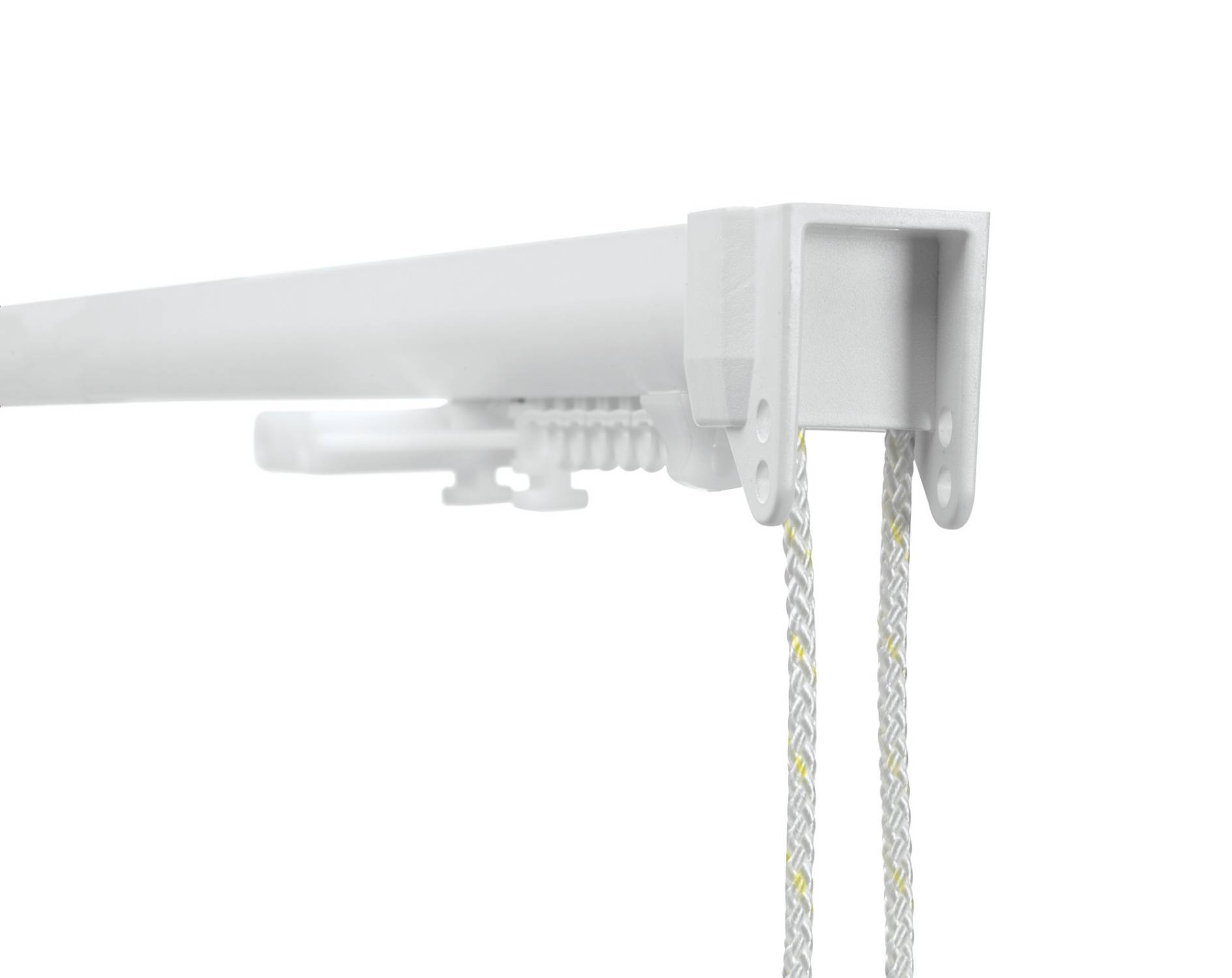

Curtain Track - Cord Operated - Silent Gliss SG 3840 Curved - Curtain Track

Verified by manufacturer 4 months ago

Silent Gliss Ltd Product certifications:
  • Quiet Mark Certification

    Quiet Mark Certification

    Certificate type

Cord operated curtain track for light to medium weight curtains. Ceiling or wall fixed. For use in commercial or residential interiors. Available in white and black. Suitable for wave curtains.

Jump to:
BOS
 +44 (0)1843 863571 Website

Application

Cord operated curtain track for light to medium weight curtains. Ceiling or wall fixed. For use in commercial or residential interiors. Available in white and black. Suitable for wave curtains.

Description

Curtain track with a curved profile wall or ceiling mounted track for medium weight curtains. It can also be used as a room divider as the track looks the same from both sides.


Features and benefits:

  • Curtain track can be bent to 200 mm radius (minimum).
  • Standard cord drop: 1500 mm, right hand pull.
  • Curtain gliders are normally fitted 14 per metre.

General information

Color

Black

Bronze

Grey

Silver

White

Finish

Powder-coated

Material

Aluminium

Shape

Trapezoid

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

SKU Code

Silent Gliss SG 3840

Product range

Curtain Tracks / Cord Operated Curtain Tracks

Specification data - Window curtain supports

Classification data

Support

Curtain tracks.

Overall length

6 m.

Guidance for specification option:

Tracks can be joined using connectors.

Manufacturer guidance

Standard length.

Material

Aluminium.

Execution

Installing curtain supports.

Colour/ Finish

Anodic grey powder coated.
Antique bronze powder coated.
Black powder coated.
Charcoal powder coated.
Matt white powder coated.
Silver anodized.
White powder coated.

Fixing

Ceiling fix with clamp (Ref SG 3825).
Ceiling fix with clamp (Ref SG 3832).
Ceiling fix with clamp (Ref SG 3826).
Wall fixing extension brackets (Ref 11200).

Guidance for specification option:

52 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11201).

Guidance for specification option:

72 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11202).

Guidance for specification option:

92 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11203).

Guidance for specification option:

92 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11204).

Guidance for specification option:

112 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11205).

Guidance for specification option:

192 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11210).

Guidance for specification option:

52 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11211).

Guidance for specification option:

72 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11212).

Guidance for specification option:

92 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11213).

Guidance for specification option:

112 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11214).

Guidance for specification option:

142 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11215).

Guidance for specification option:

192 mm projection to outer face of track.

Wall fixing universal extension brackets (Ref 11154).

Guidance for specification option:

102-130 mm projection to outer face of track.

Wall fixing universal extension brackets (Ref 11155).

Guidance for specification option:

132-160 mm projection to outer face of track.

Wall fixing universal extension brackets (Ref 11156).

Guidance for specification option:

182-210 mm projection to outer face of track

Manufacturer guidance

Track fixing brackets to be at approximately 600 mm centres. Fix nylon ceiling clamps Ref 3826 to extension brackets with M4 x 8 mm screws.

Bracket colour

Silver and white.

Guidance for specification option:

11200-11205 and 11205-11215 only.

White only.

Guidance for specification option:

For 11154-11156.

Standard accessories

3.5 mm diameter cord.

Guidance for specification option:

Ref 3090.

19 mm (8 no) countersunk screws.

Guidance for specification option:

Ref 1148C.

Gliders in strip form.

Guidance for specification option:

(20 No. 11300) Ref 11301.

Overlap.

Guidance for specification option:

Ref 6288.

Pulley set, complete with pilot runners.

Guidance for specification option:

 Ref 3845.

Roller gliders.

Guidance for specification option:

Ref 6283.

Spring stop.

Guidance for specification option:

Ref 6086.

Other accessories

Not required.
Connecting bridge.

Guidance for specification option:

Ref 3820.

Curtain hooks.

Guidance for specification option:

Ref 3571/ 3582/ 3599.

Intermediate pulley.

Guidance for specification option:

Ref 3833.

Overlap.

Guidance for specification option:

Ref 6063.

Pulley set, complete with pilot runners.

Guidance for specification option:

Ref 3846.

Roller gliders.

Guidance for specification option:

Ref 6098.

Retrofit gliders.

Guidance for specification option:

Ref 3548.

Spacer for pelmet board.

Guidance for specification option:

Ref 0516.

Spring stop.

Guidance for specification option:

Ref 6053.

Screw twist end stop.

Guidance for specification option:

Ref 6064.

2C Wave glider cord 60 mm.

Guidance for specification option:

Ref 11303.

2C Wave glider cord 80 mm.

Guidance for specification option:

Ref 11302.

Adjustable brake.

Guidance for specification option:

Ref 2255.

Wave curtain tape.

Guidance for specification option:

Ref 6349.

Wave top hemming tape.

Guidance for specification option:

Ref 6363.

Wave extension arm.

Guidance for specification option:

Ref 6364.

Wave hanger.

Guidance for specification option:

Ref 6365.

Wave carrier draw rod.

Guidance for specification option:

Ref 6366.

Wave lead weight.

Guidance for specification option:

Ref 10075.

Wave fabric weight.

Guidance for specification option:

Ref 10076.

Wave roller glider.

Guidance for specification option:

Ref 6099.

Track profile

22 x 21 mm.

Manufacturer guidance

Width x depth.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Aluminium

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

4

IFC
 -

4

Product certifications

Quiet Mark Certification

Quiet Mark Certification

Silent Gliss Cord Track Quiet Mark Certificate 2022
