Curtain Track - Hand Operated - Silent Gliss SG 6870 - Curtain Track
Verified by manufacturer 5 months ago
Quiet Mark Certification
Certificate type
Quiet Mark Certification
Certificate type

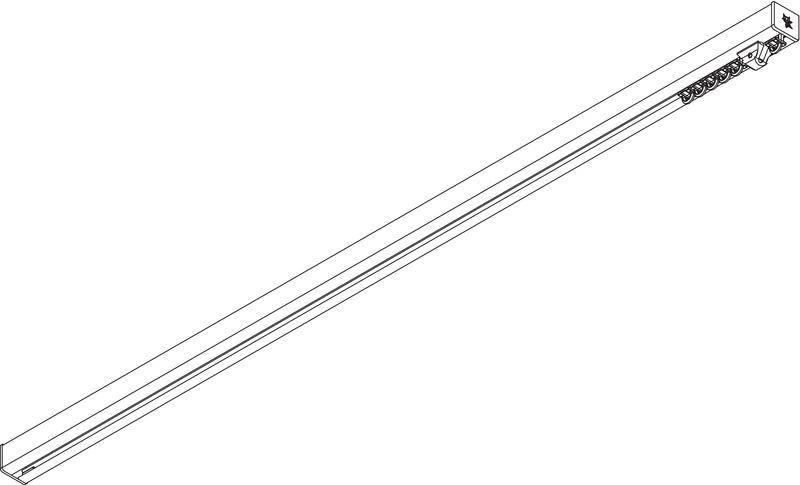

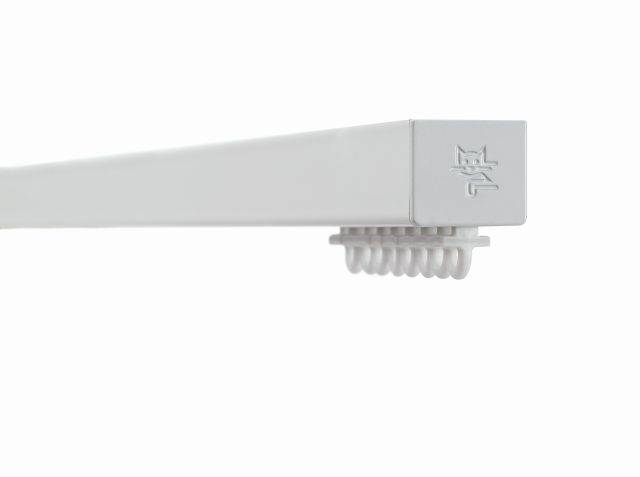

Square profile curtain track for medium weight curtains.
Application
Suitable for medium weight curtains.
Track fixing brackets/ clamps to be at 300–600 mm centres.
Description
A hand operated curtain track with a square profile for wall or ceiling fixing. This curtain track can also be used as a room divider as the track looks the same from both sides.
Features and benefits:
- Curtain track can be bent to 260 mm radius.
- Standard cord drop: 1500 mm, right hand pull.
- Curtain gliders are normally fitted 14 per metre.
- Curtain track recess profile SG 11230.
General information
Color | Beige Black Bronze Brown Cream |
Material | Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | N10/60 Curtain supports N10/230 Curtain supports |
SKU Code | SG 6870 |
Product range |
Specification data - Window curtain supports
Classification data | |
Overall length | 6 m. Guidance for specification option: Standard track length. Tracks can be joined using connectors. |
Colour/ Finish | Anodic grey powder coated. Antique bronze powder coated. Black powder coated. Charcoal powder coated. Matt white powder coated. Silver anodized. White powder coated. |
Fixings (white powder coated) | Metal secret ceiling clamps (Ref 3825). Guidance for specification option: With higher edge of profile to room side. Metal ceiling clamp (Ref 3832). Guidance for specification option: With higher edge of profile to room side. Nylon ceiling clamps (Ref 3826). Guidance for specification option: To extension brackets with M4 x 8 mm screws. Nylon wall fixing brackets (Ref 3836). Wall fixing extension brackets (Ref 11200 and SG 3826). Guidance for specification option: 52 mm projection to outer face of track Wall fixing extension brackets (Ref 11201 and SG 3826). Guidance for specification option: 72 projection to outer face of track. Wall fixing extension brackets (Ref 11202 and SG 3826). Guidance for specification option: 92 projection to outer face of track. Wall fixing extension brackets (Ref 11203 and SG 3826). Guidance for specification option: 112 projection to outer face of track. Wall fixing extension brackets (Ref 11204 and SG 3826). Guidance for specification option: 142 mm projection to outer face of track. Wall fixing extension brackets (Ref 11205 and SG 3826). Guidance for specification option: 192 mm projection to outer face of track. Wall fixing extension brackets (Ref 11210 and SG 3826). Guidance for specification option: 52 projection to outer face of track. Wall fixing extension brackets (Ref 11211 and SG 3826). Guidance for specification option: 72 projection to outer face of track. Wall fixing extension brackets (Ref 11212 and SG 3826). Guidance for specification option: 92 projection to outer face of track. Wall fixing extension brackets (Ref 11213 and SG 3826). Guidance for specification option: 112 projection to outer face of track. Wall fixing extension brackets (Ref 11214 and SG 3826). Guidance for specification option: 142 mm projection to outer face of track. Wall fixing extension brackets (Ref 11215 and SG 3826). Guidance for specification option: 192 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11154 and SG 3826). Guidance for specification option: 120-148 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11155 and SG 3826). Guidance for specification option: 132-160 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11156 and SG 3826). Guidance for specification option: 182-210 mm projection to outer face of track. |
Adjustable wall fixing extension bracket colour | Silver. White. Manufacturer guidance11200-11205 and 11205-11215 only. |
Standard accessories | Not required. 19 mm (8 no.) countersunk screws (Ref 1148C). Clamp (Ref 3825). End cover (Ref 3842). Gliders in strip form (20 No. 11300 - Ref 11301). |
Other accessories | Not required. Curtain hooks (Ref 3571). Curtain hooks (Ref 3582). Twist clamp (Ref 3832). Wave heading tape (Ref 6349). Wave hemming tape (Ref 6363). 2C Wave glider cord 60 mm (Ref 11303). 2C Wave glider cord 80 mm (Ref 11302). Adjustable brake (Ref 2255). Wave curtain tape (Ref 6349). Wave top hemming tape (Ref 6363). Wave extension arm (Ref 6364). Wave hanger (Ref 6365). Wave carrier draw rod (Ref 6366). Wave lead weight (Ref 10075). Wave fabric weight (Ref 10076). Wave roller glider (Ref 6099). |
Track profile | 22 x 21 mm. Guidance for specification option: (Width x depth). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Product certifications
Quiet Mark Certification
Silent Gliss Hand Op Curtain Track Quiet Mark Certificate 2022
Quiet Mark Certification
Silent Gliss Metropole Quiet Mark Certificate 2022
