Curtain Track - Hand Operated - Silent Gliss SG 6010 - Curtain Tracks

Verified by manufacturer 4 months ago

Silent Gliss Ltd

Hand operated curtain track for light to medium weight curtains. Powder coated aluminium with nylon gliders ensure smooth curtain operation. For commercial and residential interiors. Bendable.

Jump to:
+44 (0)1843 863571 Website

Application

Hand operated curtain track for light to medium weight curtains. Powder coated aluminium with nylon gliders ensure smooth curtain operation. For commercial and residential interiors. Bendable.

Description

Hand operated curtain track for medium weight curtains.


Features and benefits:

  • Elegant, bendable profile included with a minimum radius of 150 mm.
  • Easy fixing with hidden clamp fixing channel.
  • Systems can be planned to any length due to connecting bridges.
  • For use with the Wave curtain heading system - consult manufacturer for details.

General information

Color

White

Finish

Powder-coated

Material

Aluminium

Shape

Elliptical

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

SKU Code

Silent Gliss SG 6010

Product range

Curtain Tracks / Hand Operated Curtain Tracks

Specification data - Window curtain supports

Classification data

Support

Curtain tracks.

Opening dimensions

Guidance for specification option:

Bespoke. Consult manufacturer and insert requirements.

Overall length

Guidance for specification option:

Bespoke (can be joined using connectors). Consult manufacturer and insert requirements.

Material

Aluminium.

Finish

Powder-coated.

Colour

White.
Black.

Operation

Manual.

Integral accessories

Fixing brackets.
Nylon two-component glider.

Execution

Installing curtain supports.

Fixing

Clamp (3825).
Bracket (3832).
Wall fixing extension brackets (Ref 11200).

Guidance for specification option:

70 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11201).

Guidance for specification option:

90 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11202).

Guidance for specification option:

110 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11203).

Guidance for specification option:

130 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11204).

Guidance for specification option:

160 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11205).

Guidance for specification option:

210 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11210).

Guidance for specification option:

70 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11211).

Guidance for specification option:

90 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11212).

Guidance for specification option:

110 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11213).

Guidance for specification option:

130 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11214).

Guidance for specification option:

160 mm projection to outer face of track.

Wall fixing extension brackets (Ref 11215).

Guidance for specification option:

210 mm projection to outer face of track.

Wall fixing universal extension brackets (Ref 11154).

Guidance for specification option:

120-148 mm projection to outer face of track.

Wall fixing universal extension brackets (Ref 11155).

Guidance for specification option:

150-178 mm projection to outer face of track.

Wall fixing universal extension brackets (Ref 11156).

Guidance for specification option:

200-228 mm projection to outer face of track.

Extension bracket colour

Silver.

Guidance for specification option:

11200-11205 and 11205-11215 only.

White.
Black.

Accessories/ Other requirements

Endcover (6018).
Endstop (6065).
2C glider (20 x 11300) on strip (11301).
Connecting bridge (Ref 3802).
Roller glider (6098/6283).
Curtain hooks (Ref 3571).
Curtain hooks (Ref 3582).
Twist clamp (Ref 3832).
2C Wave glider cord 60mm (Ref 11303).
2C Wave glider cord 80mm (Ref 11302).
Adjustable brake (Ref 2255).
Wave curtain tape (Ref 6349).
Wave top hemming tape (Ref 6363).
Wave extension arm (Ref 6364).
Wave hanger (Ref 6365).
Wave carrier draw rod (Ref 6366).
Wave lead weight (Ref 10075).
Wave fabric weight (Ref 10076).
Wave roller glider (Ref 6099).

Radius

150 mm.

Guidance for specification option:

(Minimum).

Manufacturer guidance

Profile radius (6010).

Fixings

Track fixing brackets/ clamps to be at 300–600 mm centres.

Sustainability data

Material

Aluminium

Literature

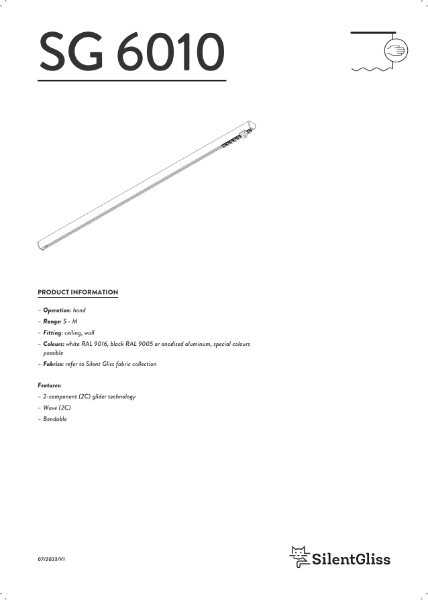

Silent Gliss SG 6010 Curtain Track Hand Operated
