Curtain Track - Hand Operated - Silent Gliss SG 1090 - Curtain Tracks
Verified by manufacturer 2 months ago
Hand operated curtain track.
Application
Suitable for lightweight curtains.
Description
Unobtrusive wall or ceiling mounted track for lightweight curtains. Double fixing is possible for two parallel curtains with a single fixing screw.
Features and benefits:

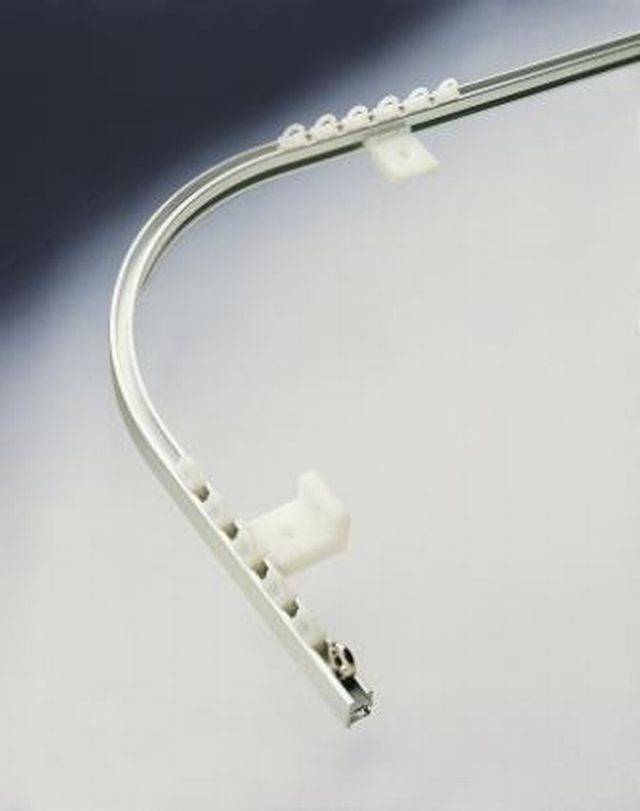

- Track can be bent to 200 mm radius.
- Gliders are normally fitted 16 per metre.
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium |
Length | 5000 mm |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | N10/60 Curtain supports N10/230 Curtain supports |
Product range |
Specification data - Window curtain supports
Classification data | |
Support | Curtain tracks. |
Opening dimensions | 8.2 x 12 mm. Manufacturer guidanceOverall width x depth. |
Overall length | 5 m. Guidance for specification option: Tracks can be joined using connectors. |
Material | Aluminium. |
Finish | Powder coated. |
Colour | White. |
Execution | Installing curtain supports. |
Fixing | Ceiling nylon fixing brackets (Ref 3176). Double ceiling brackets (Ref 3113). Guidance for specification option: 63 mm centres. Double ceiling brackets (Ref 3115). Guidance for specification option: 86 mm centres. Wall fixing extension brackets (Ref 11200). Guidance for specification option: 70 mm projection to outer face of track. Wall fixing extension brackets (Ref 11201). Guidance for specification option: 90 mm projection to outer face of track. Wall fixing extension brackets (Ref 11202). Guidance for specification option: 110 mm projection to outer face of track. Wall fixing extension brackets (Ref 11203). Guidance for specification option: 130 mm projection to outer face of track. Wall fixing extension brackets (Ref 11204). Guidance for specification option: 160 mm projection to outer face of track. Wall fixing extension brackets (Ref 11205). Guidance for specification option: 210 mm projection to outer face of track. Wall fixing extension brackets (Ref 11210). Guidance for specification option: 70 mm projection to outer face of track. Wall fixing extension brackets (Ref 11211). Guidance for specification option: 90 mm projection to outer face of track. Wall fixing extension brackets (Ref 11212). Guidance for specification option: 110 mm projection to outer face of track. Wall fixing extension brackets (Ref 11213). Guidance for specification option: 130 mm projection to outer face of track. Wall fixing extension brackets (Ref 11214). Guidance for specification option: 160 mm projection to outer face of track. Wall fixing extension brackets (Ref 11215). Guidance for specification option: 210 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11154). Guidance for specification option: 120-148 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11156). Guidance for specification option: 150-178 mm projection to outer face of track. Universal nylon wall fixing brackets (Ref 3175). Guidance for specification option: 200-228 mm projection to outer face of track. Manufacturer guidanceTrack fixing brackets to be at approximately 450 mm centres. |
Accessories | Not required. End stop (Ref 3016). Gliders in strip form (20 No. 3533 - Ref 3534). 25 mm roundhead screws (8 no - Ref 18R). Guidance for specification option: For track brackets. 37 mm roundhead screws (8 no - Ref 1128R). Guidance for specification option: For track brackets. |
Other options | Not required. Aluminium draw rod (Ref 4092S). Connecting bridge (Ref 3096). Cover for extension brackets (Ref 3133). Curtain hooks (Ref 3582/ 3599). Gliders (Ref 3533). Plastic draw rod (Ref 4092). Retrofit gliders (Ref 3548). Rotating gliders (Ref 3570). Screw twist end stop (Ref 3071). Spacer for pelmet board (Ref 0516). Standard curtain tape (Ref 3562). |
Sustainability data
Material | Aluminium |
Literature
Hand Operated Curtain Tracks Technical Catalogue by Silent Gliss
