CS Louvres Rain Defence Louvre RS-5215

Name: CS Louvres Rain Defence Louvre RS-5215
Brand: Construction Specialties (UK) Ltd
SKU: bkf9Kg4kUqtUkAZCwAYxA7

Verified by manufacturer 5 days ago

Construction Specialties (UK) Ltd

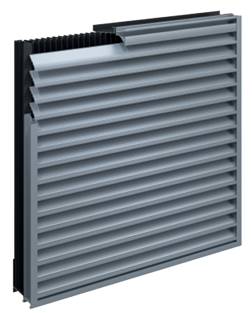

Compact double-bank louvres offering a continuous blade appearance, excellent rain defence, and a very good airflow performance, classified as Class A up to 3.5 m/s.

Jump to:

Request BIM

+44 (0)1296 652800 Website

Application

Suitable for applications requiring both resistance to wind-driven rain and a continuous line appearance.

Description

Compact double-bank louvres offering a continuous blade appearance, excellent rain defence, and a very good airflow performance, classified as Class A up to 3.5 m/s.

Features and benefits:

Horizontal front blades form a continuous architectural line across the façade.
Visible mullion configuration available, if preferred.
Rear vertical blade module provides resistance to wind-driven rain.
Rear modules are powder-coated black as standard to reduce visual impact.
Blanking panels are used in the rear louvre frames in non-active zones to reduce material use and cost.
Modules are factory pre-assembled and supplied as double-bank units for ease of installation.
Sightproof design.

General information

Color	Silver Other
Finish	Mill Powder-coated Anodized
Material	Aluminium
Shape	Square Rectangle
Length	135 mm Guidance for specification option: Unit depth.
Width	Bespoke Guidance for specification option: Module dimensions (based on 1.5 kPa wind load): Max height: 3000 mm* Max width: 3600 mm* *For manual handling purposes, a maximum of 80 kg per unit is recommended. Custom sizes can be manufactured. Louvre weight, based on a 2 m x 2 m module size, is 33 kg/m².
Height	Bespoke Guidance for specification option: Module dimensions (based on 1.5 kPa wind load): Max height: 3000 mm* Max width: 3600 mm* *For manual handling purposes, a maximum of 80 kg per unit is recommended. Custom sizes can be manufactured. Louvre weight, based on a 2 m x 2 m module size, is 33 kg/m².
Warranty description	Two year Guidance for specification option: Product warranty. 30 year Guidance for specification option: Up to 30 year finish warranty (powder-coated or anodized). Subject to terms and conditions.

Uniclass	Pr_30_59_48_04 Aluminium louvre panel unitsPrimary Ss_25_10_20/540 Custom-made louvres
CAWS	H11/140 Louvres L10/54 Louvres L10/650 Metal louvres

SKU Code	RS-5215

Specification data - Aluminium louvre panel units

Classification data
Size (l x w x d)	- Manufacturer guidance Insert length and width requirements or insert As drawing or As schedule. Consult manufacturer for maximum dimensions. Unit depth: 135 mm. Combine units to suit any requirements.
Material	Aluminium alloy 6063-T6.
Finish	Milled. Polyester powder-coated, matt, colour. Guidance for specification option: Insert colour requirements. Polyester powder-coated, gloss, colour. Guidance for specification option: Insert colour requirements. Anodized, clear. Anodized, colour. Guidance for specification option: Insert colour requirements.
Colour	As Finish.
Construction	Supplied as modules, mechanically assembled in the factory. Guidance for specification option: Configured with an invisible joint detail between units for continuous line appearance on the facade. If preferred, visible mullion configuration, utilising interlocking mullions is between front louvres, is available. Consult manufacturer for details.
Weather performance	-
Water penetration class (minimum)	To BS EN 13030, Class A. Guidance for specification option: Up to 3.5 m/s.
Discharge loss coefficient (minimum)	To BS EN 13030, Class 2. Guidance for specification option: Airflow coefficient Ce (entry): Class 3, 0.288; Cd (discharge): 0.317.
Louvre configuration	-
Number of banks	Two.
Blade orientation	Horizontal.
Blade pitch	54 mm. Guidance for specification option: Front louvre blades.
Blade angle	Fixed.
Accessories	Not required. Bird/ vermin guard, galvanized steel welded mesh. Bird/ vermin guard, expanded aluminium welded mesh. Blanking panel, single-skin. Blanking panel, insulated panels. Insect mesh. Dampers.

Sustainability data

Material	Aluminium
Recyclability	Yes.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	55 % Guidance for specification option: Minimum 55% recycled content (mix of pre- and post-consumer scrap). Consult manufacturer for other alloy options if required.
