Corner Protection Angle
Description

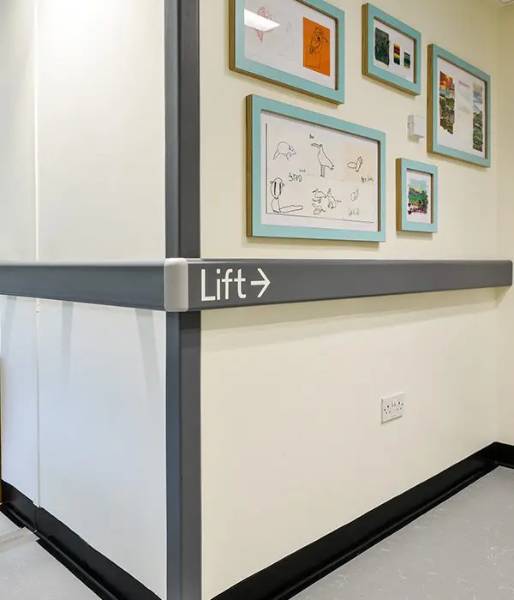

Yeoman Shield Corner Protection Angles and Trims provide protection to vulnerable corners from impact damage caused by either vehicular or pedestrian traffic and are available in a range of sizes and materials. Corner Protection Angles and Trims are ideal for use in hospitals, supermarkets, nursing homes, schools, banks, airports, offices and any other areas which are subject to damage by impact or abrasion.

Fixing:

  • Double sided adhesive tape.
  • Gun grade synthetic rubber/ resin adhesive.
  • Screwed to door using manufacturer's screws, washers and matching caps.

General information

Material

Vinylac

Manufacturer's standard.

Aluminium

Brass

Clear PVCu

Carbon steel nylon coated

Carbon steel self coloured

Stainless steel

Finish

Stippled

Size

38 x 38 x 3500 mm

Uniclass 2015

Pr_35_90_43_15 Corner guardsPrimary

CAWS

P20/170 Proprietary

P20/20 Hardwood

P20/30 Proprietary

Specification data - Corner guards

Product Reference

Corner Protection Angles and Trims

Type

90° corner 25 x 25 mm

Trim.

90° corner 38 x 38 mm

Trim.

90° corner 50 x 50 mm

Trim.

90° corner 65 x 65 mm

Trim.

90° corner 38 x 38 mm

Trim.

90° corner 50 x 50 mm

Trim.

90° corner 65 x 65 mm

Trim.

90° corner 75 x 75 mm

Angle.

135° corner 38 x 38 mm

Angle.

135° corner 50 x 50 mm

Angle.

135° corner 65 x 65 mm

Angle.

135° corner 75 x 75 mm

Angle.

___° corner ___ x ___ mm

Corner protection angles are available to order in any size.

Material

Vinylac

Manufacturer's standard.

Aluminium

Brass

Clear PVCu

Carbon steel nylon coated

Carbon steel self coloured

Stainless steel

Colour

As schedule ___

Standard product features

Dimensions:

  • Corner protection trims are extruded 2 mm thick, manufactured in 3.5 m lengths in 90° format.
  • Corner protection angles are extruded 3 mm thick, manufactured in 3.5 m lengths in both 90° and 135° format. Normally supplied in 1.15 m lengths but can be cut to any length.

Finish:

  • Corner protection trims have a smooth finish.
  • Corner protection angles have a stippled finish to help conceal the effects of impact and abrasion.

Materials:

Extruded angles and trims are manufactured from Vinylac, a specially formulated PVCu.

Product Options

Colour:

Standard colours are listed, special colours available subject to order quantity or premium.

  • BS 00 A 01 - Light Grey.
  • BS 00 A 05 - Mild Grey.
  • BS 00 E 53 - Black.
  • BS 04 E 49 - Pink Rose.
  • BS 04 E 53 - Red.
  • BS 08 B 17 - Mushroom.
  • BS 08 B 21 - Mocha.
  • BS 08 B 29 - Brown.
  • BS 08 E 51 - Yellow.
  • BS 10 B 15 - Cream.
  • BS 10 C 33 - Primrose.
  • BS 10 E 50 - Grapefruit.
  • BS 14 C 31 - Sage Green.
  • BS 14 E 53 - Green.
  • BS 18 C 35 - Pigeon Blue.
  • BS 18 E 53 - Regatta Blue.
  • BS 20 C 33 - Powder Blue.
  • BS 22 B 17 - Lavender.
  • BS 24 C 39 - Aubergine.
  • RAL 1001 - Buff.
  • RAL 2012 - Tangerine.
  • RAL 3003 - Burgundy.
  • RAL 3027 - Red.
  • RAL 4001 - Lilac.
  • RAL 4004 - Bordeaux.
  • RAL 4012 - Amethyst.
  • RAL 5000 - Trafalgar Blue.
  • RAL 5001 - Steel Blue.
  • RAL 5002 - Dark Blue.
  • RAL 5012 - Cornflower Blue.
  • RAL 5017 - Royal Blue.
  • RAL 5018 - Aqua Blue.
  • RAL 5024 - Pastel Blue.
  • RAL 6004 - Opal Green.
  • RAL 6019 - Pastel Green.
  • RAL 6027 - Light Green.
  • RAL 7015 - Dark Grey.
  • RAL 7037 - Dusty Grey.
  • RAL 7046 - Graphite.
  • RAL 9016 - White.
  • Avocado.
  • Blush.
  • Heather.
  • Orange.
  • Sky Blue.
  • Slate Green.
  • Terracotta.

Digital objects
PlatformCompatibleVersionCertified to
IFC
 IFC2X3 2 1.3
Revit
 Revit 2015 2 1.3
Download now from NBS National BIM Library
