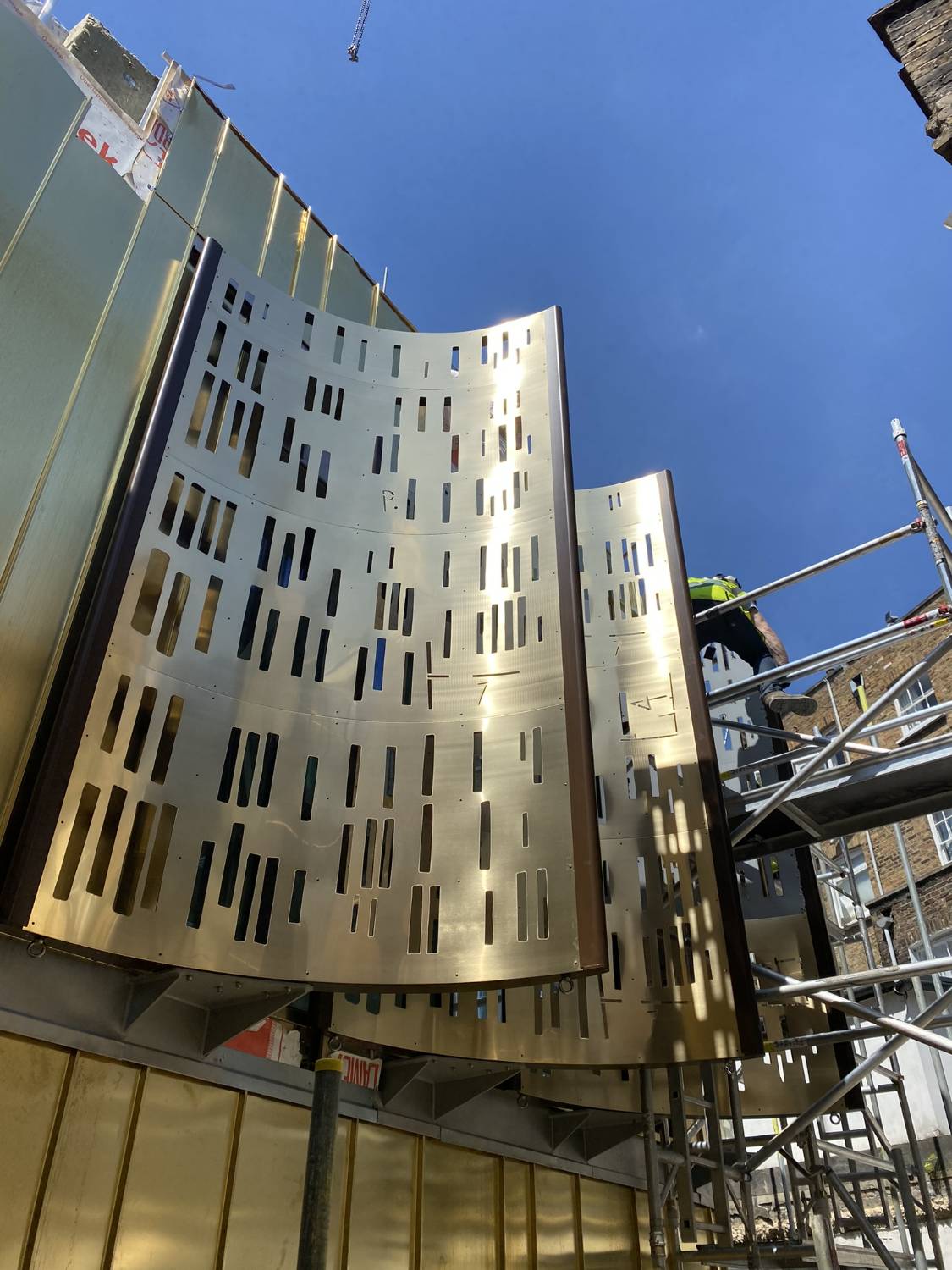

ContraClad Architectural Bespoke Fin & Mesh Facades
Verified by manufacturer 2 days ago
Aluminium architectural bespoke fin and mesh facades.
Application
- Office facades.
- Schools & Universities
- Offices.
- Car showrooms
- Leisure Centres
- Shopping Centres & Retail Units
- Commercial Buildings.
- Data Centres
- Car Parks (MSCP)
- Hotels
- Hospitals
- Care Homes & Retirement Villages
- Airports
- Museums & Art Galleries
- Inside & outside applications
Description
Contrasol Bespoke Facades are project specific and tailored architectural projecting fin and mesh façade systems and screening solutions.
General information
Color | Other Beige Black Blue Bronze |
Finish | Anodized Powder-coated Mill Textured Grained |
Material | Aluminium Stainless steel Brass Bronze Copper |
Shape | Rectangle Circle Elliptical Diamond Kite |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H31/120 Metal profiled sheet self-supporting cladding/ roof covering L10/54 Louvres L10/650 Metal louvres |
Specification data - Louvre screen systems
Classification data | |
Louvres | |
Operation | Fixed. |
Installation fasteners | A2 stainless steel, with bi-metallic corrosion protection. |
Finish: | Polyester powder-coated to BS EN 12206-1 to minimum 40 μm. Guidance for specification option: Available in RAL/ BS colours from the standard range. Matt/ gloss/ satin finish. Insert requirements. Anodized to 25 μm to BS 3987. Mill finish. |
Colour: | Manufacturer guidanceInsert requirements. |
Reaction to fire | To BS EN 13501-1, Class A1. To BS EN 13501-1, Class A2. |
Pattern | Manufacturer guidanceStandard and bespoke patterns available, please consult manufacturer |
Material: | Aluminium. Nordic brass. Stainless steel. |
Thickness: | Manufacturer guidanceBespoke to suit project requirements. |
Brackets | Galvanized carbon steel S275 or similar) welded/folded. Aluminium Grade 6063T6/6082T6. |
Panel Type | Bespoke to suit project requirements. |
Profiles | Manufacturer guidanceHead/Jamb/Sill Profiles Bespoke to suit project requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium Stainless steel Brass Bronze Copper Cor-Ten Glass Metal Steel Timber Other |
Recyclability | The global recycling efficiency rate (RER) of aluminium is currently 76% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceAvailable by request in low carbon aluminium billet/ingot maximum 4.0 kg CO2-equivalents per kg of aluminium |
Expected Life | 80 year |
Similar products from Contrasol Ltd

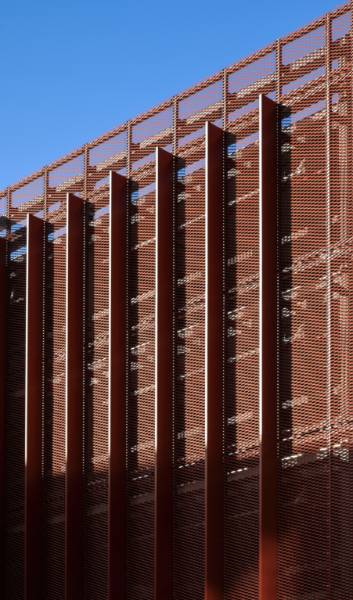

Data Centre & Gantry Façade Systems - ContraClad Architectural Expanded Mesh Facades
Data Centre & Gantry Façade Systems Continuous Aluminium Façade Fin Systems - Aerofoil
Data Centre & Gantry Façade Systems Continuous Aluminium Façade Fin Systems - Cubic

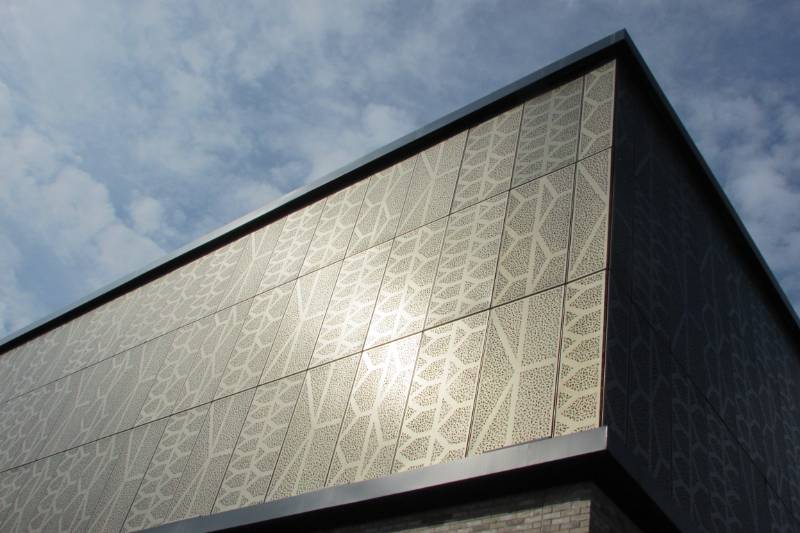

Data Centre & Gantry Façade Systems- ContraClad Architectural Perforated Mesh Facades

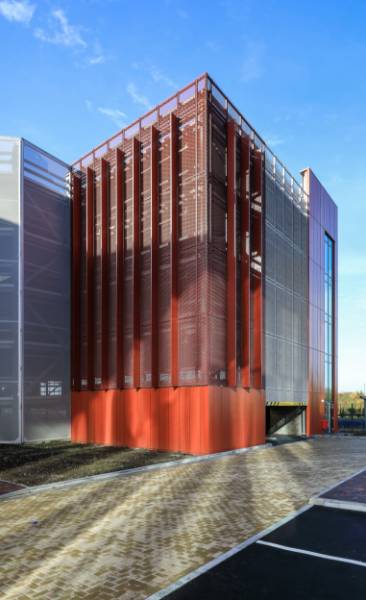

MSCP Façade Mesh Systems - ContraClad Architectural Expanded Mesh Facades

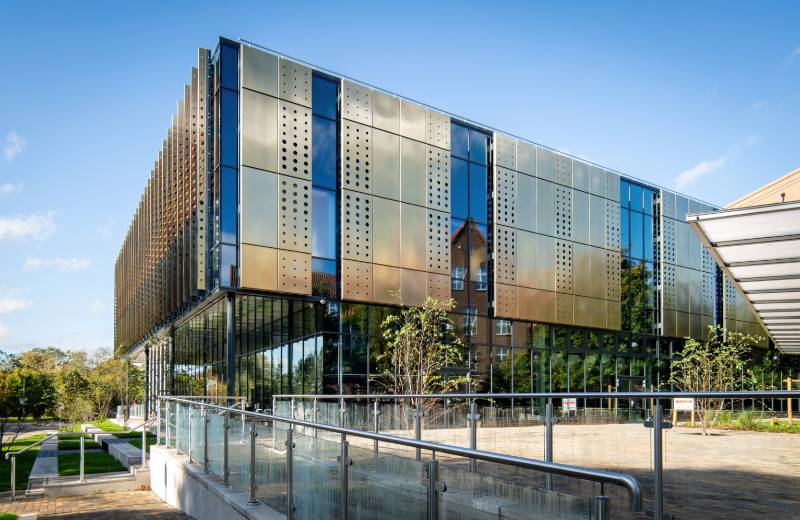

MSCP Façade Mesh Systems - ContraClad Architectural Perforated Mesh Facades
