Conservation Tilt & Slide Spring Sash Timber Window

Name: Conservation Tilt & Slide Spring Sash Timber Window
Brand: Mumford & Wood Ltd
SKU: 2oBs283hi4ucu5eaJu7yZx

Verified by manufacturer 2 months ago

Mumford & Wood Ltd

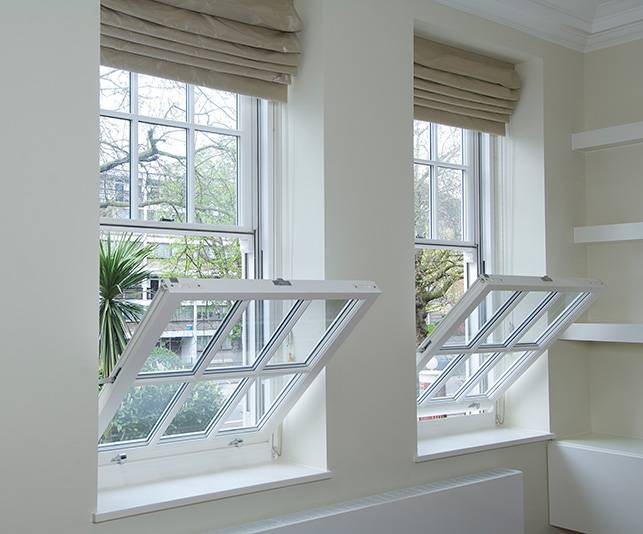

Spring balanced operated timber Sash Window with a tilt in bottom sash.

Jump to:

+44 (0)1621 818155 Website

Application

Suitable for any residential, commercial properties and conservation areas.

Description

The conservation Tilt & Slide spring sash window is a modern-day alternative to the cord & weighted box sash window. It uses a concealed spring-loaded mechanism instead of the cords, weights and pulleys found in a traditional sash window, this has the advantage of allowing for a smaller structural rebate or installation into a flush reveal.

As part of the Conservation range, our Tilt & Slide spring sash windows offer a choice of frame profiles and glazing bars, along with a variety of double glass unit depths and specifications to ensure that your aesthetic, thermal and acoustic requirements are achieved.

General information

Color	White Guidance for specification option: As standard. Manufacturer guidance Colours from the RAL classic range and colour matching also available.
Finish	Painted
Material	Wood Timber
Shape	Rectangle
Width	Bespoke
Height	Bespoke

Uniclass	Pr_30_59_98_96 Wood window unitsPrimary
CAWS	L10/10 Wood windows L10/210 Wood windows

Product range	Conservation Range

Specification data - Wood window units

Dimensions and configurations	- Manufacturer guidance Insert requirements or refer to a drawing or schedule.
Product performance	-
Thermal	-
Whole window U-value	1.4 W/m2K or better subject to chosen glass specification.
Frame	-
Wood species	Engineered Redwood frame and sashes with Red Grandis external liners and meeting rails with hardwood Sapele cill. Engineered Red Grandis frame and sashes. Manufacturer guidance Engineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified.
Chain of custody	FSC.
Finish as delivered	Three coats of spray applied water based micro-porous paint. Three coats of spray applied water based micro-porous stain.
Preservative treatment to wood components	Teknol Aqua 1410.
Ventilator	Not required. Concealed through frame head trickle ventilator (reduced EA). Trickle ventilator (4600 mm EA). Guidance for specification option: Surface mounted canopy.
Frame horns	Sash horns not required. Sash horns required.
Glazing or infill	-
Requirements	24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.0. 24.8 mm Acoustic Double glazed unit comprising 6.8 mm Sound Control Laminate / 14 mm Argon/ 4mm Tough Low E 1.2. 24.8 mm Acoustic Double glazed unit comprising 8.8 mm Sound Control Laminate / 10 mm Krypton/ 6 mm Tough Low E 1.0. 27.6 mm Enhanced Acoustic Double glass unit comprising 10.8 mm Sound Control Laminate / 10 mm Krypton / 6.8 mm Sound Control Laminate Low E 1.0. 14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0. 16.8 mm Double glass unit comprising 6.8 mm Laminate / 6mm Krypton / 4 mm Tough Low E 1.0. Single glass 4 mm Toughened. Single glass 6 mm Toughened. Single Glass 6.8 mm Sound Control Laminate. Single Glass 4.5 mm Goetheglas Restoration Glass. Manufacturer guidance Internally dry glazed and vented with glazing tapes in accordance with Glass and Glazing Federation requirements.
Hardware	Polished brass sash catch. Polished brass sash lifts. Polished brass sash lock. Polished chrome sash catch. Polished chrome sash lifts. Polished chrome sash lock. Satin chrome sash catch. Satin chrome sash lifts. Satin chrome sash lock. Antique brass sash catch. Antique brass sash lifts. Antique brass sash lock. Oil rubbed bronze sash catch. Oil rubbed bronze sash lifts. Oil rubbed bronze sash lock. Satin nickel sash catch. Satin nickel sash lifts. Satin nickel sash lock. Aged brass sash catch. Aged brass sash lifts. Aged brass sash lock. Satin brass sash catch. Satin brass sash lifts. Satin brass sash lock. Light antique brass sash catch. Light antique brass sash lifts. Light antique brass sash lock. Other. Guidance for specification option: Alternatives available in various finishes from the likes of Croft, consult manufacturer for details.
Operation	-
Type	Manual. Guidance for specification option: Counter balanced with spring balances with tilt in mechanism to bottom sash.

Colour	White (RAL 9003). Guidance for specification option: Standard. Colour from RAL classic range Guidance for specification option: Insert requirement. Colour match. Guidance for specification option: Insert requirement. Dual finish. Guidance for specification option: Insert requirement.
Frame section	74 x 160 mm Guidance for specification option: Liner x depth.
Sash	64 x 57 mm with 94 mm bottom rail and 43 mm midrail. Manufacturer guidance Sash section (top/ side rail x depth).
Mullion sections	78 mm. 98 mm.
Sill section (height x depth)	68 x 163 mm. 90 x 163 mm.
Sill projection	35 mm. 60 mm. 85 mm. 110 mm. 125 mm. 140 mm. Guidance for specification option: 90 x 163 mm sill required. Flush. Show more
Horns	Cill horns not required. Cill horns as drawing.
Staff bead	Click fit removable staff bead (not to jambs). Timber glued and pinned.
External liner mould	Bead mould. Ovolo mould. Lambs tongue mould. Not required.
Windowboard groove	Required. Not required.
Internal Glazing Bars and/or Perimeter Bead	18 mm Fine Lambs Tongue. 18 mm Ovolo. 18 mm Square. 22 mm Lambs Tongue. 22 mm Ovolo. 22 mm Square. 28 mm Ovolo. Show more
External Glazing Bars	18 mm chamfered putty bar. 22 mm chamfered putty bar. 28 mm chamfered putty bar. 6 mm ‘antiqued’ lead to internal and external faces of the outer pane. 9 mm ‘antiqued’ lead to internal and external faces of the outer pane. 12 mm ‘antiqued’ lead to internal and external faces of the outer pane. Show more
Perimeter/Integral spacer bar	Black warm edge perimeter spacer and integral glazing bars within unit cavity. Guidance for specification option: 24 & 24.8 glazing. White warm edge perimeter spacer and integral glazing bars within unit cavity. Guidance for specification option: 24 & 24.8 glazing. Black aluminium perimeter spacer. Guidance for specification option: 14 & 14.8 glazing. White aluminium perimeter spacer. Guidance for specification option: 14 & 14.8 glazing.
Beading	Internal cassette beading.
Child restrictor	Not required. Required.
Weather seal (factory applied)	Schlegel Aquamac AQ109.

Sustainability data

Country of product manufacture	United Kingdom
Recyclability	- Manufacturer guidance Refer to manufacturer website for product end of life instructions.
