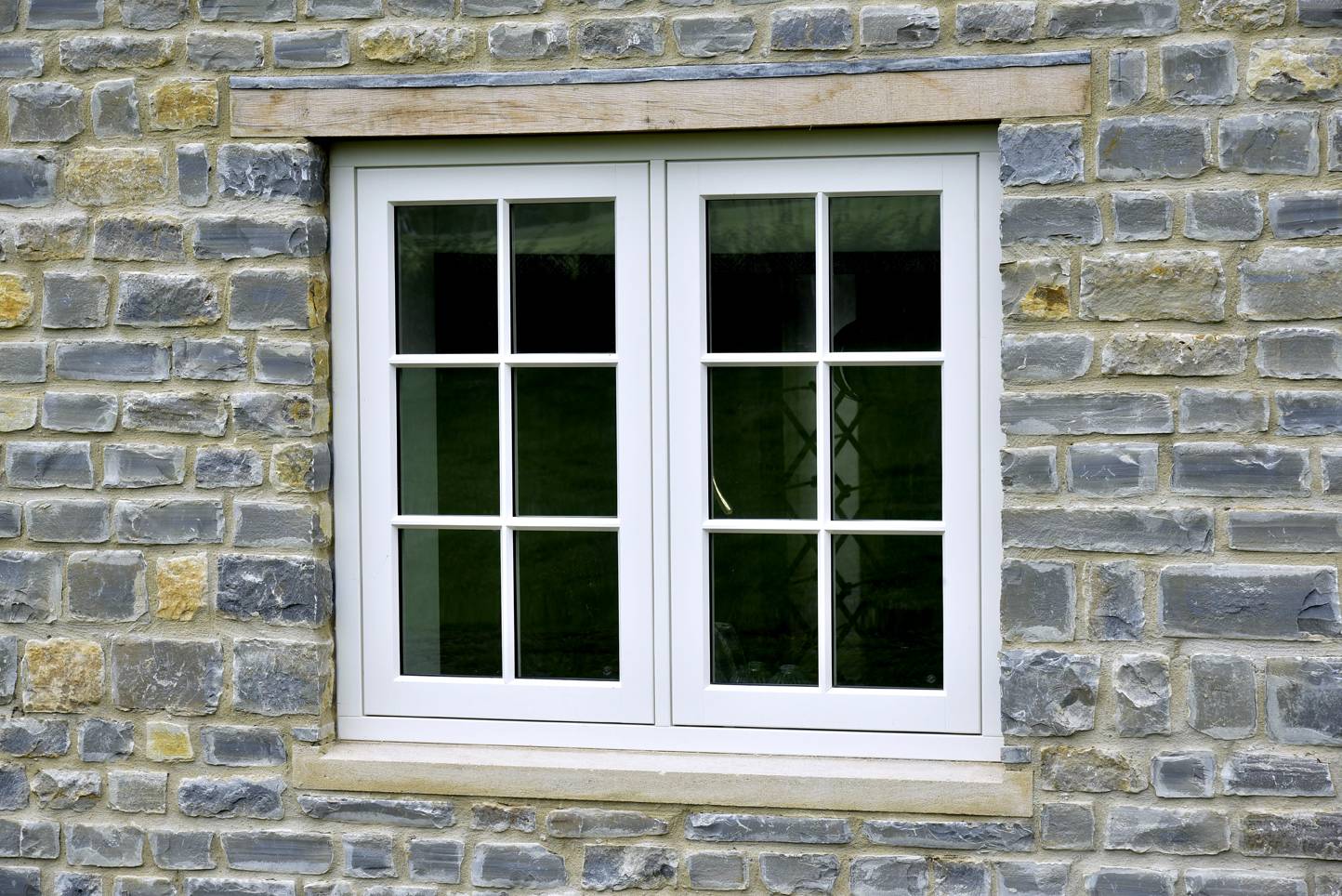

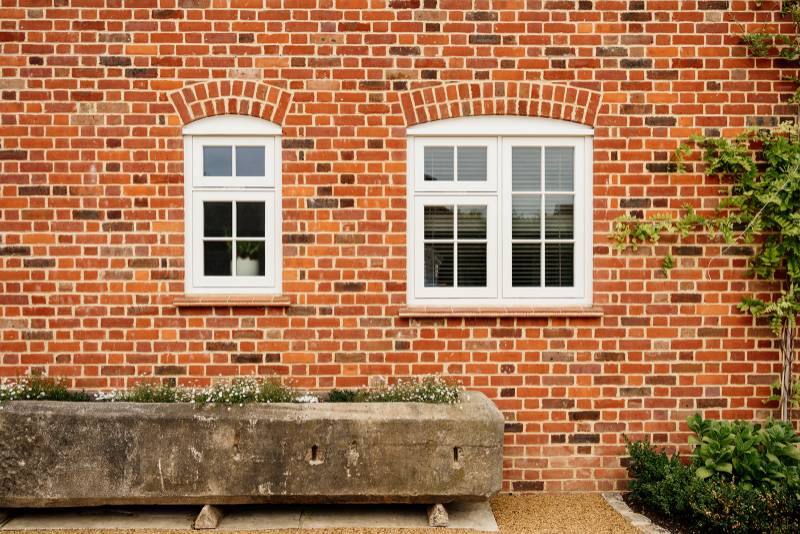

Name: Conservation Casement Timber Window
Brand: Mumford & Wood Ltd
SKU: x49Dunk9wP42vywztkcfNm

Dimensions and configurations	- Manufacturer guidance Insert requirements or refer to a drawing or schedule.
Product performance	-
Weather performance	-
Air permeability	To EN 1026:2000, Class 4.
Watertightness	To EN 1027:2000, Class 7A.
Resistance to wind load	To EN 12211:2000, Class C5.
Safety	-
Security level	PAS24:2016.
Environmental	-
Acoustic performance rating	Up to 44dB Rw (39dB Rw+Ctr) subject to chosen glass specification.
Thermal	-
Whole window U-value	1.4 W/m2K or better subject to chosen glass specification.
Frame	-
Profile	Ovolo. Lambs Tongue. Square.
Wood species	Engineered Redwood frame and sashes with Hardwood Sapele cill. Engineered Hardwood Red Grandis. Accoya.
Chain of custody	FSC.
Finish as delivered	Three coats of spray applied water based micro-porous paint. Three coats of spray applied water based micro-porous stain.
Preservative treatment to wood components	Tecknol Aqua 1410.
Ventilator	Not required. Concealed with timber head drip. Trickle ventilator (4600 mm EA) – Surface mounted.
Glazing or infill	-
Requirements	24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.2. 24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.0. 24.8 mm Acoustic Double glazed unit comprising 6.8 mm Sound Control Laminate / 14 mm Argon/ 4 mm Tough Low E 1.2. 24.8 mm Acoustic Double glazed unit comprising 8.8 mm Sound Control Laminate / 10 mm Krypton/ 6 mm Tough Low E 1.0. 27.6 mm Enhanced Acoustic Double glass unit comprising 10.8 mm Sound Control Laminate / 10 mm Krypton / 6.8 mm Sound Control Laminate Low E 1.0. 14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0. 16.8 mm Double glass unit comprising 6.8 mm Laminate / 6 mm Krypton / 4 mm Tough Low E 1.0. Single glass 4 mm Toughened. Single glass 6 mm Toughened. Single Glass 6.8 mm Sound Control Laminate. Single Glass 4.5 mm Goetheglas Restoration Glass. Manufacturer guidance Internally dry glazed and vented with glazing tapes in accordance with Glass and Glazing Federation requirements.
Hardware	Polished brass casement handle. Polished chrome casement handle. Satin chrome casement handle. Oil Rubbed Bronze casement handle. Antique Brass casement handle. Satin Nickel casement handle. Aged Brass Casement handle. Satin Brass casement handle. Light Antique Brass casement handle. Black iron monkey tail casement handle. Pewter monkey tail casement handle. Black iron bulb end casement handle. Pewter bulb end casement handle. Other. Guidance for specification option: Alternatives available in various finishes from the likes of Croft.
Operation	-
Type	Manual.

Colour	White (RAL 9003). Guidance for specification option: Standard. Colour from RAL classic range. Guidance for specification option: Insert requirement. Colour match. Guidance for specification option: Insert requirement. Dual finish. Guidance for specification option: Insert requirement.
Frame section (width x depth)	68 x 93 mm. 56 x 93 mm. 92 x 93 mm.
Sash	64 x 57 mm. 57 x 57mm. Manufacturer guidance Casement sash section (width x depth).
Flying mullion	Not required. Required.
Sill section (height x depth)	68 x 93 mm. 90 x 93 mm.
Sill projection	35 mm. 60 mm. 85 mm. 110 mm. 125 mm. 140 mm. Guidance for specification option: 90 x 93 mm sill required. Flush cill. Show more
Horns	Sill horns not required. Sill horns required.
Hinges	Concealed side swing egress/easy clean friction hinge with 90° opening. Concealed side swing easy clean friction hinge with 60° opening. Concealed side swing easy clean friction hinge with 60° opening with restrictor. Concealed top swing friction hinge. Concealed top swing friction hinge with restrictor. Direct glazed. Fixed sash. Side hung butt hinges. Show more
Windowboard groove	Not required. Required.
Head drip	Not required. Required.
Internal Glazing Bars and/or Perimeter Bead	18 mm Fine Lambs Tongue. 18 mm Ovolo. 18 mm Square. 22 mm Lambs Tongue. 22 mm Ovolo. 22 mm Square. 28 mm Ovolo. Black warm edge perimeter spacer and integral glazing bars within unit cavity. Guidance for specification option: 24 & 24.8 glazing. White warm edge perimeter spacer and integral glazing bars within unit cavity. Guidance for specification option: 24 & 24.8 glazing. Black aluminium perimeter spacer. Guidance for specification option: 14 & 14.8 glazing. White aluminium perimeter spacer. Guidance for specification option: 14 & 14.8 glazing. Show more
External Glazing Bars	18 mm chamfered putty bar. 22 mm chamfered putty bar. 28 mm chamfered putty bar. 6 mm ‘antiqued’ lead to internal and external faces of the outer pane. 9 mm ‘antiqued’ lead to internal and external faces of the outer pane. 12 mm ‘antiqued’ lead to internal and external faces of the outer pane. Show more
Beading	Internal cassette beading.
Child restrictor	Not required. Concealed child restrictor.
Weather seal (factory applied)	Deventer TPE Thermoplastic Elastomer.

Color	White Manufacturer guidance Colours from the RAL classic range, colour matching and stains also available.
Finish	Painted Stained
Material	Wood Timber
Shape	Rectangle
Width	Bespoke
Height	Bespoke
Warranty description	- Manufacturer guidance Timber: 30; Glazing, ironmongery and seals: 10; Paint finish: 10; Stain finish: 5.

Uniclass	Pr_30_59_98_96 Wood window unitsPrimary
CAWS	L10/10 Wood windows L10/210 Wood windows

Country of product manufacture	United Kingdom
Recyclability	- Manufacturer guidance Refer to manufacturer website for product end of life instructions.

Platform	Compatible	Version
IFC	IFC2X3	2
Revit	Revit 2015	2

Conservation Casement Timber Window

Application

Description

General information

Color

Manufacturer guidance

Finish

Material

Shape

Width

Height

Warranty description

Manufacturer guidance

Uniclass

CAWS

Product range

Specification data - Wood window units

Dimensions and configurations

Manufacturer guidance

Product performance

Weather performance

Air permeability

To EN 1026:2000, Class 4.

Watertightness

To EN 1027:2000, Class 7A.

Resistance to wind load

To EN 12211:2000, Class C5.

Safety

Security level

PAS24:2016.

Environmental

Acoustic performance rating

Up to 44dB Rw (39dB Rw+Ctr) subject to chosen glass specification.

Thermal

Whole window U-value

1.4 W/m2K or better subject to chosen glass specification.

Frame

Profile

Ovolo.

Lambs Tongue.

Square.

Wood species

Engineered Redwood frame and sashes with Hardwood Sapele cill.

Engineered Hardwood Red Grandis.

Accoya.

Chain of custody

FSC.

Finish as delivered

Three coats of spray applied water based micro-porous paint.

Three coats of spray applied water based micro-porous stain.

Preservative treatment to wood components

Tecknol Aqua 1410.

Ventilator

Not required.

Concealed with timber head drip.

Trickle ventilator (4600 mm EA) – Surface mounted.

Glazing or infill

Requirements

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.2.

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.0.

24.8 mm Acoustic Double glazed unit comprising 6.8 mm Sound Control Laminate / 14 mm Argon/ 4 mm Tough Low E 1.2.

24.8 mm Acoustic Double glazed unit comprising 8.8 mm Sound Control Laminate / 10 mm Krypton/ 6 mm Tough Low E 1.0.

27.6 mm Enhanced Acoustic Double glass unit comprising 10.8 mm Sound Control Laminate / 10 mm Krypton / 6.8 mm Sound Control Laminate Low E 1.0.

14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0.

16.8 mm Double glass unit comprising 6.8 mm Laminate / 6 mm Krypton / 4 mm Tough Low E 1.0.

Single glass 4 mm Toughened.

Single glass 6 mm Toughened.

Single Glass 6.8 mm Sound Control Laminate.

Single Glass 4.5 mm Goetheglas Restoration Glass.

Manufacturer guidance

Hardware

Polished brass casement handle.

Polished chrome casement handle.

Satin chrome casement handle.

Oil Rubbed Bronze casement handle.

Antique Brass casement handle.

Satin Nickel casement handle.

Aged Brass Casement handle.

Satin Brass casement handle.

Light Antique Brass casement handle.
